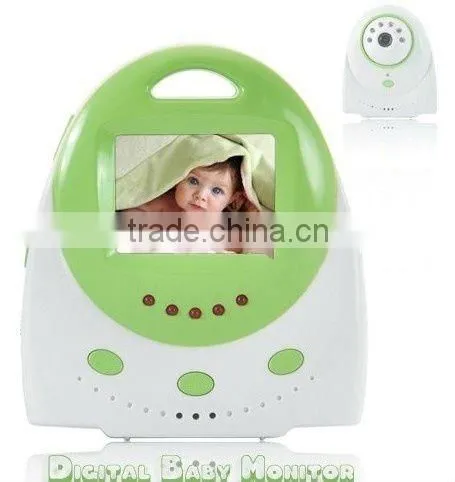

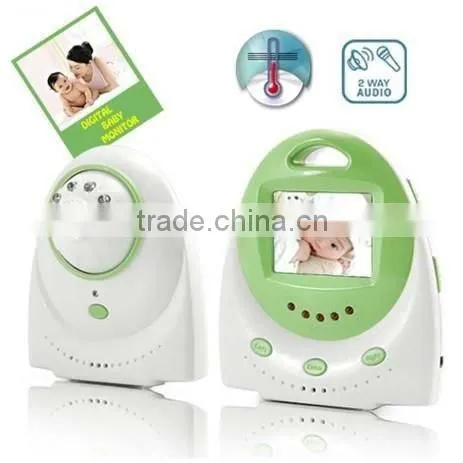

2.5 Inch Wireless Baby Video Monitor

2.5 Inch Wireless Baby Video Monitor thumbnail-1
2.5 Inch Wireless Baby Video Monitor photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OEM
Model Number:
HY-825N
Contact Supplier Request Quote Chat Now
Shenzhen HYCO Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name OEM
Model Number HY-825N
LCD Size 2.5 inch

Specifications

1. 2.4 inch Color TFT Display
2. Two-way intercom
3. Sleep music play
4. Lens can be manually move up and down

Features:
1. 2.4″ inch Color TFT LCD Display with 320 x 240 Resolutions
2. 300 k Pixels (VGA) for Camera
3. Two-way intercom: Built-in microphone and speaker in both Camera and Receiver for audio and video monitoring
4. Auto sleep mode
5. Voice control (VOX): When the camera detect the sound in baby room, the LCD screen will be automatically turned on
6. Clock setting
7. Temperature Display
8. Temperature Alarm
9. Lens can be manually move up and down
10. 2.4 GHz Transmission Frequency
11. 4 Channels, support up to 4 cameras for one receiver
12. Automatic Channel Scan
13. Distance: 150 ~ 200 m without block
14. Infrared Night Vision
15. Connection to TV for monitoring with AV cable
16. Dual power supply (AC power and 4 AAA Batteries in both receiver and monitor)
17. Power Strength Indicator
18. 6 Levels Signal Strength Indicator
19. Support music player with 12 music looping

2.5 inch Wireless baby video monitor2.5 inch Wireless baby video monitor2.5 inch Wireless baby video monitor



2.5 inch Wireless baby video monitor



2.5 inch Wireless baby video monitor

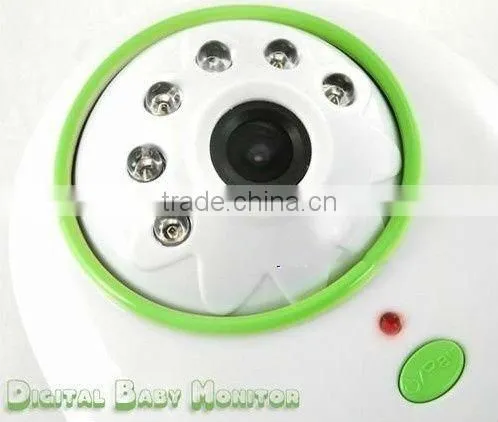

Camera
Camera Resolution:300 k (VGA)
Image Sensor: 1 / 3 inch CMOS
Lens Focal length:2.8 mm
Angle:  48 ~ 55 degrees
Frame Rate:15 ~ 25 fps (frames per second) (higher frames rate when signal is stronger)
Voice Control (VOX):Switch on automatically when there is voice
Audio Sampling Rate:16 K, 8 bit
Audio Frequency Response:120 Hz ~ 3 kHz
Antenna:  Built-in Antenna
Power: 6 V (4 x 1.5 V AAA Battery, not included)
5 V 500 MA (AC adapter) Ripple:≤ 20 MV
Current: 300 mA max (Voice)
Work Current for Auto Sleep: 35 mA (once every 0.5s)
Size:94 (L) x 113 (W) x 60 (D) mm (3.71′ x 4.45′ x 2.36′ inch)
Weight: 126 g (4.44 oz)



Receiver
LCD Size: 2.5 inch 320 x 240 RGB Color LCD
Audio Sampling Rate:16 K, 8 bit
Signal Strength Indicator: 6 Levels
Volume Control: 10 Levels
Music Player:Yes
Temperature Alarm:< 10 °C or > 36 °C
VOX Power:   -60 dB @ Mic Input
Total Harmonic Distortion:< 5%
Signal-to-noise Ratio (SNR):46 dB
Receiving Sensitivity: -96 dBm @ BER=1e-3
Speaker:0.25 W
Night Vision Range:2 ~ 3 m (6.56 ~9.84 feet)
Power:6 V (4 x 1.5 V AAA Battery, not included)
5 V 500 MA (AC adapter) Ripple:≤ 20 MV
Work Current:300 mA max (Video + Audio)
Work Current for Auto Sleep:20 mA (once every 0.5s)
Operating Humidity: 20 ~ 95 %
Operating Temperature Range:0 ~ 38 °C (32 ~ 100.4 °F)
Size:101 (L) x 119 (W) x 45 (D) mm (3.98′ x 4.69′ x 1.77′ inch)
Weight:131 g (4.62 oz)



Item Includes:
2.4 GHz Wireless Camera X 1
2.4 GHz Wireless Receiver X 1
Adapter for Camera X 1
Adapter for Receiver  X 1
AV Cable for TV X 1
English Instruction Manual X 1



package Size & Weight:
Dimensions:  320*180*75mm
Total weight :  640g
