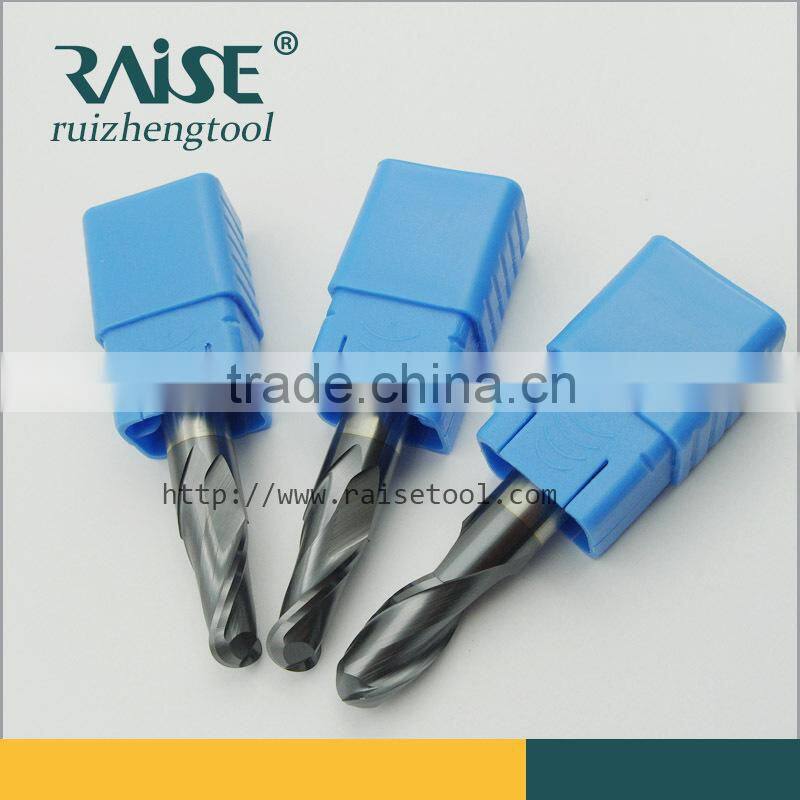

tungsten ball end mill(Double Flutes Japan Spiral Ball 2 flute End Mills)

FOB Price

USD $3 - $90 / Piece

2 Pieces(Min.Order)

Supply Ability 3000 Piece / Pieces per Month
Port Shanghai or shenzhen
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	Raise
Model Number	B65	Material	Carbide
Diameter	4mm~20mm	Type	End Mill
Coating	TiAIN	Overall Length	50mm~100mm

Product Description

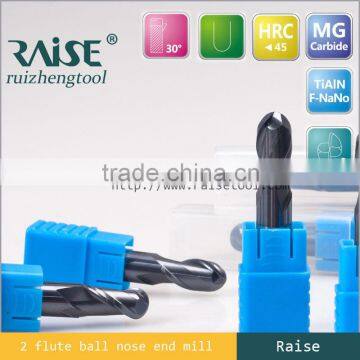

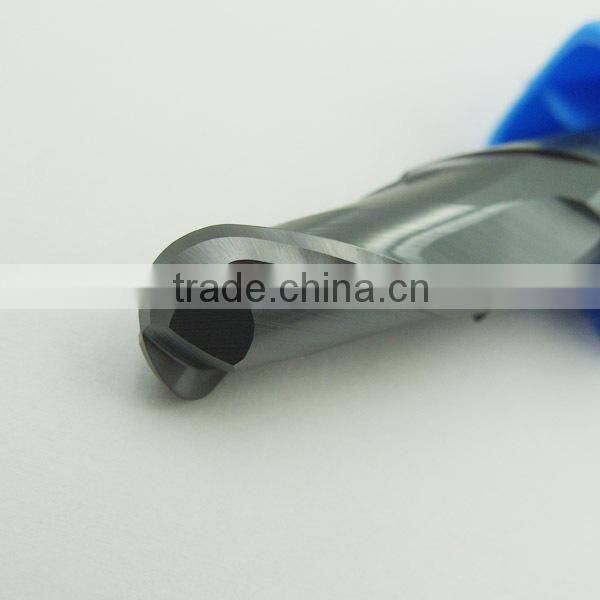

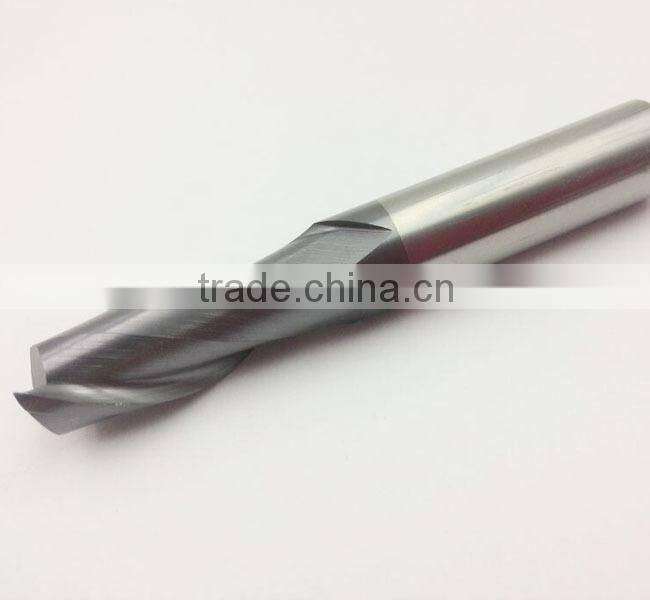

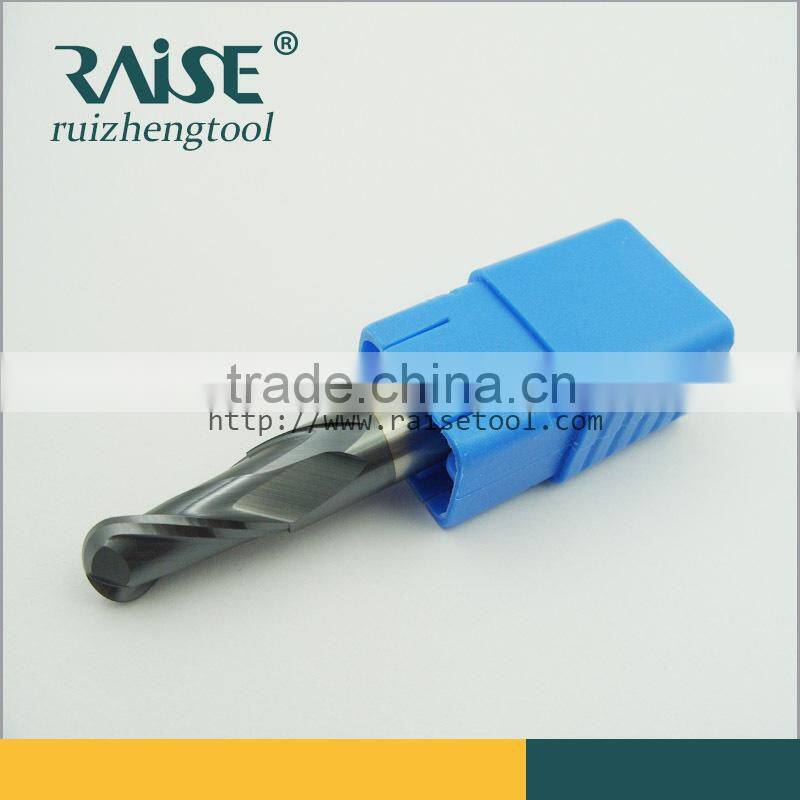

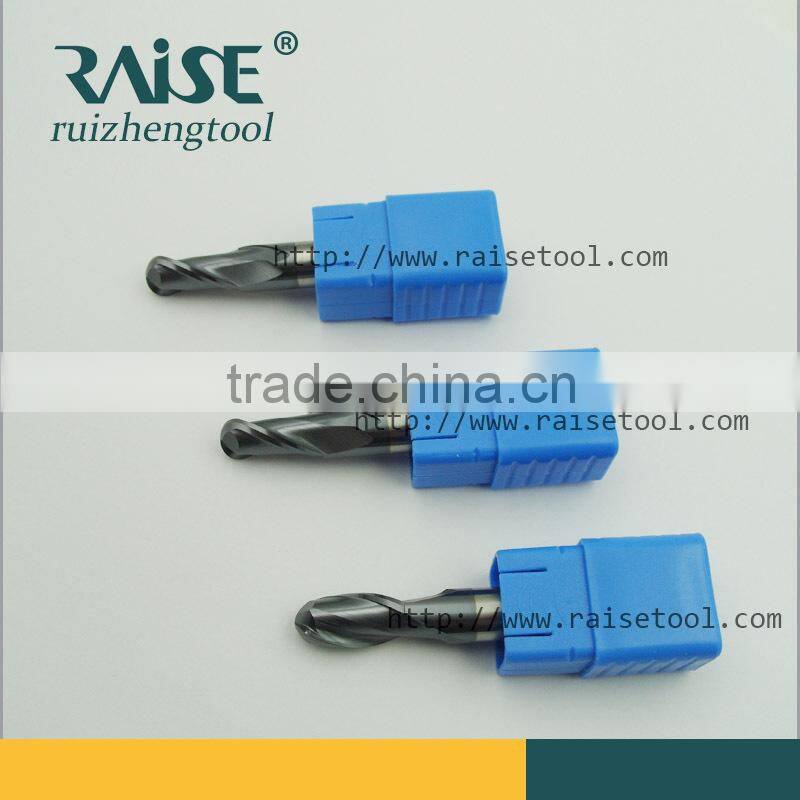

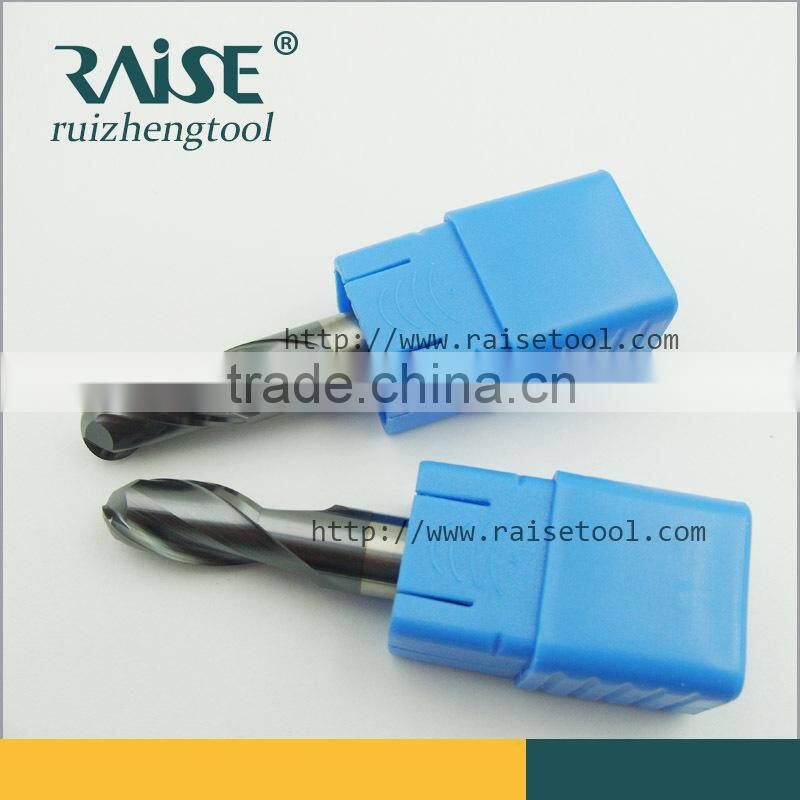

tungsten ball end mill( Double Flutes japan Spiral Ball 2 flute End Mills )

Type:

2 Flute CNC Double Flutes japan Spiral Ball 2 flute End Mills

Features:

1. Coating witn TIALN Can Cutting Harden materiel, 3 times Durable than Carbide.

2. has good milling and cutting performance, ensure the high efficiency of the work.

3. sufficient bending strength and wear resistance, slot milling, hole and the edge of the board, the surface is clean, neat, no glitches.

4. high strength, resistance to bending, breakage resistance, and have excellent physical properties, long tool life.

5. tool type, suitable for the needs of all aspects of the milling.

Specification:

Quality:

all our manufactured parts are detected by advanced Zoller instrument on the knife.

Appliction:

suitable for processing aluminum alloy,cast iron,copper,carbon steel,stainless steel,ect.

Double Flutes japan Spiral Ball 2 flute End Mills

Packaging & Shipping

1,One plastic pipe pack one piece 10 pieces per group

2,Put the good encased with air bubble paper into the carton

3,Other packing will be accept to meet your requirement

Company Information

Zhangjiagang Ruizheng Tool Co,.Ltd is a professional tungsten carbide manufacturer,which integrates research&development,production,marketing and services,specializing in lots of different CNC end milling cutters,solid carbide circular saw blade slitting cutters,slitting cutters,ect.

We can produce all kinds of CNC end milling cutters,such as square end mills,ball nose end mills,square end mills for stainless steel,square end mills for aluminum,roughing end mills,corner radius end mills,spot drills,center drills,straight shank reamers,taper end mills.

Our advantages:

1,Over 5 years experience

2,Excellent quality with competitive price

3,Fast and punctual delivery

4,Good reputation and credit rating

5,High abrasive resistance and bending strength

If you need our quotation pls send e-mail to me ,I will reply to you asap.

We would like to take this opportunity to establish business relationship with you.

Waiting for you...

Tips

If you are a green hand ,pls look at the following details about our products.

End Mills

End mills are the primary cutting tools used in a vertical mill such as the mini-mills we are concerned with. Like drills, they come in a wide variety of styles and quality levels. The most common ones you will need for getting started are 2-flute and 4-flute end mils. You can buy them individually as needed, or in sets.

Here's a picture showing a variety of end mills:

The gold-colored mills have a very thin Titanium Nitrate (TiN, not tin) coating which helps to prevent chips from welding to the mill surface. The ball end mill has a round tip, for milling grooves with a semi-circular cross-section such as you might use for a bearing race. It is an example of some of the more specialized types of mill available.

Mills are also available in sets of 10 or 20 such as shown below. Import quality sets on sale range in price from around $20 for a set of 10 to around $50-$60 for a set of 20 TiN coated single-end mills.

If you are just getting started, a set such as that on the left would be a good set to go with. You might want to also buy a few individual 2-flute mills just to compare the difference.

Shank Size

The shank is the smooth portion of the mill shaft above (or between, in the case of a double-ended mill) the cutting edges. Mills of different diameters within a range have common shank sizes but shank sizes vary among larger and smaller mills. For example, a 5/16" and a 3/8" mill both have a 3/8" diameter shank, while 1/2" and 7/16" mills have a 1/2" shank. This is important to know, since you will need the appropriate sized collet or end mill adaptor to match the shank size of the mill. The mini-mill comes with 3/8" and 1/2" collets, but you will eventually need 5/8" and 3/4" collets and/or end mill adaptors to hold mills larger than 1/2".

2-Flute Versus 4-Flute

2-Flute mills are generally used for cutting slots or grooves, while 4-flute mills are more often used for surface milling, using the end of the mill. In practice, I have found that 4-flute mills will do most of what of a 2-flute mill can do, but not vice-versa. But each type is best for certain operations.

Here are some interesting comments :

What is the difference between 4 flute and 2 flute end mills? Is one better for Aluminum?

A 2 flute cutter (or slot mill) is designed for "plunge" milling, ie you can plunge the mill directly into the work. If you look at the business end of the cutter, you will see that the two blades are of unequal length, one of the blades goes right across the middle. This allows the cutter to mill directly under it. It can be used to cut vertically or horizontally, but the horizontal cut is not likely to be as good as the 4 flute cutter. The 4 flute cutter (or end mill)is not designed to be "plunged". Again, look at the cutters and you will find that they are all the same length, but there is a hole in the middle where nothing can be milled. This type of cutter can only be used to mill in a horizontal direction. Graham

Um... That's (sort of) the difference between center cutting and non-center cutting, but not really between 2 and 4 flute end mills. Some 4 flute end mills are center cutting (usually two flutes meet in the middle and two don't). And, though I've never seen one, there's no reason a 2 flute end mill couldn't be non-center cutting. (Never saw a end mill with one "blade" longer than the other either... Not sure what that's about.) The real difference has more to do with feeds, finish and such. Bascially a cutters RPM is based on its composition and what you're cutting with it. So how much is taken off per flute is, more or less, a "fixed" rate. How fast you can take off how much material is a function of how many flutes you have. The fewer flutes, the slower the feed must be. The more flutes, the faster the feeds can be. Also... I read a bit a while back that explained how 2 flute end mills were better for slotting and 4 flute end mills were better for finishing. The former had to do with the fact that the 2 flute cutter bites into both walls at the same time and, when cutting to the front, cannot cut the sides. Conversely a 4 flute end mill will cut both the front and sides at the same time and the front cut will cause the cutter to flex, varying the depth of the side cuts making the finish rougher. Don't claim to understand why a 4 flute cutter would give a beter finish unless it's simply because it's stiffer...? As for aluminum... Though "regular" end mills will work with aluminum, there are end mills specialy made for aluminum. "High helix", I think they're called. They claim to produce a better finish. Haven't messed with them much myself. But I'm heading that way for some finishing work. I've only ever seen 2 flute versions of them. I'd love to find some 4 flute versions so I could increase my feeds...

Single-end Versus Double End

Double end mills are somewhat less expensive than single end since you get two cutting ends on the same tool. I prefer single end mills since one end of a double end mill sometimes becomes dull or damaged, but you lose track of that fact, since you are keeping it around because of the 'good' end. Then you end up using the 'bad' end by mistake and messing up your project. I suppose I could grind off the 'bad' end to avoid this scenario. Another reason I like single-end mills is that the mill sometimes becomes jammed in an end-mill adaptor and must be driven out using a soft metal rod. This operation is likely to damage the top end of a double-end mill.

FAQ

Q1: What kinds of materials you have?

Suppling material are carbide,high-speed steel.

Q2:What's the transportation you use?

Fast express is first choice.

Other transportation is available,please contact us.

Q3:How many pieces of your MOQ?

MOQ is 2 pcs each model.

The more quantity the lower unit price.

Q4: What's your after-sales service?

After-sales services is sharpen and refurbish for some model products only. The products were weard after process.

Q5: Do you have other service?

Customization is welcome.

Q6:How’s your payment term, Do you accept paypal for small order?

You can choose bank or paypal if transfer to us, which depends on your convenient.

Our Services

We will provide the best before and after sales service.

Small orders are available.

We products have good quality with reasonable price.

The more products you order,the price will be cheaper.

If you have any questions about our products,pls contact us at any time.

We will do my best to solve your problems.

...
