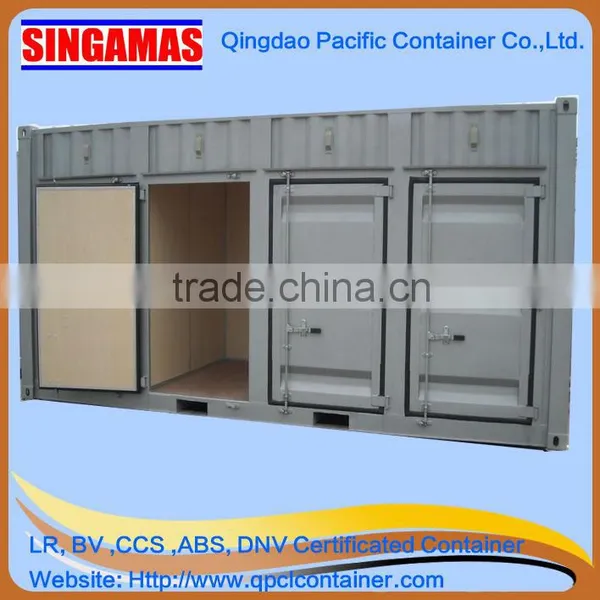

20ft/20dv/20HC/40GP/20GP ISO1496 steel door side open storage container
- 10000 Unit / Units per Month
- Qingdao
- T/T
- 20ft waste container used for city waste transportion
- 48ft open top waste container used for city waste transportion
- 20ft light steel prefabricated container house
- 20feet container office workhouse
- Durable Storage Container / Prefab Storage Containers / Military Storage Containers / Workshop Storage Container
- fashion desigh Australia standard extra wide container house with washroom
Product Details
Type: | Dry Container | Length (feet): | Other, 20' | Certification: | CSC |
Capacity: | 32cubic m | External Dimensions(l x W x H)(mm): | 6058*2438*2591 | Internal Dimensions(l x W x H)(mm): | 5898*2352*2393 |
Place of Origin: | Shandong, China | Brand Name: | Singamas | Model Number: | 20feet |
Product Description
Specifications
All steel parts of the container Auto shot blasting to SA2.5standardMost of the weldings are auto welding insure the quatlity
1.1 Operational Environment
The container is designed and manufactured for the carriage of general cargo by marine, road, and rail. It is designed to maintain its structural and weathertight integrity within a temperature range of -30ºC to 80ºC.
1.2 Regulations and Standards
The container will conform to and satisfy the following standards.
1.2.1 ISO/TC-104
All to meet series 1 freight containers set forth.
ISO 830 ---------Freight containers-Terminology.
ISO 668----------Series 1 freight containers-Classification, external dimensions and ratings.
ISO 6346 --------Freight containers-Coding, identification and marking.
ISO 1161 --------Series 1 freight containers-Corner castings-specification.
ISO 1496-1-------Series 1 freight containers-Specification and testing-
Part 1: General cargo containers
1.2.2 T.I.R. Requirements and Certifications
The container shall comply with the customs convention of containers, 1972 and all subsequent revisions to date and will be identified with appropriate approval plates and markings.
1.2.3 Timber Component Treatment and Certification
All exposed timber components are treated with an Australian government approved insecticide and the container will be such identified with appropriate immunization plate.
1.2.4 U.I.C. Registration
The container will be registered and comply with the International Union of Railways (UIC) code 592-1 OR and 592-2 OR.
1.2.5 CSC Requirements
The container will comply with the rules set forth in the International Convention for Safe Containers and will be so identified with a plate.
1.2.6 Classification Society
The container will be certified by Classification Society(BV, GL, LR, ABS, or CCS)in design and individually inspected during its production.
1.3 Handling
The container will be constructed to be handled under the following conditions without distortion or effect on its structural integrity:
A. Lifting full by its top corner castings by means of spreaders
B. Lifting full by its bottom corner castings by means of fitting at a sling angle of 45 degrees.
C. Lifting full or empty by forklift at its forklift pocket.
1.4 Transportation
The container will be constructed to be suitable for transportation in normal operating conditions by modes of:
A. Marine - on deck or in cell guided by vertical or diagonal lashings
B. Rail - on flat or container car secured at its bottom corner castings
C. Road - on flat or chassis secured at its bottom corner castings
2. DIMENSIONS AND RATINGS
2.1 Dimension
Title | 20’ | ||
| Length | 6,058 | (0, -6) |
External (mm) | Width | 2,438 | (0, -5) |
Height | 2,896 | (0, -5) | |
Internal (mm) | Length | 5,898 | (0, -6) |
Width | 2,352 | (0, -5) | |
Height | 2,698 | (0, -5) |
2.2 Diagonal Difference
Diagonal tolerance of front and rear frames should be less than 10 MM.
Diagonal tolerance of side and roof panels should be less than 13 MM.
2.3 Internal Capacity
33.2 CU.M. (1,173 CU.FT.)
2.4 Ratings
Title | kg | lbs |
Max. Gross Weight | 30,480 | 67,200 |
Tare Weight(±2%) | 2,320 | 5110 |
Max. Payload | 28,160 | 62,090 |
2.5 Corner Protrusions
2.5.1 The faces of the bottom corner castings protrude from lower faces of all transverse members in the
base of the container by 17 MM (+0.5, -6.0 MM).
2.5.2 The upper faces of top corner castings protrude from upper faces of the highest point of the roof by 6 MM.
2.5.3 The outer side faces of corner castings protrude from outside faces of corner posts by 3 MM.
2.5.4 Under 1.8 x max. gross weight no part of the base will protrude more than 6 MM below the bottom corner castings.
3. MATERIAL AND CONSTRUCTION
3.1 General
The container is mainly constructed with steel frames, corrugated panels welded by CO2 shielded Arc welding. All welds of the exterior including the base frames are continuous with full penetration. Wooden floor is fixed to the cross members by self-tapping screws. All crevices will be sealed with elastic sealing compound.
3.2 Materials
The main constructional materials are shown in Appendix A of the specification.
3.3 Corner Castings
All corner castings used will comply with ISO/1161 standard.
Company Profile
Our company was founded in 2003, belonging to Singamas Holding limited (Singamas Group), one of the biggest container manufacturers in the world. We boast 250,000 square meters and the area of structure is 50,000 square meters. We can produce 200,000 TEU of ISO containers per year.
Honesty is our policy and quality is our life. We have been ISO9001:2008 accredited and have built great reputations among the customers for outstanding quality in the industry.
Our main products include bulk container, open top container and some special containers such as storage container, generator container, equipment container, offshore container, military container, gas pack container and some house containers.
We provide high quality ISO containers with CSC safety approvals for many equipment packaging solutions. We structurally design for a wide variety of heavy duty applications and build to withstand the most demanding of environment. Most of the containers are designed and constructed in accordance with ISO1496 Series 1 Freight Containers and ISO668 Classification.
We provide design, final testing and approval including full CSC (Convention of Safety Container) certification. All critical welds and fabrications are subject to MPI and NDT (Non-destructive testing).
