High Quality,high Efficiency,low Pice Solar Water Heater With CE,ISO

High Quality,high Efficiency,low Pice Solar Water Heater With CE,ISO thumbnail-1
High Quality,high Efficiency,low Pice Solar Water Heater With CE,ISO photo-1
US$ 150 - 170 MOQ: 5 Units
Key Specifications
Get Latest Price
Type:
Evacuated Tube
Pressure:
Unpressurized
Circulation Type:
Direct / Open Loop (Active)
Contact Supplier Request Quote Chat Now
Ningbo Zihong Solar Energy Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Evacuated Tube
Pressure Unpressurized
Circulation Type Direct / Open Loop (Active)
Heating System Batch / ICS (Passive)
Connection Type Direct-Plug
Installation Freestanding
Housing Material Stainless Steel
Certification CE, Other, CE, ISO
Capacity 150
Place of Origin Zhejiang, China
Brand Name zh
Model Number XSL-SP001

Specifications

Stainless steel,
5 years warranty.
low cost,Intelligent, automatic

Specifications

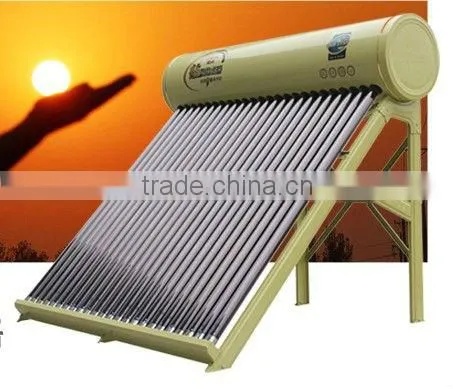

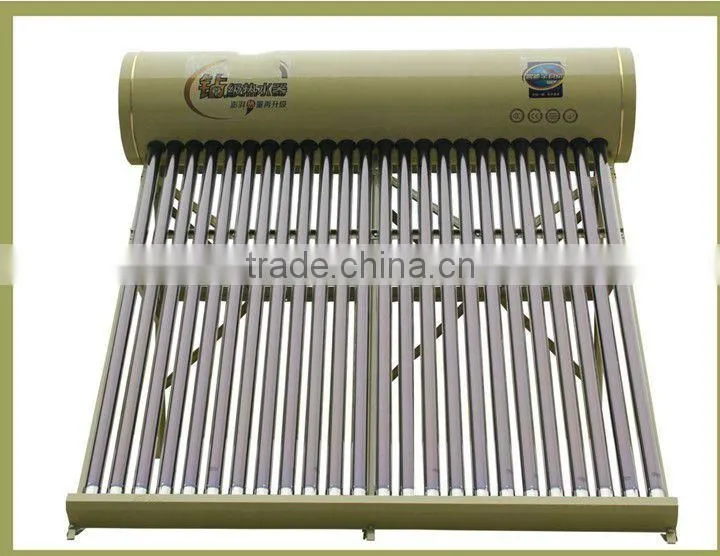

Solar Water Heater
1. CCC,CE,ISO Certificated
2. SUS 304 Food grade tank
3. Get hot water of 85 degree
4. Warranty:5years

Solar Water Heater



Characteristics

1. It takes advantage of the tap water’s pressure. More pressure more comfortable.

2. The water is heated in short time and meeting your demand for hot water.

3. It can produce more hot water than the general types with continuous hot water coming.





Material

Inner tank: Imported stainless steel (SUS304/2B), 0.4mm thickness

Outer tank: PVDF Coated Galvanized steel alloy,0.4mm thickness

Bracket: Galvanized steel alloy, 1.5mm thickness

Heat insulation layer: Imported polyurethane (Bayer, Germany), 50mm thickness

Working temperature: 99 Celsius degree

Working pressure: 0.005Mpa (0.05 bars)

Accessory:Optional assistant tank and electrical heater

Warranty: 1 year for electric parts/5 Years for the full system /15 Years for the vacuum tube



Remark

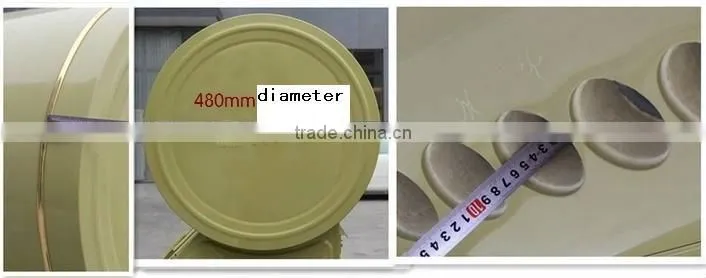

1. Diameter of the tank: 360/460mm

2. Insulation thickness: 50mm

3. Vent connection: 1/2"

4. Electric heater connection: 47mm

5. Cold water inlet: 1/2"

6. Hot water outlet:3/4"

7. Installation angel: 30/45

high quality,high efficiency,low pice solar water heater with CE,ISOhigh quality,high efficiency,low pice solar water heater with CE,ISOhigh quality,high efficiency,low pice solar water heater with CE,ISOhigh quality,high efficiency,low pice solar water heater with CE,ISOhigh quality,high efficiency,low pice solar water heater with CE,ISOhigh quality,high efficiency,low pice solar water heater with CE,ISO

 high quality,high efficiency,low pice solar water heater with CE,ISOhigh quality,high efficiency,low pice solar water heater with CE,ISO

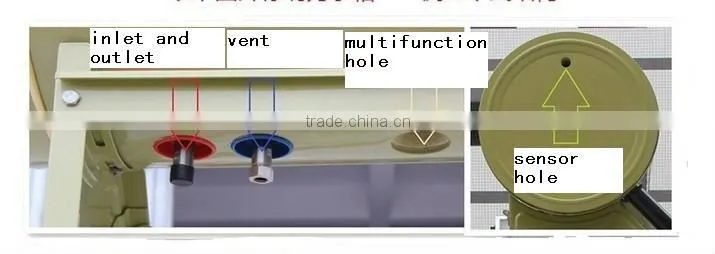

Special structure of the tank :

1, Inlet and outlet under the tank, improve water use efficiency

2, Lower exhaust structure, reduce heat loss, locak heat more effectively

3, the Bottom,design multifunction hole, can install auxiliary heating ,can also be processed on a regular basis the dirt tank

4, Digital sensors placed on the side, accurate perception level and water temperature, solar water heaters to achieve fully automated intelligent

high quality,high efficiency,low pice solar water heater with CE,ISO

high quality,high efficiency,low pice solar water heater with CE,ISO
