Home > Products > Solar A/C Trinity System > Convenient & solar air conditioner, solar water heater, heat pump
Convenient & solar air conditioner, solar water heater, heat pump
USD $500 - $1,000
/ Unit
1 Unit(Min.Order)
- 200 Unit / Units per Month
- Ningbo
- T/T
You May Like
Product Details
Type: | Evacuated Tube | Pressure: | Pressurized | Circulation Type: | Indirect / Closed Loop (Active) |
Heating System: | Other, solar | Connection Type: | Split | Installation: | Other, on the roof or any place |
Housing Material: | Stainless Steel | Certification: | CE | Capacity: | 260 |
Place of Origin: | Zhejiang, China | Brand Name: | ZH or OEM | Model Number: | CLT-72W |
Product Description
Specifications
energy-saving and eco-friendlycooling and heating
heat water available all year
stainless steel

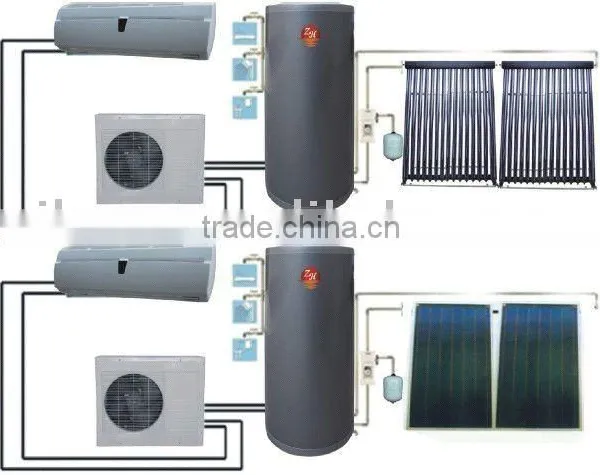

Our trinity system combines solar air conditioner technology, air source heat pump technology and pressured spilt solar heater technology into one system. It supplies cooling and heating air in summer and winter and hot water for all year long,it is energy-saving and eco-friendly.
Trintiy System (Hybrid Solar AC+ air source heat pump+Pressured Solar Water Heater) | ||||||||
Model No. | CLT-35W | CLT-52W | CLT-60W | CLT-72W | CLT-100W | CLT-120W | ||
Power Supply 220-240/380VAC, 1/3PH,50hz | ||||||||
Performance | ||||||||
Capacity | Cooling | Btu/h | 12000 | 18000 | 20000 | 24000 | 36000 | 41000 |
W | 3500 | 5200 | 6000 | 7200 | 10000 | 12000 | ||
Heating | Btu/h | 13000 | 18800 | 22000 | 27000 | 40000 | 46000 | |
W | 3800 | 5500 | 6600 | 7900 | 12000 | 14000 | ||
Water Tank | L | 150 | 260 | 260 | 260 | 300 | 500 | |
Hot Water | L | 280 | 500 | 500 | 500 | 600 | 1000 | |
indoor type | wall mount | wall mount | wall mount | wall mount | duct type | duct type | ||
Air Circulation | m³/h | 550 | 750 | 850 | 1050 | 1700 | 1800 | |
Suitable Area | m² | 15~23 | 20~35 | 25~42 | 30~48 | 42~67 | 50~80 | |
EER | W/W | 3.89 | 3.85 | 3.88 | 3.82 | 3.87 | 3.96 | |
Noise | Indoor | dB(A) | ≤42 | ≤44 | ≤46 | ≤50 | ≤51 | ≤53 |
Outdoor | dB(A) | ≤52 | ≤54 | ≤56 | ≤58 | ≤58 | ≤60 | |
Hot Water Temp | °C | 50~90 | 50~90 | 50~90 | 50~90 | 50~90 | 50~90 | |
Solar Collector | Vacuum Tube | 18*1 | 24*1 | 24*1 | 24*1 | 18*2 | 24*2 | |
Power Consumption | ||||||||
Power Input | Cooling | W | 800~1025 | 1150~1300 | 1350~1560 | 1700~1900 | 2400~2640 | 2900~3150 |
Heating | W | 800~1050 | 1150~1350 | 1350~1590 | 1700~1950 | 2470~2650 | 2900~3180 | |
Rated Current | Cooling | A | 3.64~4.66 | 5.23~5.91 | 6.14~7.09 | 7.73~8.64 | 10.91~11.95 | 13.18~14.32 |
Heating | A | 3.64~4.77 | 5.23~5.96 | 6.14~7.23 | 7.73~8.66 | 10.91~12.05 | 13.18~14.45 |
