welded mesh gabion

Specifications

Professional manufacuture
FeatureEconomic just fill the stone into the gabions and seal it.
ISO9000certificate
Best quality

Gabion baskets

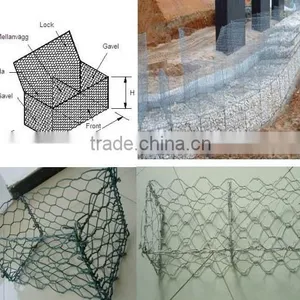

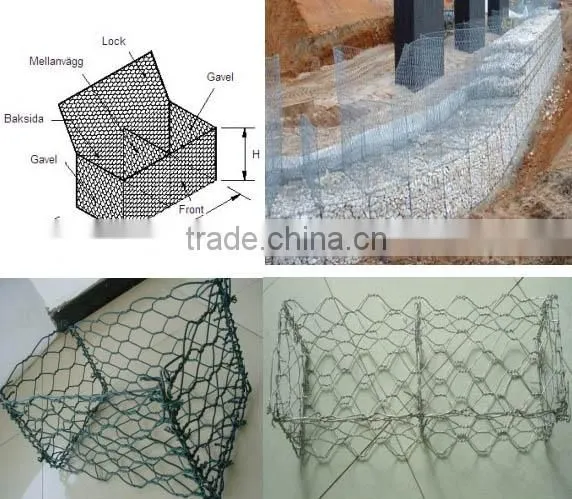

Gabion basket are made of hexagonal galvanized/PVC/Zinc coated double twisted mild steel wire mesh.

Gabion basket shall be supplied in various length,width and heights,in order to strenthen the baskets,all the eages of the structutr shall br selvedged with wire of greater diameter.

Gabion cages

Gabion cages are wire cobtainers made of hexagional wire netting.wire diameter varies with the hexagonal netting.For hexagonal wire netting wirh no PVC coating,the wire diameter ranges from 2.0-4.0mm,for those PVC coated hexagonal eitr netting,the outside diameter ranges from 3-4mm.The wire of the outside diameter gauge thicker than the wire used for hexagonal wire netting.

Feature:Economic just fill the stone into the gabions and seal it.

Simple installation: no specical technology needed

Weather proof under natural destory,corrosion resistant.

No collapse even under big scope of deforming.

Sludge in the stones is good for plant growing.mixed to form a integrity with the natural environment.

Good permeation can prevent the damage by hydrostatic.

Less transport freight,It can be folded for transport and further installation.





Size				Notes	The tolerance
Length(m)	Width(m)	Height(m)	Unit	M2	Length+-3% Width +-5% Weight+-5%
2.0	1	0.3	1	0.6
3.0	1	0.3	2	0.9
4.0	1	0.3	3	1.2
2.0	1	0.5	1	1.0
3.0	1	0.5	2	1.5
4.0	1	0.5	3	2.0
1.0	1	1.0	0	1.0
1.5	1	1.0	0	1.5
2.0	1	1.0	1	2.0
3.0	1	1.0	2	3.0
4.0	1	1.0	3	4.0
