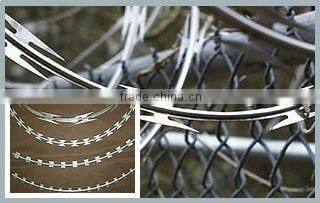

Concertina Razor Barbed Wire

Type

Wire Gauge (SWG)

Barb Distance (cm)

Barb Length (cm)

Electric Galvanized Barbed Wire; Hot-dip zinc plating barbed wire

10# x 12#

7.5-15

1.5-3

12# x 12#

12# x 14#

14# x 14#

14# x 16#

16# x 16#

16# x 18#

PVC coated barbed wire; PE barbed wire

before coating

after coating

7.5-15

1.5-3

1.0mm-3.5mm

1.4mm-4.0mm

BWG11#-20#

BWG8#-17#

SWG11#-20#

SWG8#-17#

PVC PE coating thickness: 0.4mm-0.6mm; different colors or length are available at customers request.

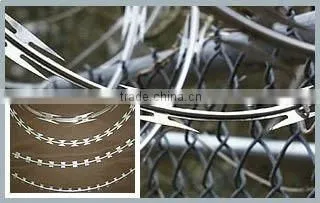

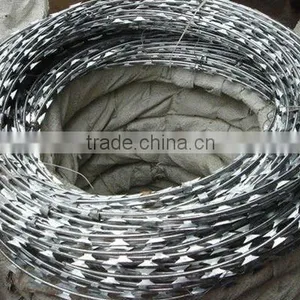

Barbed Razor Wire

Outside Diameter

No.of Loops

Standard Length per Coil

Type

Notes

450mm

33

8M

CBT-65

Single coil

500mm

41

10M

CBT-65

Single coil

700mm

41

10M

CBT-65

Single coil

960mm

53

13M

CBT-65

Single coil

500mm

102

16M

BTO-10.15.22

Cross type

600mm

86

14M

BTO-10.15.22

Cross type

700mm

72

12M

BTO-10.15.22

Cross type

800mm

64

10M

BTO-10.15.22

Cross type

960mm

52

9M

BTO-10.15.22

Cross type
