Help CenterONV Company Easy to Carry Singlr Port Poe Switch Wth 1 sc Port
Related Products
-
ShenZhen ONV Company 6port With 4 Poe Switch Port Hot ProductUS$ 1 - 1,000MOQ: 1 Piece -
ShenZhen Onv-poe31004p(4poe+1uplimk) Hot SaleUS$ 1 - 1,000MOQ: 1 Piece
-
9 Ports 10/100Mbps POE Switch With 8 POE Ports, 8 Port POE Switch, POE Ethernet SwitchUS$ 65 - 102MOQ: 1 Piece
-
24 Ports Poe Switch 4-Port Fast Ethernet PoE Switch Poe Switch+2 SFP Gigabit ComboUS$ 100 - 300MOQ: 1 Piece
-
PoE Switch 24 Port Good Prices Form Shenzhen ONV CompanyUS$ 100 - 300MOQ: 1 Piece
This 10/100M PoE media converter can be use between 10Base-T and 10Base-FL or 100Base-TX cable and 100Base-FX fiber cable for data transmission. It provides stand-alone RJ-45 electrical interface port and supply power to others, and can automatically cross connection with switch and hub network. And feature with link loss diagnosis, electrical port link diagnosis and optical port link diagnosis, dynamic data transmission, full-duplex/half-duplex, speed indicator. Also it can be realize the interconnection between motherboard servers, Repeaters, hubs, switches terminal.
Plug and play design makes easy installation, no on-site adjustment, all the light, electrical interface port is in line with international standards. It can extend the network transmission up to 25km. This dual fiber PoE media converter is suitable for Bad industrial environment or high requirements for lightning protection, intelligent transportation supervisory system (ITS) and safe city, High-speed way supervisory/Tele-communication system, IP network camera, security surveillance system for large corporations, multi-function network system.
Product features
- One 10/100Mbps RJ45 interface and one fiber SC interface.
- Ethernet Interface, Power Input port 2 lightning protection.
- Data provided over pairs over 1/2and 3/6 ,Power over spare pairs4/5(+) and 7/8 (-)
- Conforming to IEEE802.3af standard
- Natural Cooling, Compact Size, Less Heat.
- Anti-lightning, anti-surge function
- Fibre interface is single mode dual fibre SC by default, other type optional.
Target Industries
- HD monitor transmission and power supply
- Wireless AP layout transmission and power supply
- Network telephone transmission , intelligent house and home system
- Intelligent transportation supervisory system (ITS)
- High-speed Way supervisory/Tele-Communication System
- Security protection system, TV medical treatment
- Long-distance Muti-media Schooling, Campus monitoring
- Long-distance broadcast television transmission system
- High-building Security Protection, Military Tele-Com projects
Product Name |
100M Single Port Dual Fiber PoE Media Converter |
Product Model |
POE31001PF |
Interface |
1x copper cable RJ45 port +1x PoE port |
Transmission Distance |
20km |
Fiber Description |
dual fiber |
Wavelength |
1310/1550nm |
Protocol |
IEEE 802.3i IEEE 802.3x Flow Control |
LED Indicator |
System, Data Link, PoE working status, Rate Status, Full duplex/half duplex |
Power Supply |
Total power: 15.4W |

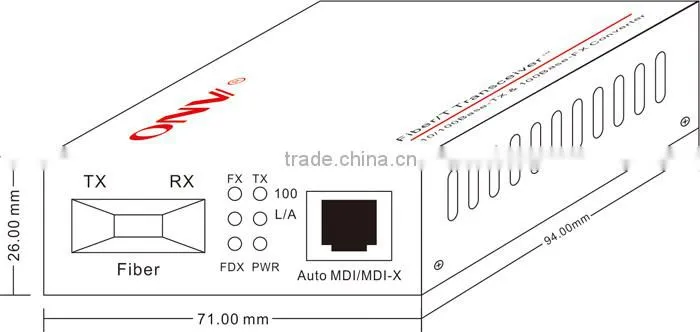

Dimension |
Dimension: 71x94x26mm |
Working Environment |
Working Temperature:0°~ 55°C Storage Temperature: -20°~ 75°C Working Humidity: 10%~90%, non-condensing Storage Humidity: 10%~95%, non-condensing Operational Altitude: 3000m (10,000ft) Storage Altitude: 3000m (10,000ft) |
Radiation |
CE mark, commercial FCC Part 15 Class B |
Safety |
CE mark, commercial CE/LVD EN60950, RoHS |
Warranty |
1 year warranty ( 2 years warranty for power adapter) |
Order Information
Product Model: POE31001PF
Product Description: Single port 10/100M dual fiber Ethernet PoE media converter. Compatible with IEEE802.3af standard (15.4W); power input is AC100V~240V, external power supply (can be customized different power sockets for different countries)
Order Note: Default PoE power supply is end-span (1/2,3/6 line pair), mid-span(4/5, 7/8 line pair) PoE Power supply can be customized
Package List |
Dual Fiber PoE Media Converter ( POE31001PF ) |
|
Power Adapter |
|
User Guide |
|
Warranty Card |
If you still have problen about our product or you want know more information about it, we are glad to serve you anytime.
Tel:+8613886951478
Skype:tommy900525
