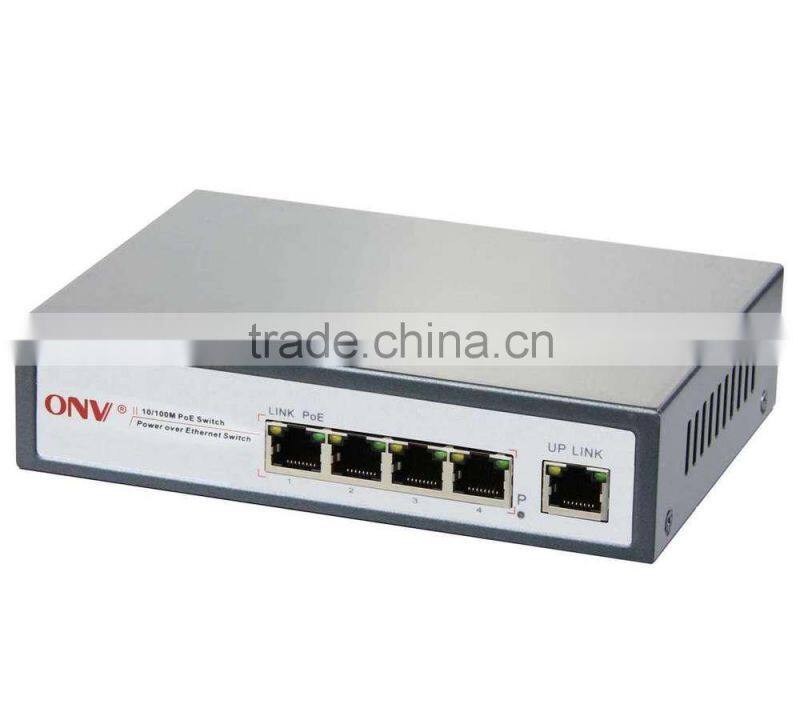

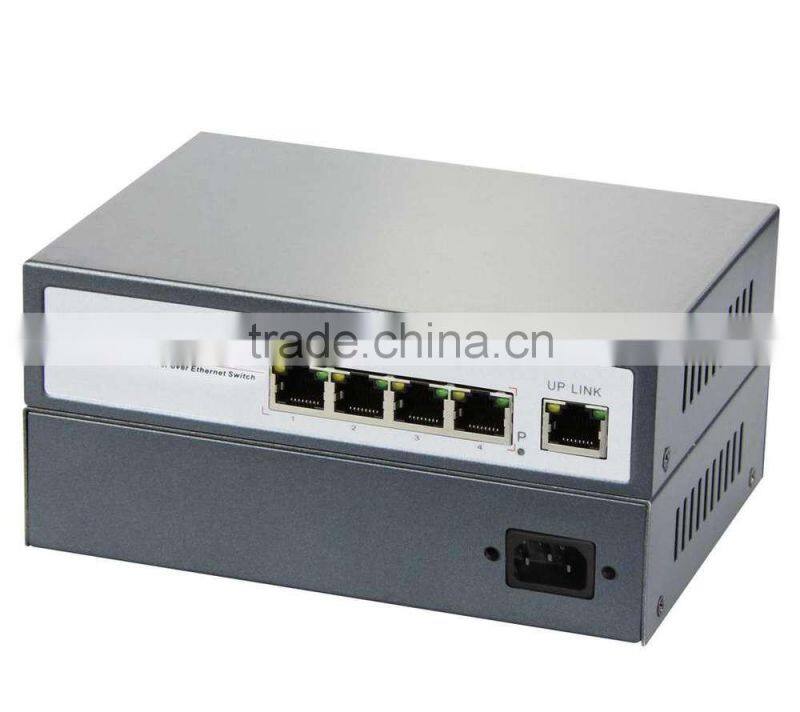

Network Switch Mini 10/100M Ethernet POE Switch 4 Port

Network Switch Mini 10/100M Ethernet POE Switch 4 Port thumbnail-1
Network Switch Mini 10/100M Ethernet POE Switch 4 Port thumbnail-2
Network Switch Mini 10/100M Ethernet POE Switch 4 Port thumbnail-3
Network Switch Mini 10/100M Ethernet POE Switch 4 Port photo-1
Network Switch Mini 10/100M Ethernet POE Switch 4 Port photo-2
Network Switch Mini 10/100M Ethernet POE Switch 4 Port photo-3
US$ 18 - 24 MOQ: 1 Piece
Key Specifications
Get Latest Price
Products Status:
Stock
Ports:
Other, 4
Transmission Rate:
10/100Mbps
Contact Supplier Request Quote Chat Now
Optical Network Video Technologies (Shenzhen) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Ports Other, 4
Transmission Rate 10/100Mbps
Function POE
Communication Mode Other, Full-Duplex & Half-Duplex
Certification CE,FCC,RoHS, ISO
Switch Capacity 1.6Gbps.
Brand Name ONV
Model Number POE31004P-N
Place of Origin Guangdong, China

Specifications

* 5 Port PoE Ethernet Switch With 4 Port PoE,
*1 year warranty
*10 yaars factory
*CE,FCC,RoHS

10 / 100M 5 Port PoE Ethernet Switch With 4 Port PoE Hub

Product:POE31004P-N

Feature IEEE 802.3af power on up to 4 ports

Supply power to wireless access points and surveillance cameras over Cat-5 cabling

5x 10/100 Mbps Ports with AutoUplink™

Supports PoE power up to 15.4W for each PoE port

Supports PoE power up to 65W for all PoE ports

Supports PoE IEEE 802.3af compliant PDs

Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode

1K entry MAC address table of the PoE Switch with auto-learning and auto-aging

LED indicators for monitoring power, link, activity and speed

External power adapter supply
Flexible

Choose to plug in up to five Ethernet or Fast Ethernet devices and mix in up to four IEEE802.3af IP-based devices like wireless access points or IP-based network surveillance cameras. Place these IEEE802.3af-compliant devices where they belong – high up on walls and ceiling for maximum coverage – or anywhere else you need them. Power and data are carried over standard Cat 5 cabling.



Order Information Product: POE31004P Type: 5-PORT 10/100 switch with 4-port PoE injector, IEEE 802.3af; PoE Power Output: 15.4Watts per port, Total power consumption: 65Watts Mid-span: Data provided over pairs over 1/2 and 3/6 ,Power over spare pairs4/5(+) and 7/8 (-) End-span: Data and Power provided over 1/2(+), 3/6(-) ,  OPTIOANL

 Network Switch Mini 10/100M Ethernet POE switch 4 portNetwork Switch Mini 10/100M Ethernet POE switch 4 port

Model

Model description

POE31004P

5-PORT 10/100 switch with 4-port PoE, IEEE 802.3af; PoE Power Output: 15.4 Watts per port;  Total power consumption: 65Watts

POE31004P-at

5-PORT 10/100 switch with 4-port PoE+, IEEE 802.3at, PoE Power Output: 25.5Watts Total power consumption:120Watts



Product Name

5-Port PoE Switch with 4 PoE Ports

Module

POE3104P-N

Connector

5x 10/100M copper cable RJ45 ports(all ports support MDI/MDIX) 4x PoE ports

Transfer Mode

Store-And-Forward

Network Medium

10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or more UTP (≤100 meter)

Data transmission distance: 100m

Performance Spec

Bandwidth: 1.6Gbps (non-blocking)

Network Latency (100 to 100M bps): maximum delay less than 20 microseconds

Packet Buffer Memory: 96KB

Address Database Size: 1,000

MTBF: 190,000 hours (about 21 years)

NetworkProtocols and Standards

IEEE 802.3i 10BASET

IEEE 802.3u 100BASETX

IEEE 802.3x Flow Control

IEEE 802.1af DTE Power via MDI

IEEE 802.3af

LED Status

System: power supply

Every Port: connecting, PoE working status

Power

Built-in Power adopter

Maximum PoE power: 65W

PoE port power:15.4 W(1~4 port)

Power input: AC100-240V 50/60Hz; (every country use a custom power plug)

Dimension/Weight

Dimensions: 118x85x27mm, 0.24kg

Working Enviroment

Operating Temperature: 0 ° ~ 55 ° C

Storage Temperature: -20 ° ~ 75 ° C

Operating Humidity: 10% ~ 95%, non-condensing

Warranty

1 year warranty





 Network Switch Mini 10/100M Ethernet POE switch 4 port

Network Switch Mini 10/100M Ethernet POE switch 4 port



Network Switch Mini 10/100M Ethernet POE switch 4 port



Network Switch Mini 10/100M Ethernet POE switch 4 port









If you need further info or some other question,pls feel free to contact us

                                                                                 Thanks for your time

                                                                                 Daisy  from ONV Co;Ltd

                                                                  Skype:daisy.huang1321
