4 Port Network Switch Ethernet Poe Switch

4 Port Network Switch Ethernet Poe Switch thumbnail-1
4 Port Network Switch Ethernet Poe Switch thumbnail-2
4 Port Network Switch Ethernet Poe Switch thumbnail-3
4 Port Network Switch Ethernet Poe Switch thumbnail-4

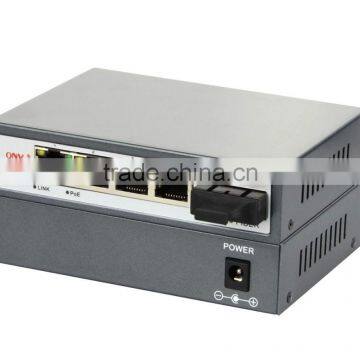

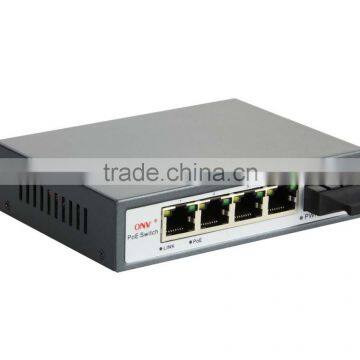

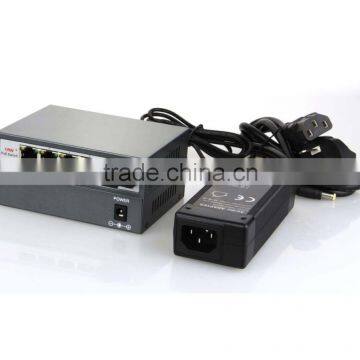

4 Port Network Switch Ethernet Poe Switch photo-1
4 Port Network Switch Ethernet Poe Switch photo-2
4 Port Network Switch Ethernet Poe Switch photo-3
4 Port Network Switch Ethernet Poe Switch photo-4
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Ports:
Other, 5 ports
Transmission Rate:
10/100Mbps
Contact Supplier Request Quote Chat Now
Optical Network Video Technologies (Shenzhen) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Ports Other, 5 ports
Transmission Rate 10/100Mbps
Function POE
Communication Mode Other, Full-Duplex & Half-Duplex
Certification CE,FCC,RoHS, ISO
Switch Capacity 1.6Gbps.
Brand Name ONV
Model Number ONV-POE31004PF
Place of Origin Guangdong, China

Specifications



* 10 / 100m 5 Port PoE Ethernet Switch With 4 Port PoE, 1 Port Fiber
*1 year warranty
*10 yaars factory
*CE,FCC,RoHS

10 / 100m 5 Port PoE Ethernet Switch With 4 Port PoE, 1 Port Fiber

Product:POE31004PF
Type:5-Port 10/100M Switch with 4-Port POE and 1-Port Fiber,Single-mode fiber double,SC fiber interface ,IEEE 802.3af,PoE Power Output:15.4Watts,PoE Budget:60Watts
Power Pin Assignment:Data provided over pairs over 1/2and 3/6 ,Power over spare pairs4/5(+) and 7/8 (-)



Product features

  - IEEE 802.3af power on up to 4 ports
- Supply power to wireless access points and surveillance cameras over Cat-5 cabling
- 4 10/100 Mbps Ports with AutoUplink™
-The 5  port  is optical fiber SC interface of 155 Mbps
- Supports PoE power up to 15.4W for each PoE port
- Supports PoE power up to 53W for all PoE ports
- Supports PoE IEEE 802.3af compliant PDs
- Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
- 1K entry MAC address table of the PoE Switch POE31004P with auto-learning and auto-aging
- LED indicators for monitoring power, link, activity and speed
- External power adapter supply



Product Specification



Product
5-Port 10/100M Switch with 4-Port POE and 1-Port Fiber
Type
POE31004PF
Network Ports
4 10/100Mbps RJ45 PortsAUTO Negotiation/AUTO MDI/MDIX
1 155Mbps SC Ports Single-mode optical fiber
Power Pin Assignment
Data provided over pairs over 1/2and 3/6 ,Power over
spare pairs4/5(+) and 7/8 (-)
PoE Distance
100m
Transmission Method
Store-And-Forward
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
Single-mode optical fiber (Single fiber or double fiber
),maximum 25Km
Performance Specifications
Bandwidth:1.6 Gbps
Network latency:Less than 20 μs for 64-byte frames in store-and-forward mode for 100 Mbps to 100 Mbps transmission
Buffer memory:96 KB embedded memory per unit
Address database size:1,000 media access control (MAC) addresses per system
Addressing:48-bit MAC address
Mean Time Between Failure (MTBF):190,000 hours (~ 21 years)
Acoustic Noise: 0 dB
Network Protocol and Standards
IEEE 802.3i 10BASET
IEEE 802.3u 100BASETX
IEEE 802.3x Flow Control
IEEE 802.1af DTE Power via MDI
IEEE 802.3af
Status LEDs
System: Power, PoE Maximum Power
Per Port: Link, Activity, Speed, PoE Active, PoE Fault
Power Supply
Total Power Consumption: 60 W maximum
PoE Watt budget: 56W
IEEE802.3af Power Consumption: 56 W maximum (Ports 1 – 4)
48VDC, 1.25A power output; plug is localized to country of sale
Physical Specifications
Dimensions (H x W x D):28 x 118 x 85mm
Weight:0.34kg
Environmental Specifications
Operating temperature: 0 to 55°C
Storage temperature: -20 to 75°C
Operating humidity: 90% maximum relative humidity, non-condensing
Storage humidity: 95% maximum relative humidity, non-condensing
Operating altitude: 10,000 ft (3,000 m) maximum
Storage altitude: 10,000 ft (3,000 m) maximum
Electromagnetic Emissions
CE mark, commercial
FCC Part 15 Class B
VCCI Class B
EN 55022 (CISPR 22), Class B
Safety
CE Mark ,commercial
CE/LVD EN60950
Warranty
1 years for PoE Switch
2 years for power supply

4 port network Switch Ethernet poe switch



Target Industrial



-HD monitor transmission and power supply
-Wireless AP layout transmission and power supply
-Network telephone transmission , intelligent house and home
system
-Intelligent transportation supervisory system(ITS)
- High-speed Way supervisory/Tele-Communication System
- Security protection system, TV medical treatment
- Long-distance Muti-media Schooling, Campus monitoring
- Long-distance broadcast television transmission system
- High-building Security Protection, Military Tele-Com projects



Factory pictures

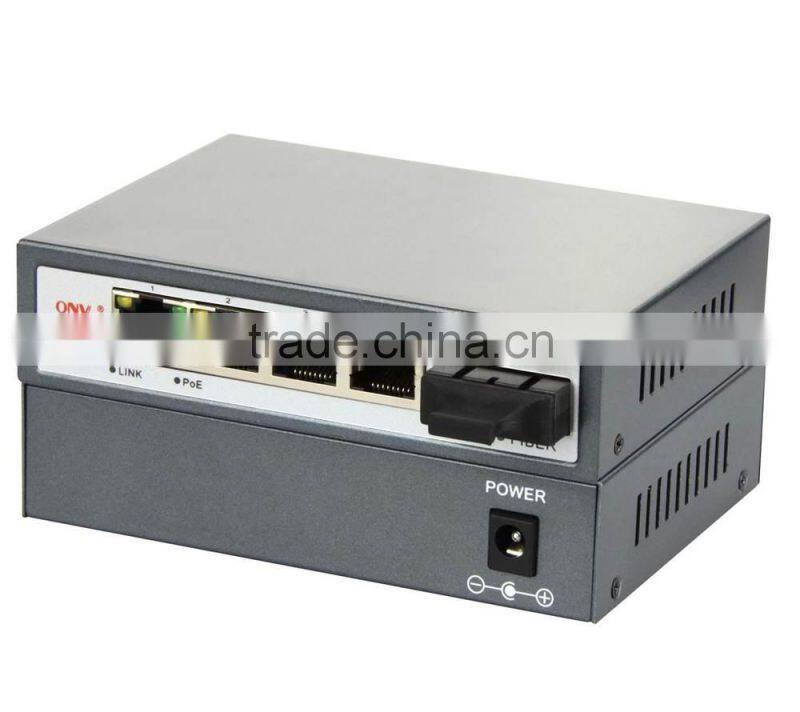

4 port network Switch Ethernet poe switch

4 port network Switch Ethernet poe switch4 port network Switch Ethernet poe switch





If you need further info or some other question,pls feel free to contact us



                                                   Thanks for your time

                                                    Skype: daisy.huang1321

                                                    Daisy  from ONV Co;Ltd
