Specifications
Hot selling 24 poe switch
1,CE,FCC,Rohs certificate
2,OEM service
3,flexible cooperating
4,Manufacturer price
24 Port 10/100mbps Poe Switch+2 SFP Gigabit Combo
To fulfill the demand of sufficient PoE power for network applications with 10/100Mbps wire speed transmission, ONV introduces a new member in the IEEE802.3af PoE Fast Ethernet Switch family – POE31024P, the 24-Port 10/100Mbps IEEE802.3af Power over Ethernet Switch with 400 Watts PoE budget. The 24 Fast Ethernet ports integrated with IEEE802.3af PoE injector function are able to drive at least 16 x IEEE 802.3af 15.4 Watts Class 3 compliant powered devices.
The POE31024P also provides a simple, cost-effective, and non-blocking wire-speed performance with 19-inch metal shape for deployment in compact housing, SOHO office or department network application.
Product Features
IEEE 802.3af power on up to 24 ports

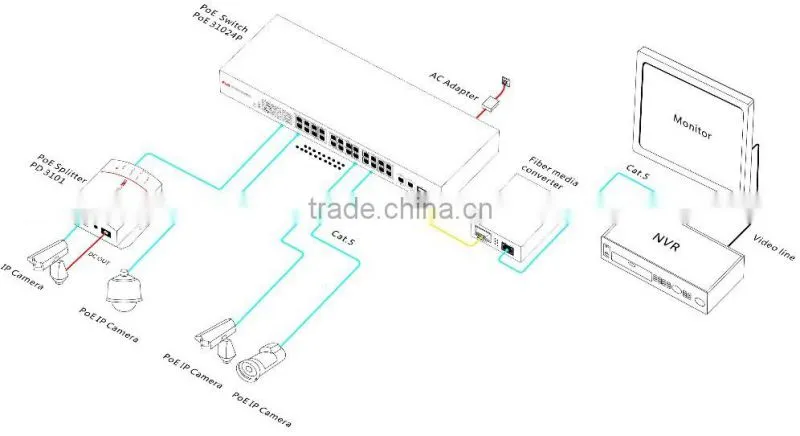

Supply power to wireless access points and surveillance cameras over Cat-5 cabling
24 10/100 Mbps Ports with AutoUplink™
Supports PoE power up to 15.4W for each PoE port
Supports PoE power up to 440W for all PoE ports
Supports PoE IEEE 802.3af compliant PDs
Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
8K entry MAC address table of the PoE Switch POE31024PF with auto-learning and auto-aging
LED indicators for monitoring power, link, activity and speed
External power adapter supply
Target Industries
HD monitor transmission and power supply
Wireless AP layout transmission and power supply
Network telephone transmission , intelligent house and home system
Intelligent transportation supervisory system(ITS)
High-speed Way supervisory/Tele-Communication System
Security protection system, TV medical treatment
Long-distance Muti-media Schooling, Campus monitoring
Long-distance broadcast television transmission system
High-building Security Protection, Military Tele-Com projects
Order Information:
Product: POE31024P
Type: 24-PORT 10/100 SWITCH WITH 24-PORT POE, IEEE 802.3af, PoE Power Output: 15.4Watts,PoE Budget: 440W
Power Pin Assignment: Data provided over pairs over 1/2 and 3/6 ,Power over spare pairs 4/5(+) and 7/8 (-)
Accessories in the Package
Package Contents |
24-PORT 10/100 SWITCH WITH 24-PORT POE (POE31024P) |
AC Power Cable | |
User Guide | |
Warranty Card |
Product Display
| Technical parameter list | |
| Product Name | 24-Port PoE Switch with 2 Gigabit TP/SFP Combo ports |
| Model | POE31024P |
| Connector Type | 24-Port fast ethernet PoE switch with 2 Gigabit Combo ports |
| Network Media | 100Base-TX (≤150 meters, Catalogue 5 cable), 1000Base-FX, 1000Base-TX |
| Bandwidth | 1.25Gbps |
| Address Database Size | 8M |
| Forwarding Mode | Store-And-Forward Architecture |
| Network Protocols | IEEE 802.3i; IEEE 802.3u; IEEE 802.3x Flow Control; IEEE 802.1af DTE Power via MDI |
| LED Display | Power, Ethernet Data, PoE working status |
| Power Supply | Input AC100-240V 50/60Hz |
| PoE Ports | 1-24 Port support PoE (15.4Watts per port) |
| PoE Standard | IEEE802.3af |
| PoE Feature | Output power 15.4Watts (IEEE802.3af) |
| Power Consumption | 440W |
| Working Environment | Operating temperature: 0 to 55° C Storage temperature: -20 to 75°C, Operating Humidity 10%~90%(Non-C |
| Certification | FCC Class A, CE, RoHS |
| Power Supply Type | End-span (Mid-span optional) |
| Product Size | 445 x 335 x 45mm , 5kg |
| Package Size | 585 x 445 x 95, 5.7kg |
| Warranty | Switch warranty: 1 year, Adapter warranty: 2 years. Lifetime Maintenance |
