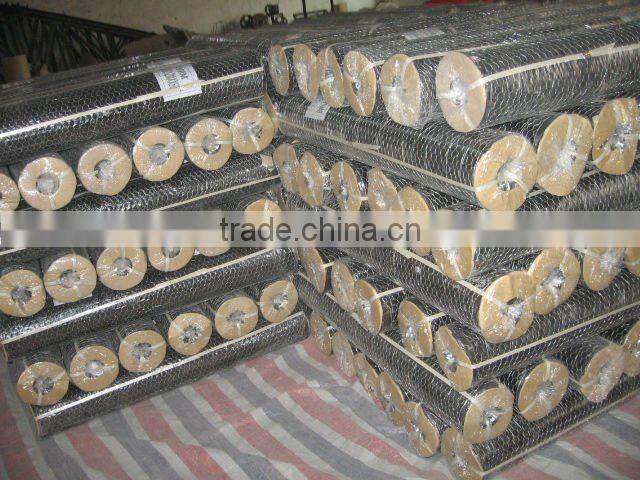

Electro Galvanized Hexagonal Wire Mesh

Galvanized hexagonal wire netting

mesh

Min. Gal.v.

G/SQ.M

Width

Wire Gauge (Diameter)

BWG

Inch

mm

Tolerance(mm)

3/8"

10mm

±1.0

0.7mm - 145

2' - 1M

27, 26, 25, 24, 23

1/2"

13mm

±1.5

0.7mm - 95

2' - 2M

25, 24, 23, 22, 21

5/8"

16mm

±2.0

0.7mm - 70

2' - 2M

27, 26, 25, 24, 23, 22

3/4"

20mm

±3.0

0.7mm - 55

2' - 2M

25, 24, 23, 22, 21, 20, 19

1"

25mm

±3.0

0.9mm - 55

1' - 2M

25, 24, 23, 22, 21, 20, 19, 18

1-1/4"

31mm

±4.0

0.9mm - 40

1' - 2M

23, 22, 21, 20, 19, 18

1-1/2"

40mm

±5.0

1.0mm - 45

1' - 2M

23, 22, 21, 20, 19, 18

2"

50mm

±6.0

1.2mm - 40

1' - 2M

23, 22, 21, 20, 19, 18

2-1/2"

65mm

±7.0

1.0mm - 30

1' - 2M

21, 20, 19, 18

3"

75mm

±8.0

1.4mm - 30

2' - 2M

20, 19, 18, 17

4"

100mm

±8.0

1.6mm - 30

2' - 2M

19, 18, 17, 16

Note:
1.) The above tolerance comply with standard EN10223-2:1997;
2.) Minimum Galvanization is only for typical wire diameter as marked separately in the column for your reference; Also it is only for hot dipped Galvanized Netting.

PVC Coated Hexagonal Wire Netting

Mesh

Wire Gauge (MM)

Width

Inch

MM

-

-

1/2"

13mm

0.6mm - 1.0mm

2' - 2M

3/4"

19mm

0.6mm - 1.0mm

2' - 2M

1"

25mm

0.7mm - 1.3mm

1' - 2M

1-1/4"

30mm

0.85mm - 1.3mm

1' - 2M

1-1/2"

40mm

0.85mm - 1.4mm

1' - 2M

2"

50mm

1.0mm - 1.4mm

1' - 2M

Note: The thickness of PVC Coating is usually 0.2-0.4mm, others may arranged as per buyers' request;

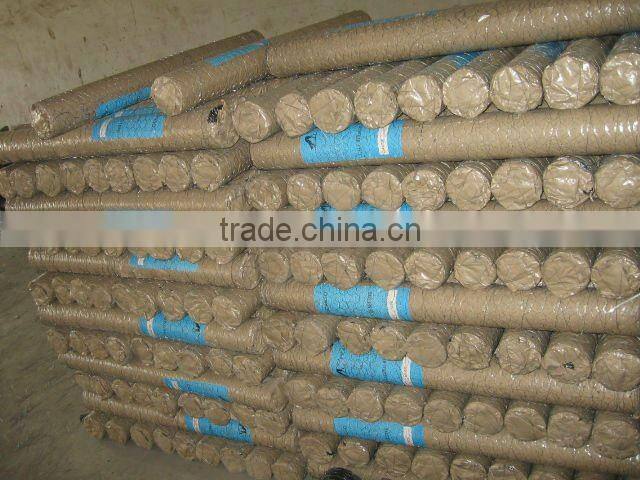

Package: Normally each roll packed in water proof paper, then in termo foil (Shrinked Plastic);
