10/100M Power over ethernet Module for IP camera IEEE802.3at
Feature
1. 100M High Power PoE Module - Special for IP webcam
2. Compatible with IEEE 802.3af Power over Ethernet standard
3. PoE port power can be up to 15.4W
4. Standard modular design, embedded PCB design special for network camera
5. 2x 12V voltage output, can be customized 5V/9V/12VDC output
6. 1236 and 4578 compatible power supply
7. Low heat design, safe and reliable, high stability
8. Dimension (L x W): 38X38(mm)
Specification
| Product Name | 10/100M PoE Module 15.4W - Special for IP Webcam |
| Product Model | ONV-PD3002 |
| Connector Type | 6-Pin PoE input +4-Pin data output+2x 2-Pin 12V voltage output |
| Network Protocol | IEEE 802.3i;IEEE 802.3u;IEEE 802.3x Flow Control; IEEE 802.1af DTE Power via MDI |
| Performance | High power special for IPC webcam, 100M bandwidth, 12V output, IEEE802.3at standard |
| PoE Port Power | Output power is 30W(IEEE802.3at) |
| PoE Standard | IEEE 802.3af(Port output power is 15.4W) |
| PoE Power Supply Type | Support both mid-span and end-span |
| PoE Cable Core | Support both 4/5+,7/8-line pair and 1/2+,3/6-line pair |
| Power Consumption | 16W |
| Radiation | FCC Class A, CE, RoHS |
| LED Display | System working status |
| Product Size | L x W(mm): 38X38mm, 0.02kg |
| Working Environment | Working temperature: 0°~ 55°C, Storage temperature: -20°~ 75°C, Working Humidity: 10%~90%, non-condensing |
| Warranty | 1 year warranty, life-long maintenance |
Order Information
Product Model: ONV-PD3002-at
Product Description: 10/100M high power PoE Module special for IPC webcam, DC 12V, IEEE 802.3at international standard, PoE port power can be up to 25.5W
Ordering Note: Default PoE power supply type is end-span(45,78 line pair), mid-span(12,36 line pair) can be customized

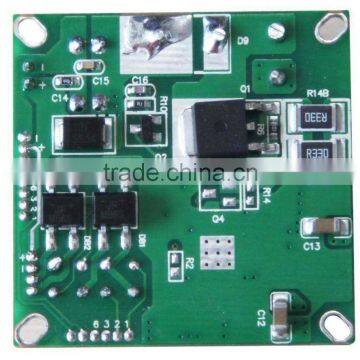

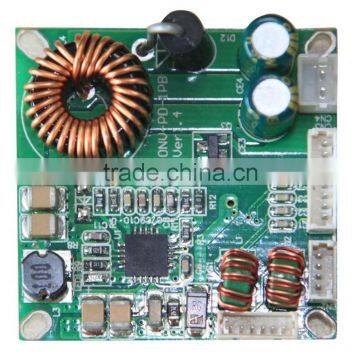

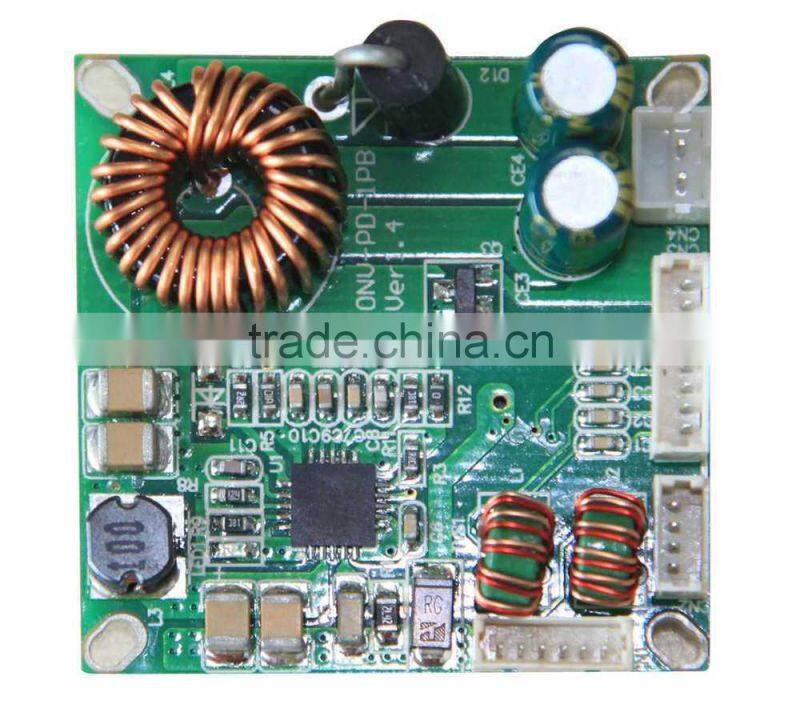

The Product Picture
Our factory and sale office
Certification
Shipment
Why choose ONV?
1. Have CE,FCC,ROHS certification
2. Twelve years of production experience
3. Have a R&D team
4. Good services
5. Prompt delivery
6. Competitive prices
7. Accept OEM & ODM cooperation
If you still have problen about our product or you want know more information about it, we are glad to serve you anytime.
