100m Fast Ethernet PoE Extender Support IEEE802.3af,15.4watts
US$ 17 - 25
MOQ: 1 Piece
Key Specifications
Get Latest Price
Products Status:
Stock
Ports:
Other, ≤ 8
Transmission Rate:
10/100Mbps
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
10/100M PoE Extender Extention Distance IEEE802.3afUS$ 1 - 25MOQ: 1 Piece -
Long Distance Extention 10/100M PoE Extender IEEE802.3afUS$ 14 - 35MOQ: 1 Piece
-
10/100M Full Duplex Repeater Poe Extender IEEE802.3afUS$ 18 - 28MOQ: 1 Piece
-
PoE Extender Distance 150Meters Single Port 15.4WUS$ 25.00 - 25.00MOQ: 1 Piece
-
ONV Brand Long Distance 10/100M Poe Extender With Transmission Distance of 100 MeterUS$ 1 - 25MOQ: 1 Piece
Products Status
Stock
Ports
Other, ≤ 8
Transmission Rate
10/100Mbps
Function
POE, QoS
Communication Mode
Other, Full-Duplex & Half-Duplex
Certification
CE,FCC,ROHS
Switch Capacity
1.6Gbps
Brand Name
ONV
Model Number
ONV-PSE-PD3101
Place of Origin
Guangdong, China
100m Fast Ethernet PoE extender support IEEE802.3af,15.4watts
Product features
- Complies with IEEE 802.3af Power over Ethernet
- Extends the range of PoE an additional 100 meters
- Forwards both Ethernet data and PoE power to remote devices
- Automatically detects and protects PoE equipments from being damaged by incorrect installation
- Multiple units, daisy-chain installation support
- No external power cable required for installation
- Compact size, Wall-Mountable design
- Plug-and-Play
Target Industries
- HD monitor transmission and power supply
- Wireless AP layout transmission and power supply
- Network telephone transmission , intelligent house and home system
- Intelligent transportation supervisory system (ITS)
- High-speed Way supervisory/Tele-Communication System
- Security protection system, TV medical treatment
- Long-distance Muti-media Schooling, Campus monitoring
- Long-distance broadcast television transmission system
- High-building Security Protection, Military Tele-Com projects

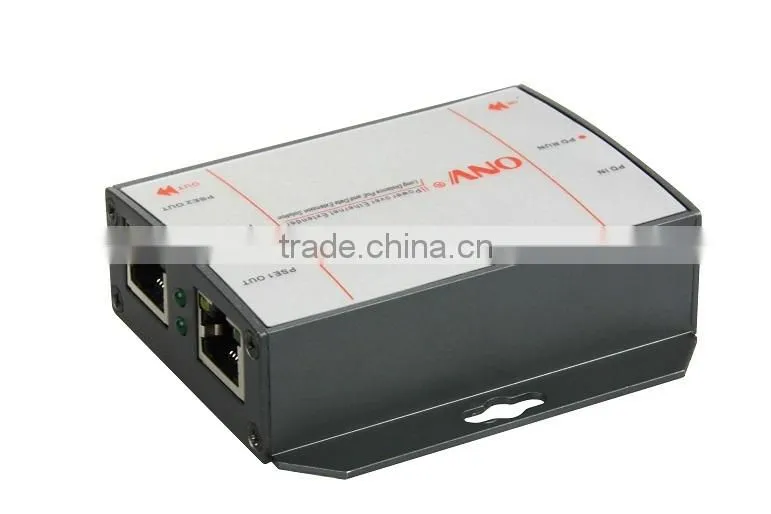

The picture
Specification
| Product Name | 100m Fast Ethernet PoE extender support IEEE802.3af,15.4watts |
| Product Model | ONV-PSE-PD3101 |
| Connector Type | Input: Data+Power; Output: Data+Power (Self-adjustable Power) |
| Network Medium | 100Base-TX (≤100, Catalogue 5 cable) |
| Bandwidth | 1.6Gbps |
| MAC Address Table | 1K |
| Network Protocol | IEEE 802.3i; IEEE 802.3u; IEEE 802.3x Flow Control; IEEE 802.1af DTE Power via MDI |
| Performance | Store-And-Forward Architecture; Extend the transmission distance of 100 meters |
| PoE Port | Input Power: 15.4Watts, Output Power: 12Watts for one port ouput, 6Watts for 2 port output |
| PoE Standard | IEEE802.3af |
| PoE Power Supply Type | End-Span |
| PoE Cable Core | 1/2+, 3/6- (4/5+, 7/8- optional) |
| LED Display | Power, Ethernet, PoE working status |

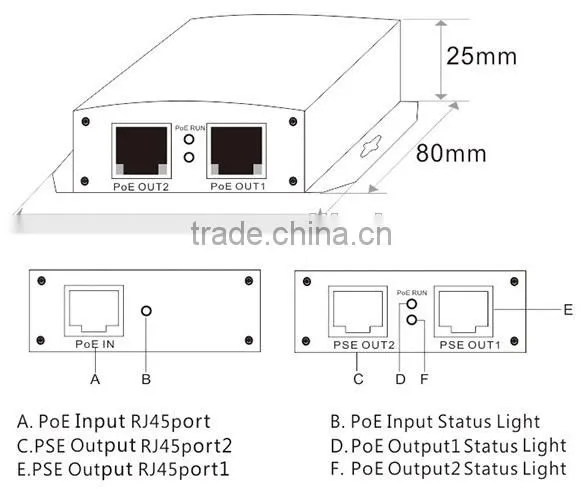

| Product Size | LxWxH: 80x76x25mm |
| Package Size | 0.2kg |
| Working Environment | Operating temperature: 0 to 55° C; Storage temperature: -20 to 75°C |
| Warranty | 1 Year Warranty |

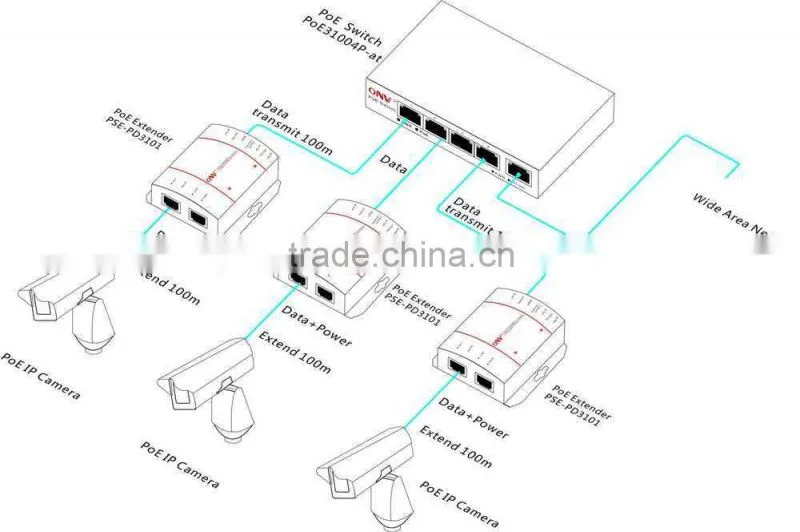

Application
Order Information
Product Model:ONV-PSE-PD3101
Description: 10/100M PoE Extender, 100 Meters, IEEE 802.3af, 15.4Watts
Power Pin Assignment: Default PoE power supply 12/ 36 line pairs, and alternative PoE power supply is 45/ 78 line pairs
Accessories in the Package
| Package Contents | 100m Fast Ethernet PoE extender support IEEE802.3af,15.4watts (ONV-PSE-PD3101) |
| User Manual | |
| Warranty Card |

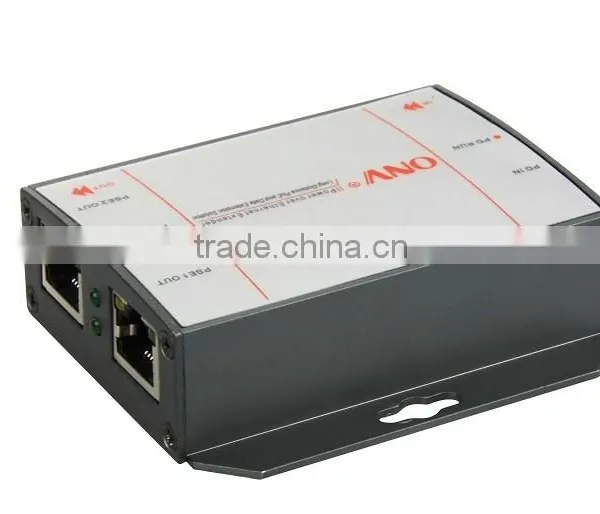

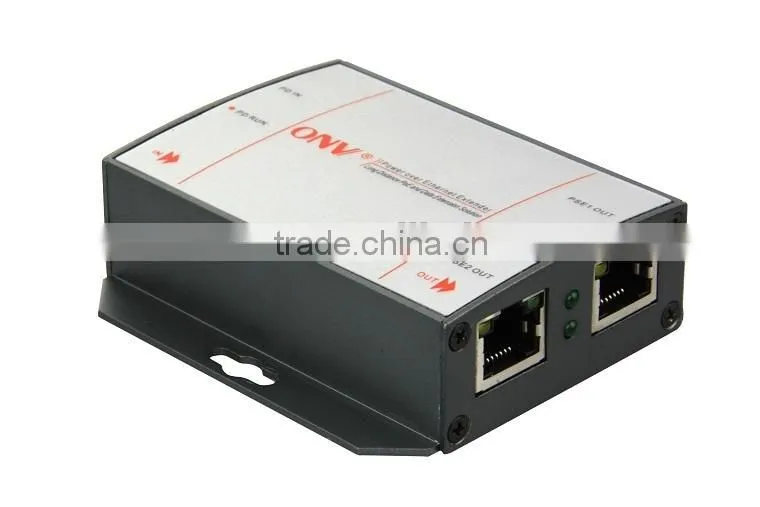

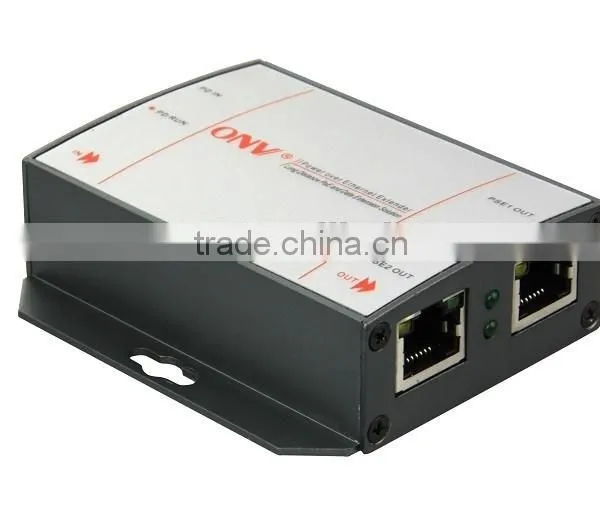

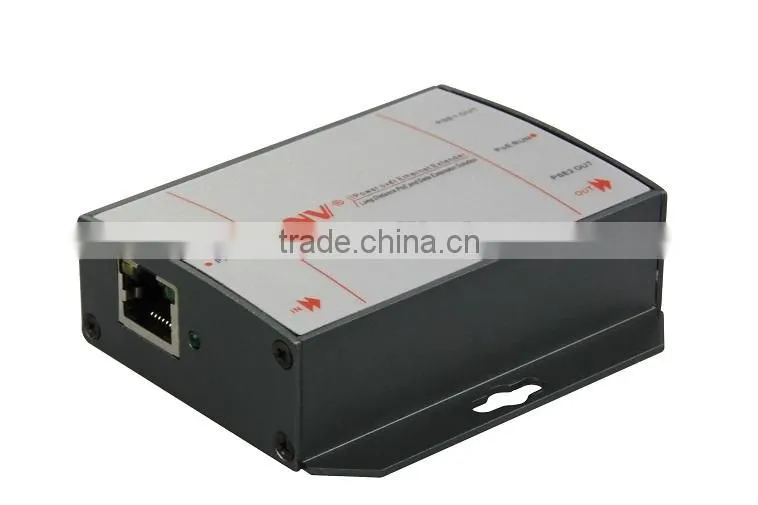

Product Display
Our factory and sale office
Shipment
Attended Exhibiton
