PSE-PD3201 is a simple device which can extend the 100 meters standard data transmission with an additional 150 meters through CAT5e/6 UTP cable, by just plug and play but no additional power supply or set up required. It offers you great flexibility to extend the distance of PoE network to triple, quadruple further in length or more. And this device supports forwards both Ethernet data and PoE power to remote devices
For the cost saving and power management purpose, the PSE-PD3201 can be widely used for City intelligent traffic monitoring system (ITS), safe city, and wireless city; large industrial factory& enterprise security surveillance system; Highway surveillance system, electronic road surveillance, snapshot system; Remote multimedia teaching & campus surveillance, video conferencing systems; Building intercom, wireless communications, video surveillance.
Technical Specification
Product Name |
10/100M PoE Extender 15.4W - 150 Meters |
Model |
PSE-PD3201 |
Description |
extends the data transmission with an additional 150 meters |
Network Protocols and Standards |
IEEE 802.3i 10BASET IEEE 802.3x Flow Control |
Network Medium |
Cat5 or more UTP |
Backplane Bandwidth |
1.6Gbps |
Forwarding Way |
Store-And-Forward architecture |
MAC Address Table Size |
1K |
Port Description |
1x RJ45 PoE input port; 2x RJ45 PoE output ports |
PoE Features |
IEEE802.3af |
Power over Ethernet, 15.4W(IEEE802.3af) | |
Mid-span(4/5+, 7/8- ), end-span(1/2+, 3/6-) | |
LED Indicator Status |
Power; Network; PoE working status |
Dimension/Weight |
Dimension(LxWxH): 80X76X25mm |
Environment |
Operating temperature: 0 to 55° C Storage temperature: -20 to 75°C Working Humidity: 10%~90%, non-condensing |
Safety |
CE Mark ,commercial, FCC Class, RoHS |
Warranty |
1 year warranty |
Package List |
POE Extender, User Guide, Warranty Card |

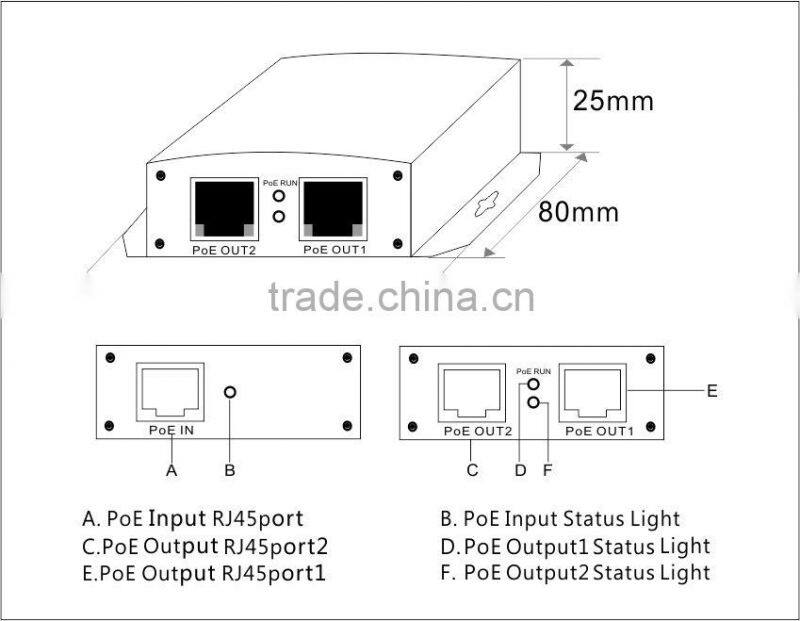

Product Size Display

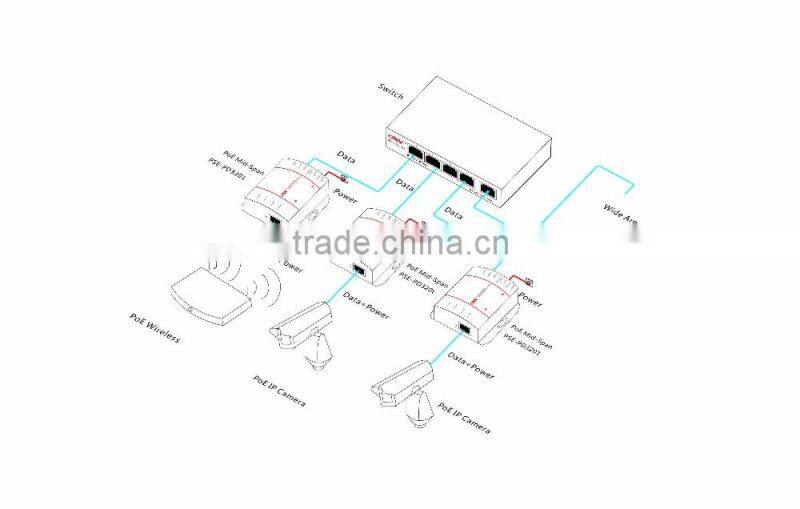

Product Application Display
Product Ordering Information
Model: PSE-PD3201
Description: 10/100M PoE extender with 2 PoE ports; 1x RJ45 input port; 2x RJ45 PoE output ports; 15.4W(IEEE802.3af); extends the data transmission with an additional 150 meters
Ordering Note: Mid-span (4/5+, 7/8- ), end-span (1/2+, 3/6-), can be customized
Model |
Specs |
PSE-PD3201 |
10/100M, IEEE802.3af, 15.4W, 2x RJ45 PoE Ports |
PSE-PD3201-at |
10/100M, IEEE802.3at, 25.5W, 2x RJ45 PoE Ports |
Product Packing Lists
Package List |
10/100M PoE Extender with 2 PoE Ports 15.4W – 150 Meters |
User Guide | |
Warranty Card |
Delivery
Factory and Company office
Why choose ONV?
- Have CE,FCC,ROHS certification
- Twelve years of production experience
- Have a R&D team
- Good services
- Prompt delivery
- Competitive prices
- Accept OEM & ODM cooperation
