PoE Long Extender

Optical Network Video Technologies (Shenzhen) Co., Ltd.
PoE Long Extender thumbnail-1
PoE Long Extender thumbnail-2
PoE Long Extender thumbnail-3
PoE Long Extender thumbnail-4
PoE Long Extender photo-1
PoE Long Extender photo-2
PoE Long Extender photo-3
PoE Long Extender photo-4
US$ 1 - 25 MOQ: 1 Piece
Key Specifications
Get Latest Price
Products Status:
Stock
Ports:
Other, ≤ 8
Transmission Rate:
10/100Mbps
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Ports Other, ≤ 8
Transmission Rate 10/100Mbps
Function POE, SNMP, VLAN Support
Communication Mode Other, Full-Duplex & Half-Duplex
Certification CE/FCC/ROHS
Brand Name ONV
Model Number ONV-PSE-PD3201
Place of Origin Guangdong, China



Product Description



1. Complies with IEEE 802.3af Power over Ethernet
2. Extends the range of PoE an additional 100 meters
3. Forwards both Ethernet data and PoE power to remote devices
4. Automatically detects and protects PoE equipments from being damaged by incorrect installation
5. Multiple units, daisy-chain installation support
6. No external power cable required for installation
7. Compact size, Wall-Mountable design
8. Plug-and-Play

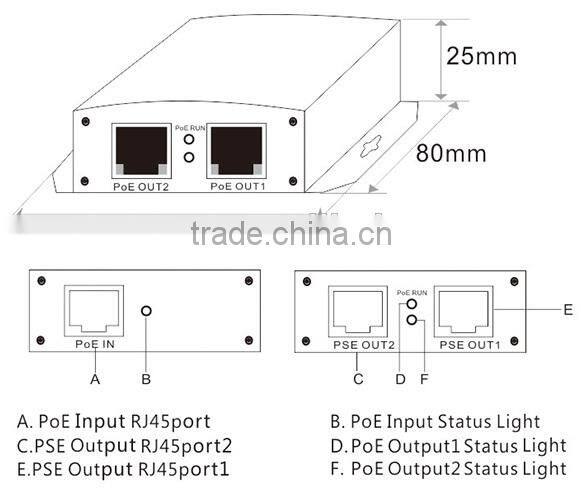

The picture



PoE Long Extender

PoE Long Extender

Specification

Product Name10/100M PoE Extender 15.4W - Extend 100 Meters
Product ModelONV-PSE-PD3101
Connector TypeInput: Data+Power; Output: Data+Power (Self-adjustable Power)
Network Medium100Base-TX (≤100, Catalogue 5 cable)
Bandwidth1.6Gbps
MAC Address Table1K
Network ProtocolIEEE 802.3i; IEEE 802.3u; IEEE 802.3x Flow Control; IEEE 802.1af DTE Power via MDI
PerformanceStore-And-Forward Architecture; Extend the transmission distance of 100 meters
PoE PortInput Power: 15.4Watts, Output Power: 12Watts for one port ouput, 6Watts for 2 port output
PoE StandardIEEE802.3af
PoE Power Supply TypeEnd-Span
PoE Cable Core1/2+, 3/6- (4/5+, 7/8- optional)
LED DisplayPower, Ethernet, PoE working status
Product SizeLxWxH: 80x76x25mm
Package Size0.2kg
Working EnvironmentOperating temperature: 0 to 55° C; Storage temperature: -20 to 75°C
Warranty1 Year Warranty





Order Information
Product Model:ONV-PSE-PD3101
Description: 10/100M PoE Extender, 100 Meters, IEEE 802.3af, 15.4Watts
Power Pin Assignment: Default PoE power supply 12/ 36 line pairs, and alternative PoE power supply is  45/ 78 line pairs

Accessories in the Package

Package Contents 10/100M PoE Extender(ONV-PSE-PD3101)
 User Manual
 Warranty Card





Product Display

PoE Long Extender
