Home > Tools & Hardware > Hardware Accessories > Shackles > 5/8" Bow Steel Shackle Anchor Tow Winch - 3-1/4

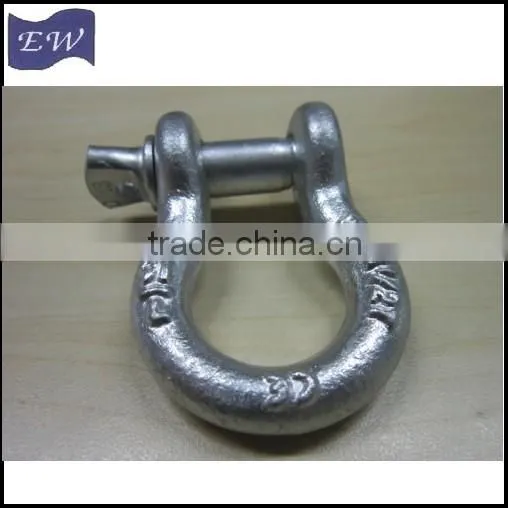

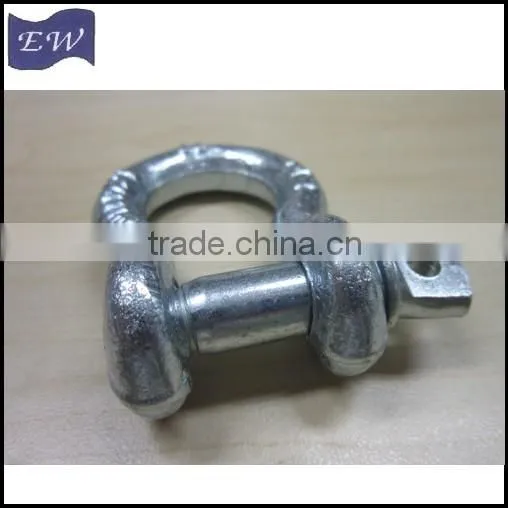

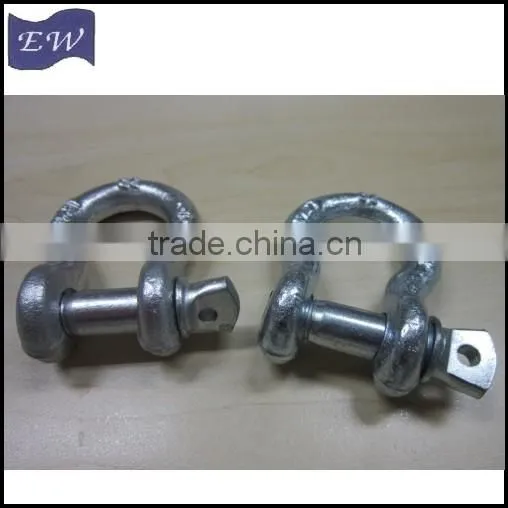

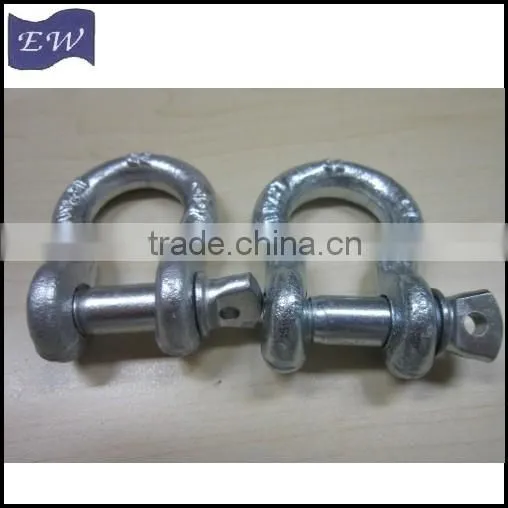

5/8" Bow Steel Shackle Anchor Tow Winch - 3-1/4

5/8" Bow Steel Shackle Anchor Tow Winch - 3-1/4 thumbnail-3

5/8" Bow Steel Shackle Anchor Tow Winch - 3-1/4 thumbnail-4

5/8" Bow Steel Shackle Anchor Tow Winch - 3-1/4 thumbnail-5

5/8" Bow Steel Shackle Anchor Tow Winch - 3-1/4 thumbnail-6

5/8" Bow Steel Shackle Anchor Tow Winch - 3-1/4 photo-1

5/8" Bow Steel Shackle Anchor Tow Winch - 3-1/4 photo-2

5/8" Bow Steel Shackle Anchor Tow Winch - 3-1/4 photo-3

5/8" Bow Steel Shackle Anchor Tow Winch - 3-1/4 photo-4

5/8" Bow Steel Shackle Anchor Tow Winch - 3-1/4 photo-5

5/8" Bow Steel Shackle Anchor Tow Winch - 3-1/4 photo-6

US$ 0.1 - 10 MOQ: 1000 Pieces

Key Specifications

Get Latest Price

Material:

Other, Carbon steel

Type:

US Type

Shape:

Bow

Contact Supplier Request Quote Chat Now

Shanghai Eastern Waves Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Ningbo/Tianjin/Qingdao/Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other, Carbon steel

Type US Type

Shape Bow

Surface Treatment Galvanized

Place of Origin China

Brand Name EW

Model Number US TYPE

5/8" Bow Steel Shackle Anchor Tow Winch - 3-1/4

Product Description

name	5/8" Bow Steel Shackle Anchor Tow Winch - 3-1/4
material	body - C45, pin -40CR or C45
surface	glav/h.d .g./pain/zinc plated / darcomet
casting	drop forged
size	3/16"-2-1/2"
application	chain and wire rope accessories for lifting industry
working load limit	0.5-85ton
another product	eye bolt and nut , turnbuckles,hook ,etc
packing	pp bag+carton+pallets
MOQ	1000PCS

Detailed part size:

Size	Working Load Limit	Dimensions(mm)
	(in.)	(tons)	A	B	C	D	E	F	G	H	L	M	P	(kg)
G209-1	3/16	1/3	9.65	6.35	22.4	4.85	15.2	14.2	24.9	37.3	4.06	28.4	4.85	0.03
G209-2	1/4	1/2	11.9	7.85	28.7	6.35	19.8	15.5	32.5	46.7	4.85	35.1	6.35	0.05
G209-3	5/16	3/4	13.5	9.65	31	7.85	21.3	19.1	37.3	53	5.6	42.2	7.85	0.09
G209-4	3/8	1	16.8	11.2	36.6	9.65	26.2	23.1	45.2	63	6.35	51.5	9.65	0.14
G209-5	7/16	1-1/2	19.1	12.7	42.9	11.2	29.5	26.9	51.5	74	7.85	60.5	11.2	0.17
G209-6	1/2	2	20.6	16	47.8	12.7	33.3	30.2	58.5	83.5	9.65	68.5	12.7	0.33
G209-7	5/8	3-1/4	26.9	19.1	60.5	16	42.9	38.1	74.5	106	11.2	85	17.5	0.62
G209-8	3/4	4-3/4	31.8	22.4	71.5	19.1	51	46	89	126	12.7	101	20.6	1.07
G209-9	7/8	6-1/2	36.6	25.4	84	22.4	58	53	102	148	12.7	114	24.6	1.64
G209-10	1	8-1/2	42.9	28.7	95.5	25.4	68.5	60.5	119	167	14.2	129	26.9	2.28
G209-11	1-1/8	9-1/2	46	31.8	108	29.5	74	68.5	131	190	16	142	31.8	3.36
G209-12	1-1/4	12	51.5	35.1	119	32.8	92.5	76	146	210	17.5	156	35.1	4.31
G209-13	1-3/8	13-1/2	57	38.1	133	36.1	92	84	162	233	19.1	174	38.1	6.14
G209-14	1-1/2	17	60.5	41.4	146	39.1	98.5	92	175	254	20.6	187	41.1	7.8
G209-15	1-3/4	25	73	51	178	46.7	127	106	225	313	25.4	231	57	12.6
G209-16	2	35	82.5	57	197	53	146	122	253	348	31	263	61	20.4
G209-17	2-1/4	42.5	95	65	220	57	160	143	274	32	33	321	66	32
G209-18	2-1/2	55	105	70	267	69	184	145	327	453	35.1	330	79.5	38.9

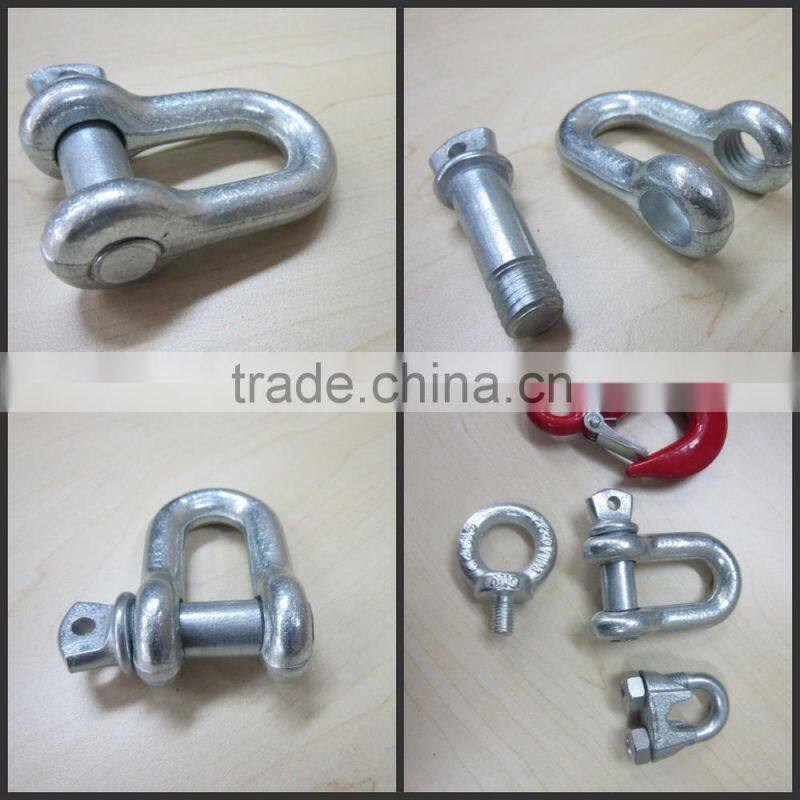

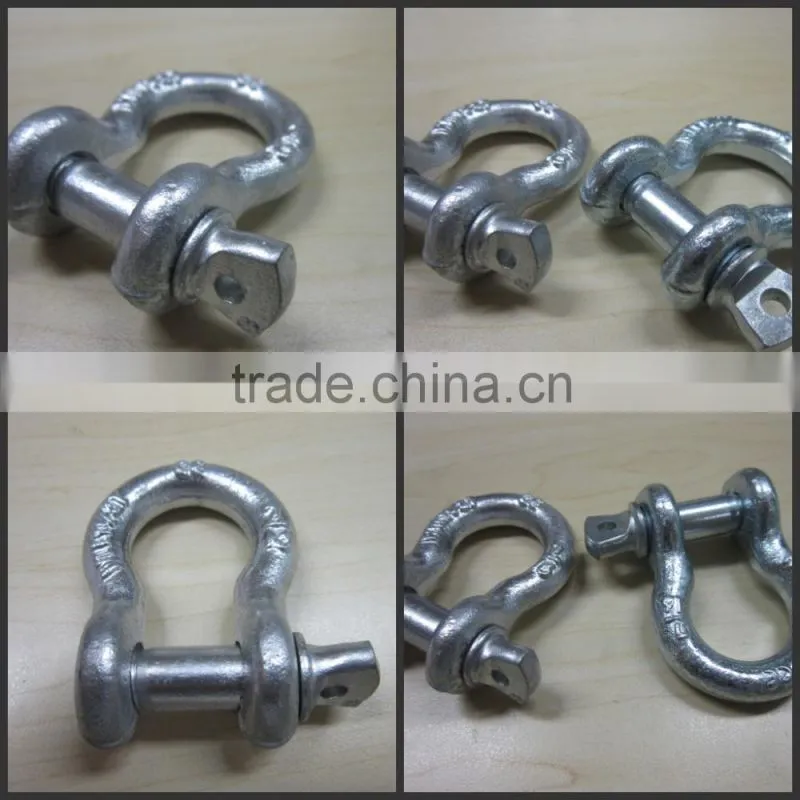

Photo:

Packaging & Shipping

-Packing:

1.packing:small box /bulking packing/roll packing+carton+pallets

Usually,48cartons /pallets

-Shipping

1.by express: DHL,FEDEX,UPS,TNT,ARAMEX,etc

2.by sea

3.by air

Our Services

1.sample :free sample is ok

2.make your logo label

3.packing as your requirements

4.OEM can be accepted

petitive price and high quality

Company Information

FAQ

1.Question: what's you material, OEM is ok ?

Answer:we have carbon steel and stainless steel material , any material can make as your requirements .

OEM is accepted .if large qty there is no need mould fee .

2.Question: free sample is ok ?

Answer:sample for standard is free. sample fee is need for non-standard . but freight you need to pay for it .

of course , you can save the sample fee and freight if you place the order . special sample will send you to test. then after confirmed large prouction will start.

3.Question:How is your packing ?

Answer:usually about inner packing we have bulking packing(polybag packing) ,roll packing ,small box packing ,then put into the carton , last packed into the pallets .

4.Question: How is your quality.

Answer: we can offer you the related material report or quality export as your requirement.

Sample can offer you to test. about the the quality we can promise you the quality after the goods selled six month . if some wrong happens cause the goods quality ,we will offer you the best solution.

Any questions please send us the email or call me . Thanks and have a nice day!
