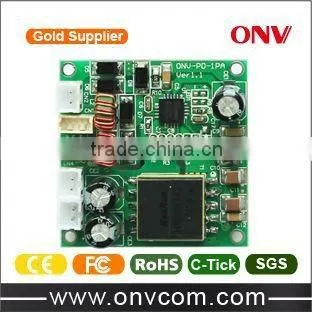

Help CenterONV Featured-product 10/100M PoE Module for IP Camera With Segregate 15.4W(ONV-PD3001)
Related Products
-
ONV High-effective 10/100M PoE Module for IP Camera With Segregate 15.4W(ONV-PD3001)US$ 1 - 11MOQ: 1 Piece -
IEEE802.3AF 15.4W PoE Splitter Module With SegregateUS$ 4.2 - 5.5MOQ: 1 Piece
-
Golden Supplier IEEE802.3AF 15.4W PoE Splitter Module With SegregateUS$ 4.2 - 5.5MOQ: 1 Piece
-
ShenZhen ONV Technologies IEEE802.3AF 15.4W PoE Splitter Module With SegregateUS$ 4.2 - 5.5MOQ: 1 Piece
-
Manufactory Product IEEE802.3AF 15.4W PoE Splitter Module With SegregateUS$ 4.2 - 5.5MOQ: 1 Piece
Feature
1. PoE Module - Special for IP Cameras, with segregate
2. Compatible with IEEE 802.3af Power over Ethernet standard
3. PoE port power can be up to 15.4W
4. Standard modular design, embedded PCB design special for network camera
5. 2x 12V voltage output, can be customized 5V/9V/12VDC output
6. 1236 and 4578 compatible power supply
7. Low heat design, safe and reliable, high stability
8. Dimension (L x W): 38X38(mm)
Specification
| Product Name | PoE Module with IEEE 802.3af Standard - Special for IP Cameras |
| Product Model | ONV-PD3001 |
| Connector Type | 6-Pin PoE input +4-Pin data output+2x 2-Pin 12V voltage output, with segregate |
| Network Protocol | IEEE 802.3i;IEEE 802.3u;IEEE 802.3x Flow Control; IEEE 802.1af DTE Power via MDI |
| Performance | Special for IP camera, 100M bandwidth, 12V output, IEEE802.3af standard |
| PoE Standard | IEEE 802.3af(Port input power is 15.4W) |
| PoE Power Supply Type | Support both mid-span and end-span |
| PoE Cable Core | Both 4/5+, 7/8-line pair and 1/2+, 3/6-line pair |
| Certifications | FCC Class A, CE, RoHS |
| LED Display | System working status |
| Product Size | 38x38mm, 0.02kg |
| Working Environment | Working temperature: 0°~ 55°C, Storage temperature: -20°~ 75°C, Working Humidity: 10%~90%, non-condensing |
| Warranty | 1 year warranty, life-long maintenance |
Order Information
Product Model: ONV-PD3001
Product Description: 10/100M PoE Module, DC 12V, IEEE 802.3af international standard, PoE port power can be up to 15.4W,with segregate
Ordering Note: Default PoE power supply type is end-span(45, 78 line pair), mid-span(12, 36 line pair) can be customized
