Product features
1. It is compatible with SDI and ASI signal, SDI/ASI signal adaptive
2. In accord with SMPTE259M, SMPTE297M, SMPTE310, SMPTE305( SDTI ) standard
3. Automatic adaptation of SDI143Mbps,177 Mbps,360270Mbps, Mbps,540Mbps,1.48Gbit,3Gbit rate
4. High precision PCR correction, the average PCR jitter are usually kept in20~60ns
5. The transmitter output optical power0~-14dBm (according to the actual chain loss for determining transmission power )
6. According to the Pathological ( extreme harsh environment test )
7. Support 1080P/1080I/720P; applicable to high-definition SDI monitoring system and broadcasting system.
8. Double power supply redundancy backup
9. The whole surface mount technology
10. All digit, no-compress, high definition optical transmission
11. Support 1 channel DVI high definition vedio transmission
12. Compatible support HDMI 1.3b standard
13. Automatic identify and configurate various display mode
14. Support UXGA 1600*1200/WUXGA 1920*1200@60Hz, HDTV 1080p 2048*1080@60Hz resolution ratio, the max bandwidth 5.4Gbps
15. Max support 12bi color depth
16. Max pixel clock 225MHz
17. Built-in auto equalization and re-fixed time function, frames clear and steady
18. Support E-DDC display mode memory and remote read function, guarantee display mode load correct at any time
19. Giga optical transmission technology, high-capacity, easy to upgrade
20. Optical WDM/CWDM/DWDM technology
21. Single mode, multimode fiber transmission
22. No need software set, support plug and play, and hot plug
23. Built-in surge and static protection, three-level lightning protection design
24. Apply to extreme hot and low temperature etc Industrial harsh environment
25. Surface mount technology
26. Industrial design, high reliability
27. Support custom and OEM for users
1. The city intelligent traffic monitoring system ( ITS ), safe city
2. The expressway monitoring system, road monitoring, electronic snapshot system
3. In large factories, network security monitoring system of multi function system
4. Remote multimedia teaching / campus monitoring system, video conference system
5. The long distance radio and television, high quality video and audio transmission system
6. The building intercom, military communications, military control

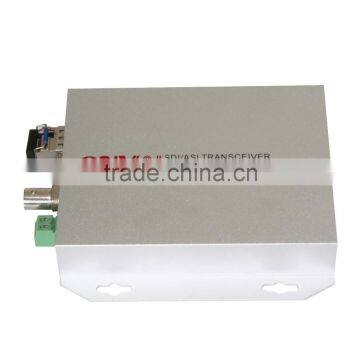

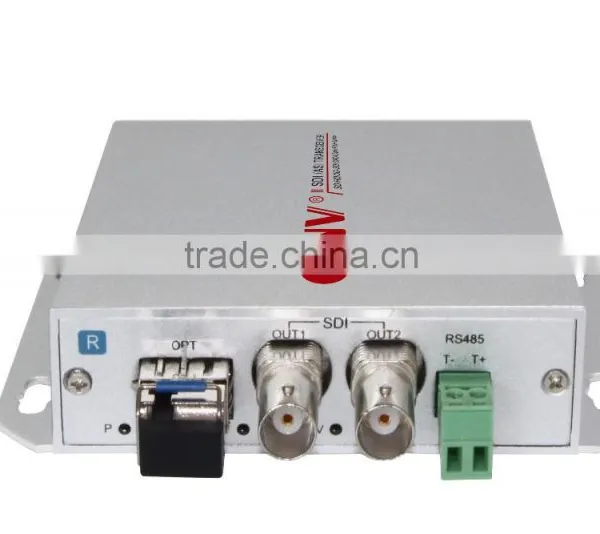

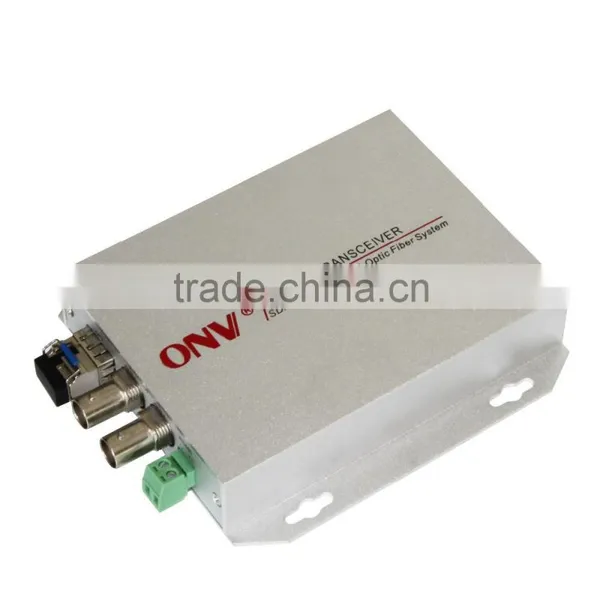

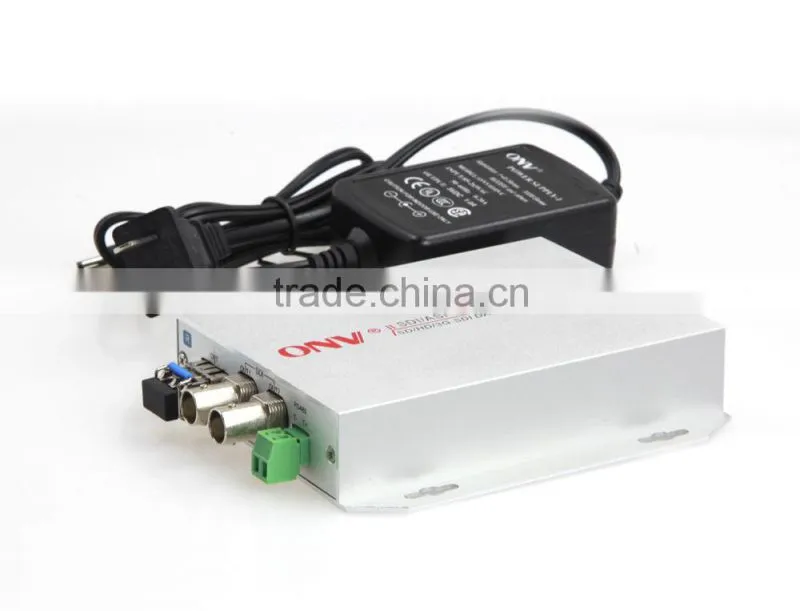

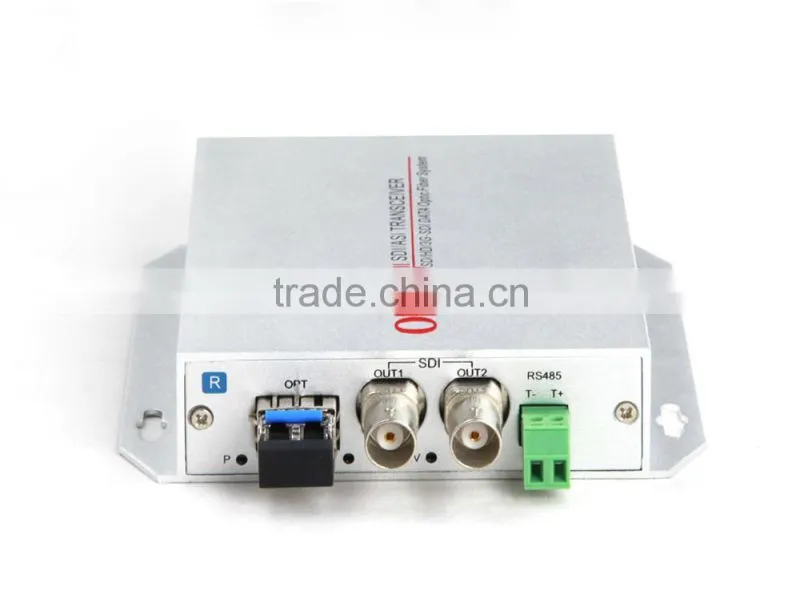

The picture
Specification
| Product Name | HD-SDI Optical Transceiver with 1CH Reverse Data |
| Product Model | ONV-T/RHDSDI-1D-S |
| Connector Type | 1 chanel input(HD-SDI), 1 channel ring out;Receive end: 2 chanels output+data; Video port type:BNC |
| Optical Fiber | SFP interface |
| Optical Distance | Max 100km |
| Power Supply | AC85-260V/50Hz |
| Power Consumption | 3w(Input:DC5V 1000mA) |
| Dimension | 116mmX110mmX25mm |
| Working Environment | Working Temperature: 0 ℃~+85 ℃; Store Temperature:-45 ℃~+95 ℃; Relative Humidity: 0 ~ 95% (no cold condensation) |
| Certification | CE mark,commercial,FCC Part 15 Class B,RoHS |
| Industrial Standard | 3 years warranty |
