10/100M 4 port poe switch for IP camera 48V 802.3af
Feature
1. IEEE 802.3af power on up to 4 ports
2. Supply power to wireless access points and surveillance cameras over Cat-5 cabling
3. 5x 10/100 Mbps Ports with AutoUplink™
4. Supports PoE power up to 15.4W for each PoE port
5. Supports PoE power up to 65W for all PoE ports
6. Supports PoE IEEE 802.3af compliant PDs
7. Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
8. 2K entry MAC address table of the PoE Switch with auto-learning and auto-aging
9. LED indicators for monitoring power, link, activity and speed
10. External power adapter supply

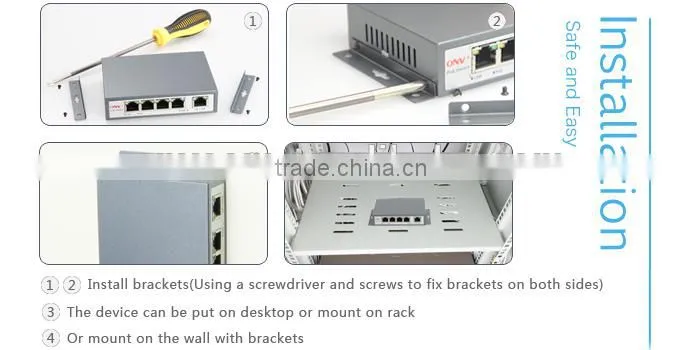

Installation Steps

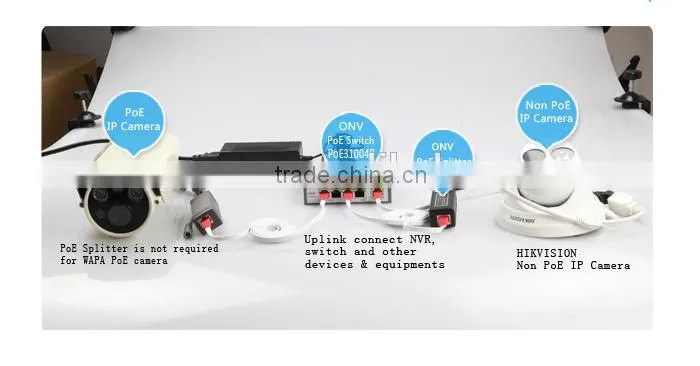

Physical Application Reference

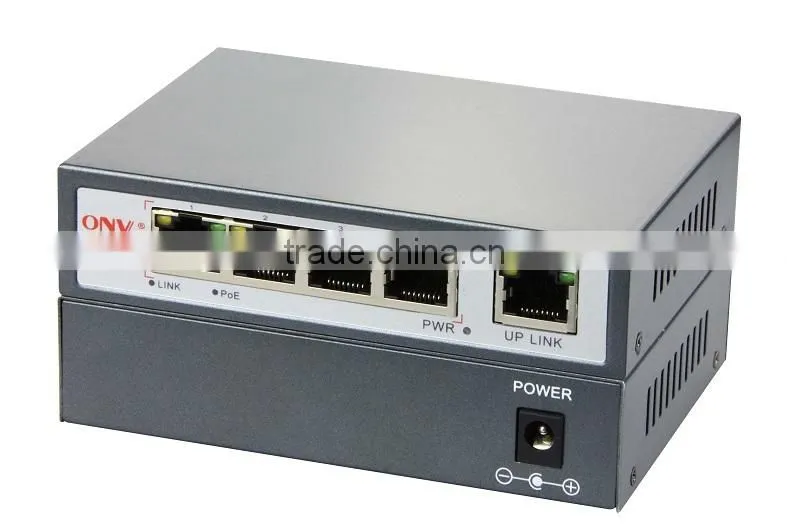

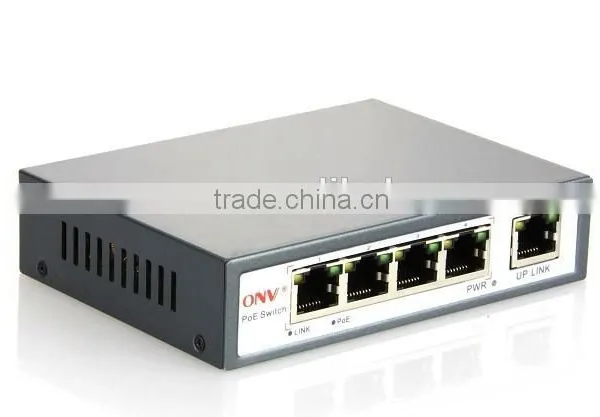

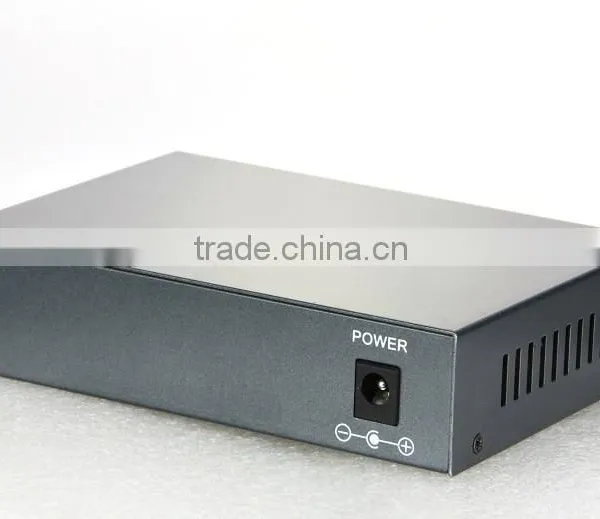

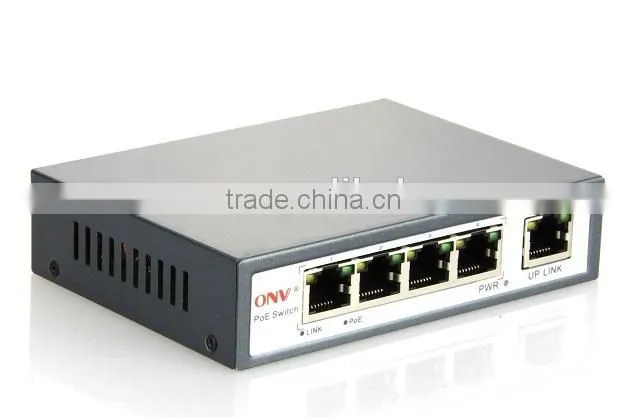

The picture
Specification
| Product Name | 5-Port AF PoE Switch with 4 PoE Ports and 1 Uplink |
| Model | ONV-POE31004P |
| Connector Type | 5x 10/100M copper cable RJ45 ports(all ports support MDI/MDIX), including 4x high power PoE ports |
| Network Media | 10BASE-T: Cat3,4,5 UTP(≤100 meter); 100BASE-TX: Cat5 or more UTP (≤100 meter) |
| Bandwidth | 1.6Gbps (non-blocking) |
| Address Database Size | 1K |
| MTBF | 100,000 hours (about 10 years) |
| Network Latency | Switch Throughput:1.19Mpps@64Bytes |
| Forwarding Mode | Store-And-Forward Architecture |
| Network Protocols | IEEE 802.3i 10BASET; IEEE 802.3u 100BASETX; IEEE 802.3x Flow Control IEEE 802.1af DTE Power via MDI; IEEE 802.3af |
| LED Display | System: power supply; Every Port: connecting, PoE working status |
| Power Supply | External Adpater (Input:AC100-240V 50/60Hz,Output:DC52V1.25A) |
| PoE Ports | 1-4 Ports support PoE |
| PoE Port Power | 15.4Watts per port,Max:30W port |
| PoE Standard | IEEE802.3af |
| PoE Feature | Automatic identification AF/AT |
| Power Consumption | 65W |
| Working Environment | Working temperature:-20°~ 55°C , Storage temperature: -40°~ 85°C,Working Humidity: 5%~95%, non-condensing |
| Certification | CE Mark ,commercial; CE/LVD EN60950, RoHS |
| Power Supply Type | 1/2+,3/6- (End-span), 4/5+,7/8- (Mid-span) optional |
| QoS | Yes |
| NMP | No |
| VLAN | No |
| Product Size | 185X113X36mm, 0.4kg |
| Package Size | 250 x 210 x 90mm,1.3kg |
| Warranty | Switch warranty: 1 year, Adapter warranty: 2 years. Lifetime Maintenance |
Order Information
Product: ONV-POE31004P
Type: 5-PORT 10/100 switch with 4 PoE ports, IEEE 802.3af; PoE Power Output: 15.4Watts per port. Total power consumption: 65Watts
Mid-span: Data provided over pairs over 1/2 and 3/6 ,Power over spare pairs4/5(+) and 7/8 (-)
End-span: Data and Power provided over 1/2(+), 3/6(-) , OPTIOANL

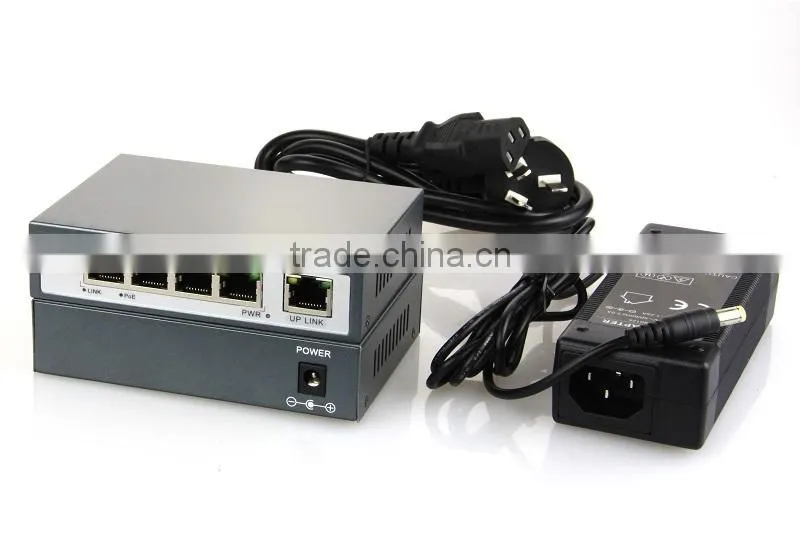

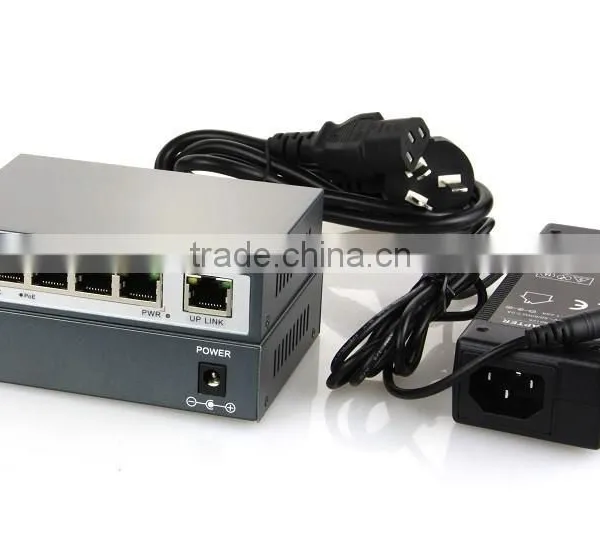

Accessories in the Package:
Model |
Model description |
ONV-POE31004P |
5-PORT 10/100 switch with 4-port PoE, IEEE 802.3af; PoE Power Output: 15.4 Watts per port; Total power consumption: 65Watts |
ONV-POE31004P-at |
5-PORT 10/100 switch with 4-port PoE+, IEEE 802.3at, PoE Power Output: 25.5Watts Total power consumption:120Watts |
Our factory and sale office

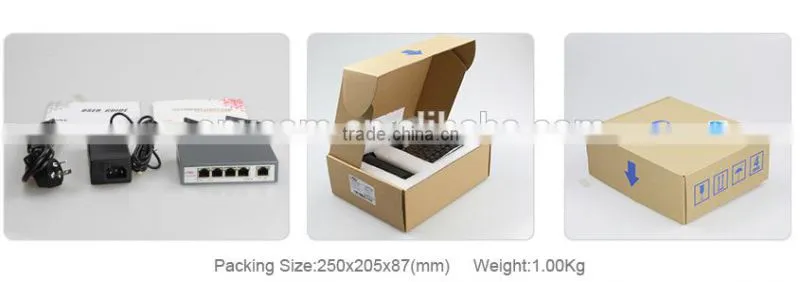

Shipment
Why choose ONV?
1. Have CE,FCC,ROHS certification
2. Twelve years of production experience
3. Have a R&D team
4. Good services
5. Prompt delivery
6. Competitive prices
7. Accept OEM & ODM cooperation
More information, please feel free to contact us.
