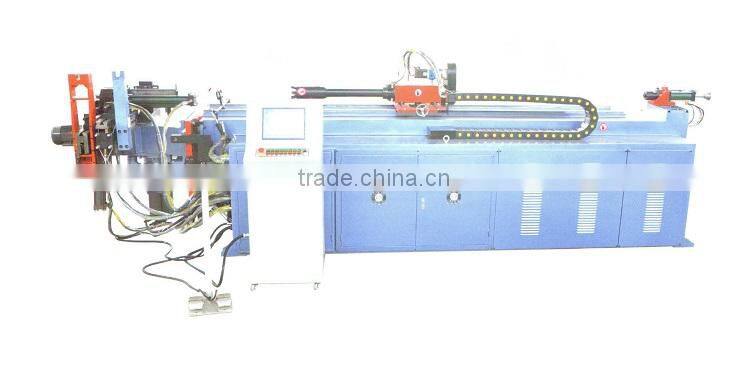

Precision automatic steel tube bender
Automobile parts (brake pipe, bumper bar, muffler exhaust pipe, seat pipe), motorcycle parts, boiler industry, electricity industry, fitness equipment, air condition refrigeration, bicycle, steel furniture, bathroom facility etc. industry
Main Technical Parameter
specification model |
1.DW75CNCX5A-2S |
|
2.DW75CNCX5A-3S | ||
max bending OD x wall |
Φ 75mm x 4 mm |
|
Max bending radius (1) |
R250mm |
|
Min bending radius (2) |
as OD of pipe |
|
Max bending degree |
190º |
|
Max effective distance of mandrel (3) |
3000mm |
|
method of feeding |
feeding directly, feeding with clamps |
|
working speed |
bending pipe speed |
Max 84º /s |
truning pipe speed |
Max 160º /s |
|
feeding speed |
Max 800mm/s |
|
accuracy |
bending pipe accuracy |
± 0.1º |
truning pipe accuracy |
± 0.1º |
|
feeding accuracy |
± 0.1mm |
|
method of data input |
1. coordinate(X. Y. Z) |
|
2. working value(Y. B. C) | ||
method of pipe bending |
1.pipe bending by servo motor:2kw (more than 3 axises) |
|
servo motor power of pipe turning |
1kw |
|
servo motor power of pipe feeding |
1.5kw |
|
elbows on pipe parts allowed |
1. 16 unit(PLC type) |
|
2. 33 unit(industry computer type) | ||
quantity pf storable parts(4) |
1. 1000 unit(PLC type) |
|
2. 2 million unit(industry computer type) | ||
oil pressure motor power |
7.5 kw |
|
max pressure in system (adjustable) |
12 Mpa |
|
tolerance of wheel model radius(5) |
Max90mm |
|
weight of machine |
4500kg |
|
size of machine |
5200 x 1350 x 1230mm |
|
Drawing
