Continuously Dry Type Pulley Wire Drawing Machine

Continuously Dry Type Pulley Wire Drawing Machine thumbnail-1
Continuously Dry Type Pulley Wire Drawing Machine photo-1
US$ 160000.00 - 160000.00 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Inlet Diameter:
5.5-6.0mm
Outlet Diameter:
1.2-4.0mm
Contact Supplier Request Quote Chat Now
Zhangjiagang Jiasye Import & Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Inlet Diameter 5.5-6.0mm
Outlet Diameter 1.2-4.0mm
Place of Origin Jiangsu, China
Brand Name JSY
Model Number LZ 6-10
Voltage 380V, 380V
Power(W) 37000
Dimension(L*W*H) 1800*1100*2495
Weight 2000kg, 2000kg
Certification ISO Approving
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Continuously Dry type pulley wire drawing machine

mainly used on carbon steel wires, alloy steel wire, stainless steel wires processing, most welcome by steel wire rope plant,electric welding rod plant, wire net weaving plant, tubular pile plants, spring wire plant, tire wires plant, process many kinds steel wire, copper wire, aluminum wire...

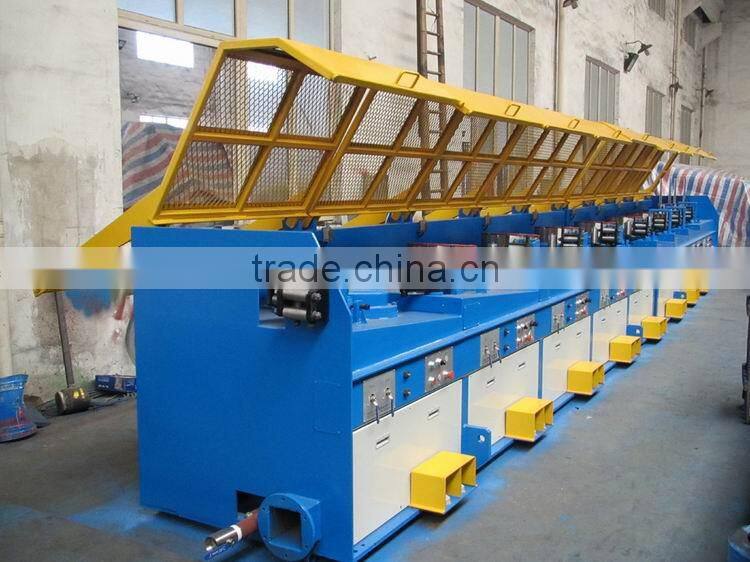

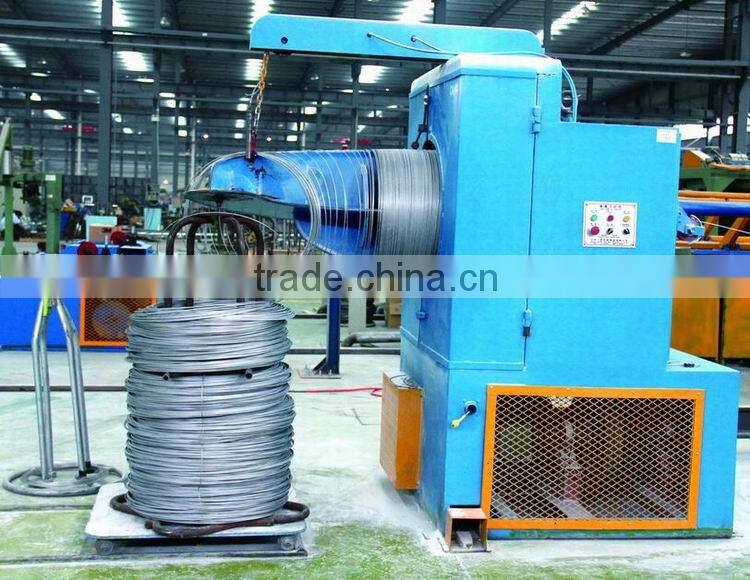

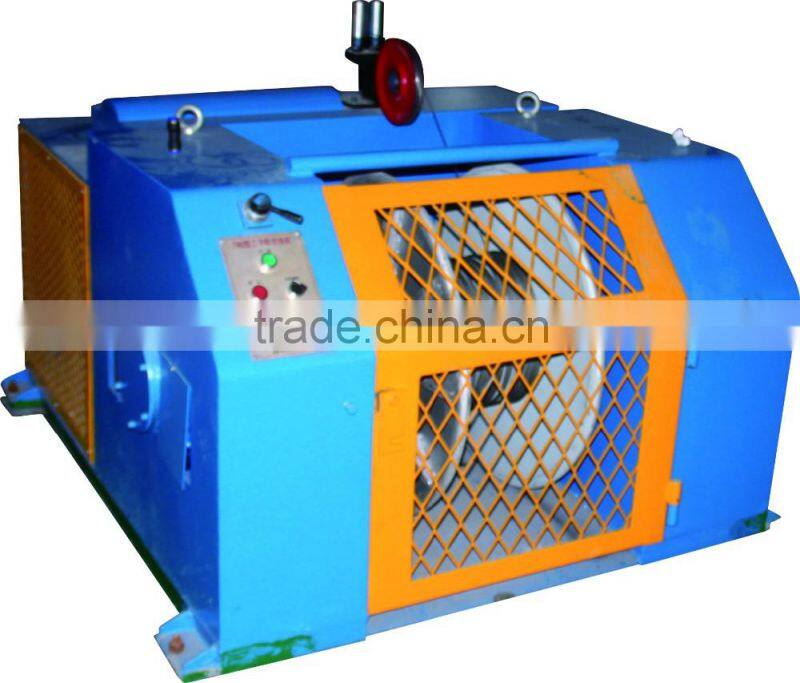

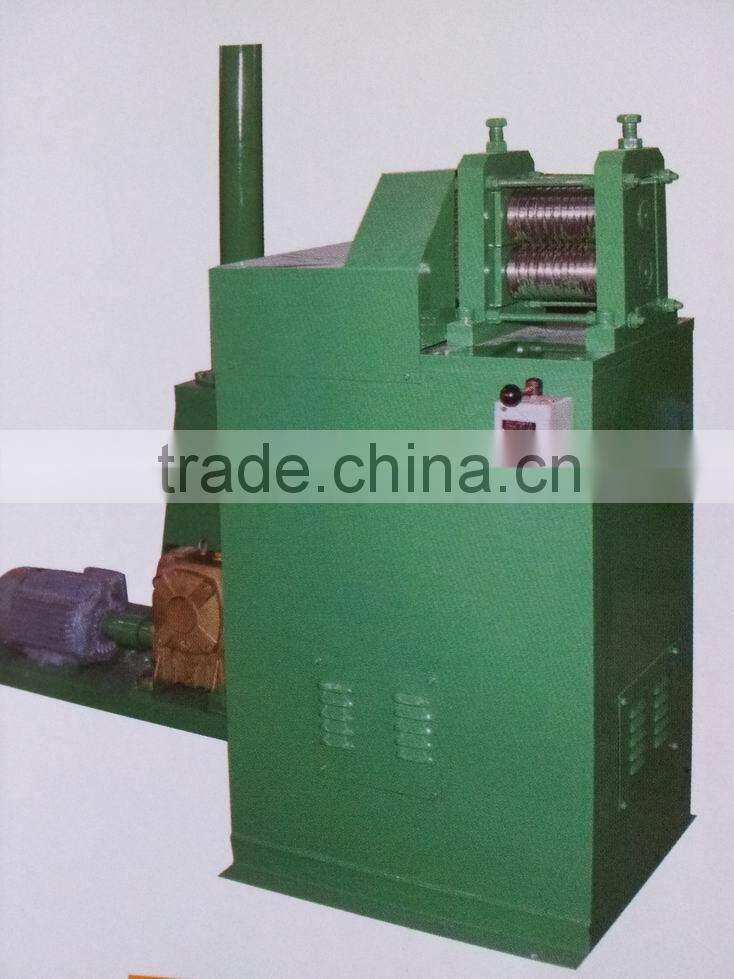

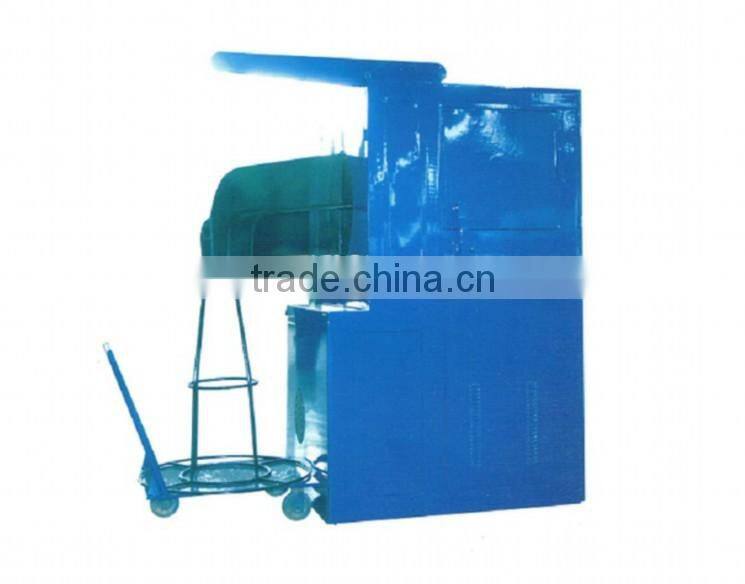

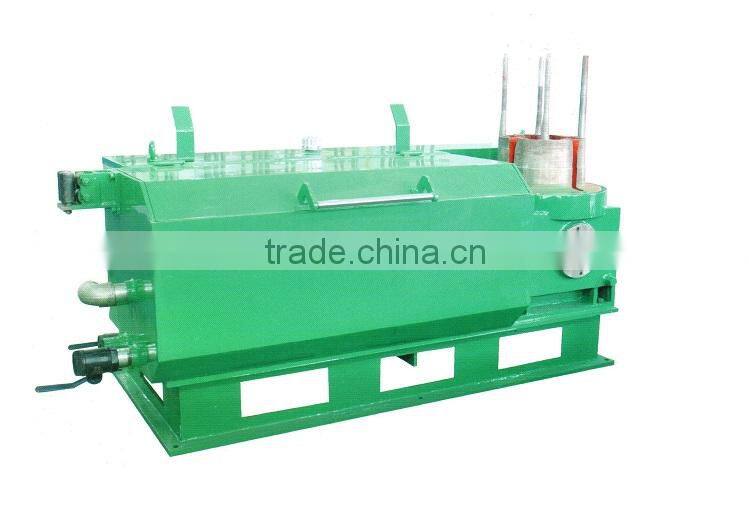

Detailed Images
Specification of steel wire drawing machine
Machine type
straight line type steel wire drawing machine
model
LZ6-10/560
Drawing strength (Mpa)
<1100
Winding drums (units)
9
The diameter of winding drum(mm)
560
Max wire input diameter(mm)
6.5
Min wire output diameter(mm)
1.2
Overall compression ratio
84
work speed(m/min)
500
Each motor power(kw)
37
operation control system
PLC
Each set weight(kg)
2000
Each set Overall dimension(mm) L*W*H
1800*1100*2495
Specification of steel wire drawing machine
Model
LT-15/350
LT-17/250
LT-10/200
power control
alternating current variable frequency motor controlling
diameter of roller(mm)
350
250
200
times of drawing
15
17
10
wire diameter input(mm)
2.2-2.8
1.2-1.7
0.5-1.0
wire diameter output(mm)
0.6-0.8
0.4-0.6
0.2-0.5
drawing speed(m/min)
500
420
300
power of motor(kw)
37-45
18.5-22
5.5-7.5
diamension of machine(mm)L*W*H
2600x1300x1350
1500x800x1100
weight of machine(kg)
3000
2800
1300

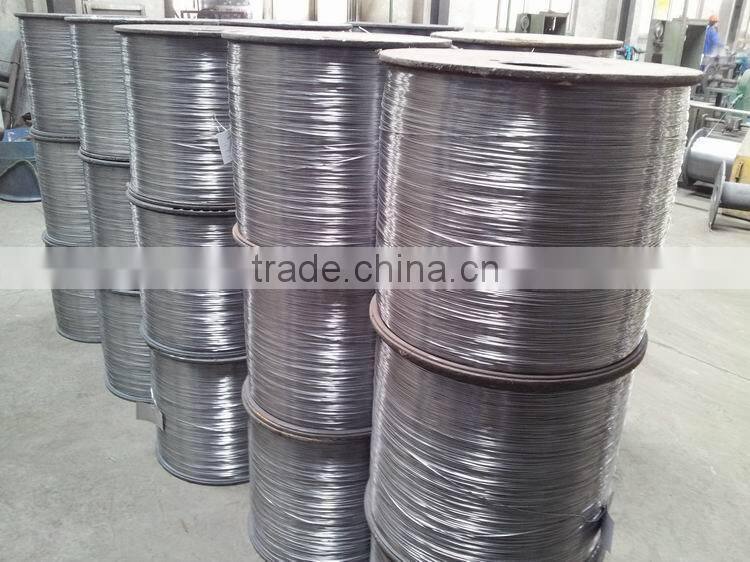

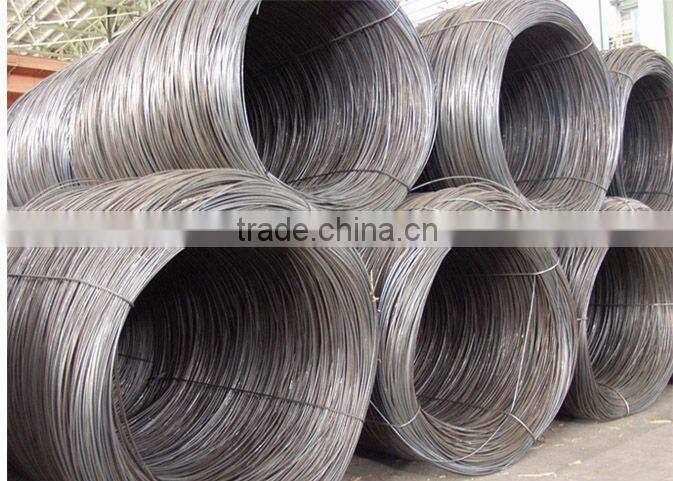

Wire Image

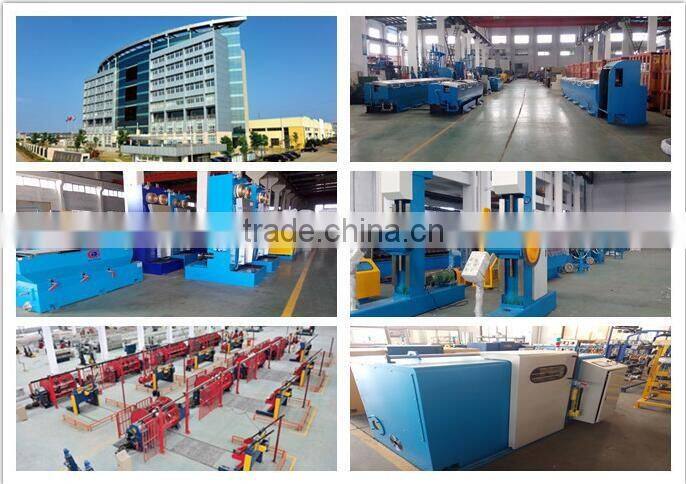

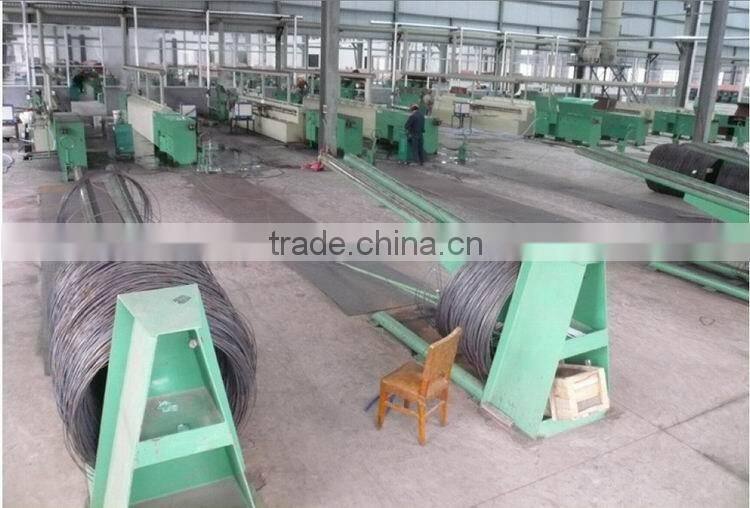

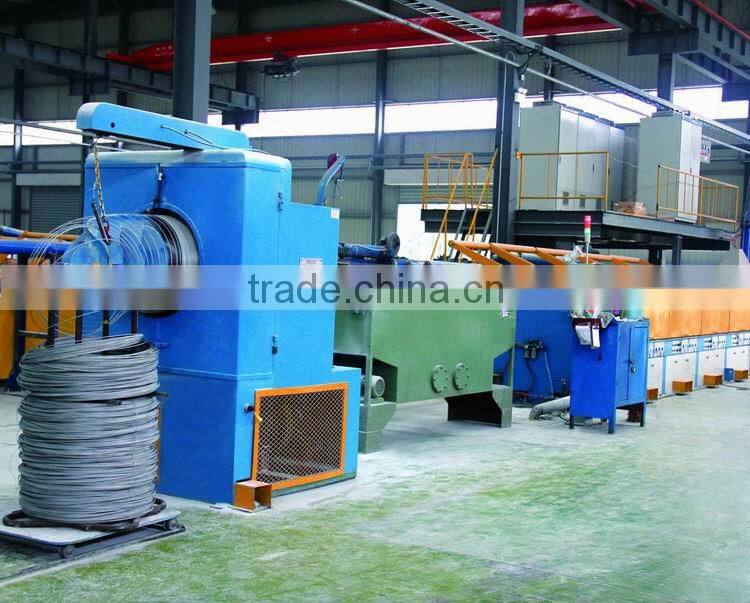

Plant
Packing & Delivery
Our Service
