Home > Products > Retaining Rings/Circlips > Din471 19mm External Circlip (DIN471 )

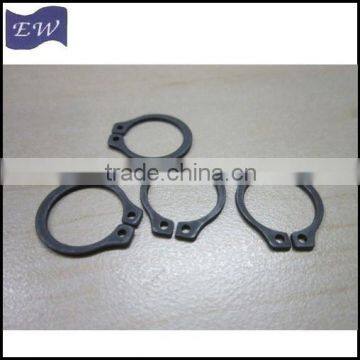

Din471 19mm External Circlip (DIN471 )
- Shanghai/Ningbo/Tianjin/Qingdao/Shenzhen
- T/T
You May Like
Product Details
| Place of Origin | China | Brand Name | EW | |
| Model Number | DIN471 | Standard | DIN |
Product Description
din471 19mm external circlip (DIN471 )
1.material: Carbon spring steel ( Mn65, 50CRV4, C67, SK5), Stainless steel (SS304) etc
2.size:M3-M500, HRC 44~52
3.standard: GB, DIN, ISO, ANSI/ASTM, B7, BS, JIS etc
4.model:DIN471,DIN472,DIN6799,M1308,M1408,N1308,D1300,D1400,D1460,D1500,ETC
5.size:m3-m500
6.finish:black ,plain,zinc ,plain,etc
7.OEM accepted
petitive price and high quality
9.main market: Italy,England,Russia,Turkey,America,Canada,Brazil, Argentina,Peru,Ecuador,South Africa, Australia, New Zealand, Iran, etc
Circlips are now widely used in many forms and offer a favourable and inexpensive securing device. They vary from the simple wire ring to the more robust circlip which offers substantial axial thrust.
471 range are probably the most common form of external axially fitted circlip. They offer continuous radial force and are ideal for applications requiring a strong centrifugal force as well as being secure against high rotational speeds.
Fitting or removal is simplified by the use of Circlip Pliers
Most common form of axially fitted circlips for bores with grooves. The circlip has a large free diameter and gap width, consequently it fits more tightly into the groove and provides higher and more uniform thrust load capacity.
detaied size :
| 3X0.4 | 33X1.5 | 72X2.5 | 130X4 | 188X4 | 248X5 | 315X6 |
| 4X0.4 | 34X1.5 | 75X2.5 | 132X4 | 190X4 | 250X5 | 320X6 |
| 5X0.6 | 35X1.5 | 77X2.5 | 135X4 | 192X4 | 252X5 | 325X6 |
| 6X0.7 | 36X1.75 | 78X2.5 | 137X4 | 195X4 | 255X5 | 330X6 |
| 7X0.8 | 37X1.75 | 80X2.5 | 138X4 | 197X4 | 257X5 | 335X6 |
| 8X0.8 | 38X1.75 | 82X2.5 | 140X4 | 198X4 | 258X5 | 340X6 |
| 9X1 | 39X1.75 | 85X3 | 142X4 | 200x4 | 260X5 | 345X6 |
| 10X1 | 40X1.75 | 87X3 | 145X4 | 202X5 | 262X5 | 350X6 |
| 11X1 | 41X1.75 | 88X3 | 147X4 | 205X5 | 265X5 | 355X6 |
| 12X1 | 42X1.75 | 90X3 | 148X4 | 207X5 | 267X5 | 360X6 |
| 13X1 | 44X1.75 | 92X3 | 150X4 | 208X5 | 268X5 | 365X6 |
| 14X1 | 45X1.75 | 95X3 | 152x4 | 210X5 | 270X5 | 370X6 |
| 15X1 | 46X1.75 | 97X3 | 155x4 | 212X5 | 272X5 | 375X6 |
| 16X1 | 47X1.75 | 98X3 | 157X4 | 215X5 | 275X5 | 380X6 |
| 17X1 | 48X1.75 | 100X3 | 158X4 | 217X5 | 277X5 | 385X6 |
| 18X1.2 | 50X2 | 102X4 | 160X4 | 218X5 | 278X5 | 390X6 |
| 19X1.2 | 52X2 | 105X4 | 162X4 | 220X5 | 280X8 | 395X6 |
| 20X1.2 | 54X2 | 107X4 | 165X4 | 222X5 | 282X5 | 400X6 |
| 21X1.2 | 55X2 | 108X4 | 167X4 | 225X5 | 285X5 | 420X7 |
| 22X1.2 | 56X2 | 110X4 | 168X4 | 227X5 | 287X5 | 460X7 |
| 23X1.2 | 57X5 | 112X4 | 170X4 | 228X5 | 288X5 | |
| 24X1.2 | 58X2 | 115X4 | 172X4 | 230X5 | 290X5 | |
| 25X1.2 | 60X2 | 117X4 | 175X4 | 232X5 | 292X5 | |
| 27X1.2 | 62X2 | 118X4 | 177X4 | 235X5 | 295X5 | |
| 28X1.5 | 63X2 | 120X4 | 178X4 | 237X5 | 297X5 | |
| 29X1.5 | 65X2.5 | 122X4 | 180X4 | 238X5 | 298X5 | |
| 30X1.5 | 67X2.5 | 125X4 | 182X4 | 240X5 | 300X5 | |
| 31X1.5 | 68X2.5 | 127X4 | 185X4 | 242X5 | 305X6 | |
| 32X1.5 | 70X2.5 | 128X4 | 187X4 | 247X5 | 310x6 |
Photo:
-Packing:
1.packing:small box /bulking packing/roll packing+carton+pallets
Usually,48cartons /pallets
-Shipping
1.by express: DHL,FEDEX,UPS,TNT,ARAMEX,etc
2.by sea
3.by air
1.sample :free sample is ok
2.make your logo label
3.packing as your requirements
4.OEM can be accepted
petitive price and high quality
Application:
1.Question: what's you material, OEM is ok ?
Answer:we have carbon steel and stainless steel material , any material can make as your requirements .
OEM is accepted .if large qty there is no need mould fee .
2.Question: free sample is ok ?
Answer:sample for standard is free. sample fee is need for non-standard . but freight you need to pay for it .
of course , you can save the sample fee and freight if you place the order . special sample will send you to test. then after confirmed large prouction will start.
3.Question:How is your packing ?
Answer:usually about inner packing we have bulking packing(polybag packing) ,roll packing ,small box packing ,then put into the carton , last packed into the pallets .
4.Question: How is your quality.
Answer: we can offer you the realted material report or quality export as your requirement.
Sample can offer you to test. about the the quality we can promise you the quality after the goods selled six month .
if some wrong happens cause the goods quality ,we will offer you the best solution.
Any questions please send us the email or call me . Thanks and have a nice day!
