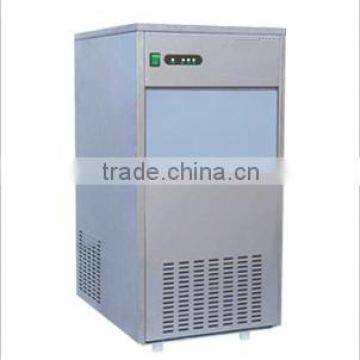

Commercial Flake Ice Maker

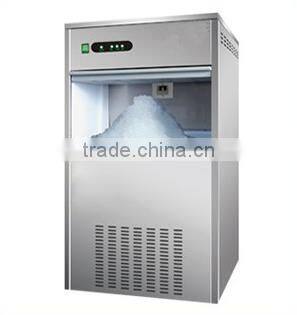

         Commercial flake ice maker

1. prime-quality stainless crust anti-rust, integrated structure, saving space.
2. Efficient Freon-free exported/134a compressor, complying with requirement of RoHs environmental     demand.
3. TUV, VDE approving parts & accessories, reliable and safe
4. All process adopt full computer control, with imported computer chip, reliable action, stable operation
5. Italy technique Haitec secondary reducer, in addition,heat dissipation hole and fan are on the top of machine.
6. Ice maker compressor has pattern technique, lifting efficiency and output
7. Ice maker of spiral hob extrusion type, has compact structure, separating ice and water.
8. Unique water inlet system promise no residual water, saving water and energy
9. Monitor show following condition, overload ice ,lacking water, over cold , error warning and so on protection function
10. Finished ice is fine particals, which can be into narrow gap and have rapid cooling speed, as well as good efficiency of water bath
11. Before selling, the machine shall undergo properties testing and debugging for a long time, promising it’s high quality.
12. Widely suitable for hospital, school, laboratory, Scientific Research Institute ,and where supplying fresh foods.




    Model	Production in 24h(kg/24h)	Storage capacity(kg)	Kw	The compressor Refrigerant	Size(W*D*H)	Weight net gross	Water consumption
    BNS-20	20	10	180w/220v	Freon-free exported/134a	330*470*605	32/36	≤0.8
    BNS-30	30	10	180w/220v	Freon-free exported/134a	330*470*605	32/36	≤1.2
    BNS-40	40	15	280w/220v	Freon-free exported/134a	380*543*722	40/45	≤1.6
    BNS-50	50	15	280w/220v	Freon-free exported/134a	380*543*723	40/46	≤2.0
    BNS-60	60	25	420w/220v	Freon-free exported/134a	548*612*883	55/60	≤2.5
    BNS-70A	70	25	420w/220v	Freon-free exported/135a	548*612*884	57/62	≤2.9
    BNS-70B	70	35	420w/220v	Freon-free exported/136a	500*611*945	70/76	≤2.9
    BNS-85A	85	25	420w/220v	Freon-free exported/137a	548*612*883	57/62	≤2.9
    BNS-85B	85	35	420w/220v	Freon-free exported/138a	500*611*945	70/62	≤2.9
    BNS-200	200	55	805w/220v	Freon-free exported/138a	680*611*1100	85/91	≤8.3
    BNS-250	250	55	1370w/220v	Freon-free exported/138a	680*611*1101	98/104	≤10.4
