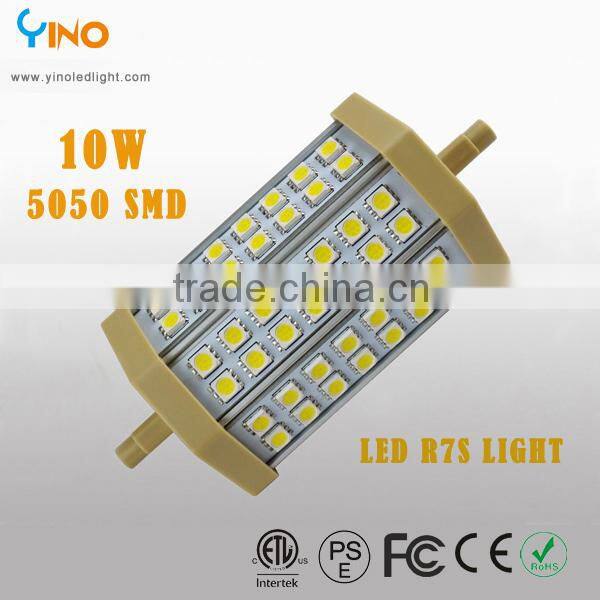

10W LED R7S Lamp With 5050 Chip

10W LED R7S Lamp With 5050 Chip thumbnail-1
10W LED R7S Lamp With 5050 Chip photo-1
US$ 8 - 30 MOQ: 10 Pieces
Key Specifications
Get Latest Price
LED Light Source:
5050
Type:
R7S
Input Voltage(V):
85-265
Contact Supplier Request Quote Chat Now
Shenzhen Yino Tech Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source 5050
Type R7S
Input Voltage(V) 85-265
Lamp Power(W) 10
Lamp Luminous Flux(lm) 780-830
Lamp Luminous Efficiency(lm/w) 80
Color Temperature(CCT) Pure White
Working Temperature(℃) -20, 40
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
Certification CCC, CE, EMC, PSE
Base Type R7S
Place of Origin Guangdong, China
Brand Name YN
Model Number YN-R7S-5050-10W

Specifications

LED Source: 5050 SMD
LED Quantity: 42pcs
Luminous: 780-830lm
Three years warranty
48 hours aging test



Product Description



Light Power:10Watts
LED Source: 5050 SMD
LED Quantity: 42pcs
Input Voltage: 85-265V AC
Materials: Extruded aluminum
Power Factor: >0.95
CCT: 3000/4500/>6000K
Luminous:    780-830lm
Lamp Base:    R7S
Bean Angle:   200°
Lifespan:        50,000hours
Warranty:        3 years

Application: Ideal for replacement traditional halogen lamp in hotel,Undergroup store,Park,Car park,Tunnel,Coffee House and so on.


1.Beam angle is as wide as 200,Adapt to a variety of applications
2.Easy to be installed,LED r7s directly replace  traditional halogen lamp,lower installation cost
3. Product stability
4.Isolated Constant current Power Supply inside
5.High quality Rubycon capacitors
6.Extruded aluminum is good at heat dissipation,surface temperature usually stay below 65°
7.Taiwai Epistar high brightness smd chips,Luminous efficiency reach 85lm/w

10W LED R7S Lamp with 5050 chip



LED R7S Lamp with 3014 chip
Model No LED Source Led Quantity Input Voltage Luminous Bean Angle
YN-R7S-3014-5W 3014 SMD 48pcs 85-265V AC 400-460 lm 180°
YN-R7S-3014-8W 3014 SMD 72pcs 85-265V AC 650-720 lm 180°
YN-R7S-3014-12W 3014 SMD 120pcs 85-265V AC 1000-1070 lm 200°
YN-R7S-3014-15W 3014 SMD 144pcs 85-265V AC 1200-1320 lm 200°
LED R7S Lamp with 5050 chip
Model No LED Source Led Quantity Input Voltage Luminous Bean Angle
YN-R7S-5050-5W 5050 SMD 36pcs 85-265V AC 560-640 lm 200°
YN-R7S-5050-10W 5050 SMD 42pcs 85-265V AC 780-830 lm 200°
YN-R7S-5050-12W 5050 SMD 54pcs 85-265V AC 900-1010 lm 200°
YN-R7S-5050-13W 5050 SMD 60pcs 85-265V AC 950-1040 lm 200°
YN-R7S-5050-15W 5050 SMD 72pcs 85-265V AC 1200-1320 lm 200°
LED R7S Lamp with 5630 chip
Model No LED Source Led Quantity Input Voltage Luminous Bean Angle
YN-R7S-5630-8W 5630 Samsung SMD 24pcs 85-265V AC 680-700 lm 180°
YN-R7S-5630-14W 5630 Samsung SMD 48pcs 85-265V AC 1250-1300 lm 180°
YN-R7S-5630-16W 5630 Samsung SMD 60pcs 85-265V AC 1450-1550 lm 180°
YN-R7S-5630-20W 5630 Samsung SMD 78pcs 85-265V AC 1800-1930 lm 180°





10W LED R7S Lamp with 5050 chip10W LED R7S Lamp with 5050 chip10W LED R7S Lamp with 5050 chip



Installation Case

 10W LED R7S Lamp with 5050 chip





Application

 10W LED R7S Lamp with 5050 chip





Our Services



1. Your inquiry related to our products or prices will be replied in 24hrs.

2. ODM , any your customized lightings we can help you to design and put into product.

3. Distributorship are offered for your unique design and some our current models

4. Protection of your sales area , ideas of design and all your private information

5.100% QC inspection before shipment, control quality for every production process.

6. Payment term: T/T 30% deposit after order confirmed, the balance after goods ready

    before shipping. Paypal or Western Union for samples order.

7. Lead tiem: 3-5 days for samples order and 7-15 days for big quantity.

8.Shipping port: Shenzhen, China

9.MOQ: 1 piece for test is also welcome.

10.OEM&ODM are available.





Certifications



10W LED R7S Lamp with 5050 chip





Company Information

 10W LED R7S Lamp with 5050 chip

Welcome to contact me for further information of our Welcome to contact me for further information of our LED R7S Lamp manufacturer in china :
Contact: Eric

Email: eric at

Skype: echo123
Tel: +86-0755-3664 8195

Thanks for viewing. We are looking forward to our cooperation soon.
