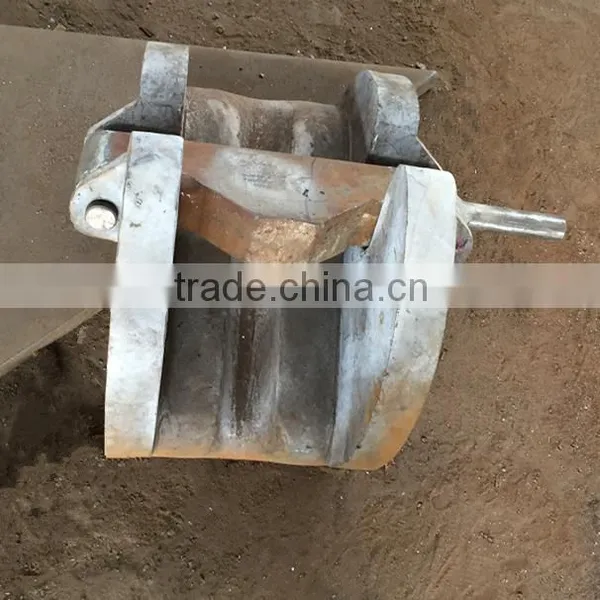

Marine JIS Standard Casting Bar Type Chain Stopper

Marine JIS Standard Casting Bar Type Chain Stopper thumbnail-1
Marine JIS Standard Casting Bar Type Chain Stopper photo-1
US$ 1,000 - 3,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
DTM
Model Number:
Bar Type
Contact Supplier Request Quote Chat Now
Dalian Tiancheng Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao or Dalian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name DTM
Model Number Bar Type
Part Other, Chain Stopper

Specifications

1.Material: ZG200-400,ZG230-450
2.Suitable chain cable Dia. from 17mm to132mm



JIS F2033 Marine Roller Bar Type Chain Stopper

Chain stopper is disposed between the connecting tube and anchor windlass, anchor for fixing to prevent the chain from slipping out. The role of chain stopper

Anchor devices abandon the role of the chain

Model: roller bar type chain stopper, cast steel bar chain stopper and cast lever chain stopper

We supply all kinds of chain stopper .Quality management and product strict according to IACS requirement.



Basic information

Product: JIS F2033 Marine Roller Bar Type Chain Stopper
Model no.: Roller Bar Type
Material: Cast steel
Surface: Polished, galvanized or bitumen painted
Type : Roller bar type
Chain cable diameter  : 70-132mm
Weight : 1000kg-5080kg
Certificate: LR, BV, ABS, GL,NK, CCS
Application: Chain Stopper is a device between anchor windlass and hawsepipe, it can fix the anchor chain prevent it roll out. .When the vessel mooring ,chain stopper transport the pull strength of anchor and chain to vessel, can reduce the working load protect the anchor windlass. When sailing it stand the anchor weight and inertial force.
Feature: Withstand 80% of chain cable's breaking load



Marine JIS standard casting bar type chain stopper



Other Types

JIS F2002-1976 cast iron Bar Type Chain Stopper

JIS F2015-1987 Cast Steel Bar Type Chain Stopper

JIS F2023-1976 Cast Steel Bar Type Chain Stopper

JIS F2031 Pawl Type Chain Stopper

JIS F2032 Roller Pawl Type Chain Stopper

JIS F2033 Roller Bar Type Chain Stopper type B

OCIMF Type sOtheringle point mooring Chain Stopper

CB286-84 cast steel lever chain stopper

GB/T 3844-2000 Marine roller lever chain stopper

GB/T 178-96 spiral type chain stopper/ screw type chain stopper

Smith towing bracket for chain stopper

OCIMF Type Towing Bracket



Marine JIS standard casting bar type chain stopperMarine JIS standard casting bar type chain stopper



Update products all the time,and your demands can be perfectly met.

Control the quality strictly and price is competitive.

Usually send out within 35 working days after we got your payment.

Warmly welcome OEM or ODM orders.

Marine JIS standard casting bar type chain stopper
