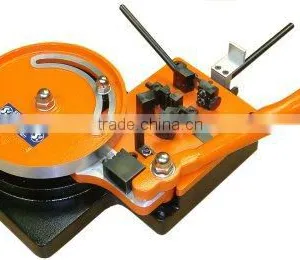

Help CenterOuter Jacket and Core Wire Stripping Machine - Model D2
Related Products
Specifications
A quick and simple solution to multicore stripping suitable for production wire stripping.By a single pull on the handle precision die blades strip off the outer jacket and secondary blades strip the inner conductors to preset dimensions.
The D2 is effective with PVC, neoprene, rubber and comparable insulations.
The outer jacket is stripped by selecting the nearest size of outer jacket die blades from the four position die blade set and setting the rear length stop to the correct strip length.
The outer jacket blade holder is adjustable for cable diameter variations.

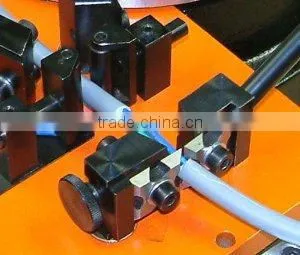

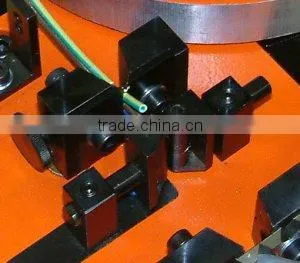

As the outer jacket is stripped the inner conductors are drawn through a set of pinch rollers which hold them in position for stripping by a set of flat blades in the secondary stripping operation.
These blades are also adjustable for conductor diameter and are set to operate at the required position by adjustment of a cam operating lever.
Once set the cable can just be laid into the unit and with a single pull of the handle outer jacket and inner conductors are stripped with a cycle time of a few seconds.
TECHNICAL DATA
CABLE DIAMETER RANGE |
: | 3 ~ 10mm OD - Up to 7.5mm Core Size |
STANDARD BLADE SET HOLE SIZES |
: | 3mm, 4mm, 5mm & 6mm - Up to 7.5mm Maximum Speicals |
SPECIAL BLADE SETS |
: | Normally within 24hours - contact Series 4 directly |
SIZE |
: | 380mm x 275mm x 120mm |
WEIGHT |
: | 4.25kg Net (4.75kg Gross) Box Dimensions 470mm x 320mm x 220mm |
| MAXIMUM OUTER JACKET STRIP | : | 165mm (Longer if no inner strip required) |
| MACHINE WARRANTY | : | 12 Months |
