Specifications
1.Width: 60 mm2.Dimension: 115 x 215 x 130mm
3.Weight: 3.0 Kg
4.Warranty: 12 Months
5.Power Input: 220v - 50/60 Hz 25W
Manufacturers & Distributors, Series 4 Limited, was established in 1988 with the sole aim of offering the best possible quality and price combination of production equipment to the electronics and associated industries. Now occupying 3 large units, we have been able to expand our product range and engineering facilities. We are also proud to work with our new international distributors in Australia, Indonesia and the Middle East. We manufacture and sell a large range of production equipment, electric and pneumatic screwdrivers and other assembly tools.
Product Types:
1. Wire Cutting
2. Wire Feeding Equipment
3. Wire Stripping
4. Enamel Wire Stripping
5. Crimping, etc.
Large Electronic Tape Dispenser:
The new RT-7000 is an electronic tape dispenser for wider tapes with the same functionality as the RT-5000.
It accepts tape widths from 5mm up to 60.0mm wide, 10mm wider than the RT-5000 machine.
The builtin counter allows for either dispensing a set number of strips of material or to keep up with the number of pieces dispensed by the operator.
Dispensing non-adhesive material without an operator is possible!
It cuts lengths from 2mm up to 999mm.

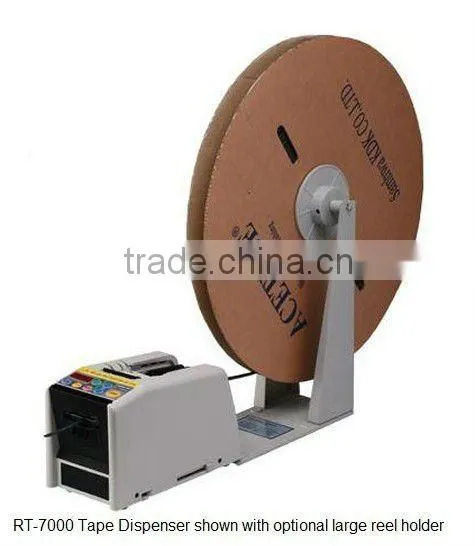

This Unit includes a built in "pull-out" extra support bracket for larger case sealer rolls of tape.
Suitable materials that this unit can cut are cellophane tape, masking tape, wool tape, pp tape, double-faced tape, tube, ribbon, insulation paper, pressure sensitive tape, small equipment wire, heat-shrink tubing, even labels and ribbon as well as other non-sticky materials.
If in doubt please send samples of your material for testing at our works.
The control Panel with 4 digit LED display is easy to use and has the following functions:
A Set A: Adjust the tape length (cm)
B Set B: Adjust the tape length (mm)
C SELECT: Set the tape length and cut piece figure, operate P,L mode
D FWD (forward): Feed the tape forward
E START: Feed tape and cut automatically or manually
F REV (reverse): Rewind the tape away from cutting area
H AUTO/MANUAL: Change the operating mode to auto or manual
I LED: Displays the length of the tape
This new tape dispenser offers an innovated and easy repair performance and is designed to be a high-end tape cutter which will improve your performance and efficiency by delivering exact quantities and lengths every time. Ultimately this will save materials and time by eliminating counting errors.
Specification:
| Brand Name | Series 4 |
| Model Number | RT-7000 |
| Place of Origin | Hampshire, United Kingdom |
| Dimension | 115 x 215 x 130mm |
| Weight | 3.0 Kg (Gross - 3.5kg) |
| Power Input | 220v - 50/60 Hz 25w (110v by request) |
| Warranty | 12 Months |
| Dispensing Width | 50mm |
| Minimum Order Quantity | 1 Piece/Pieces |
| Port | Southampton |
| Packaging Details | Standard Packaging |
| Delivery Time | Please enquire |
| Payment Terms | D/P,T/T,Credit Card, Paypal |
| Supply Ability | Enough |
