Pneumatic Radial Component Cutter - TP/LN100 & TP/LN500

Pneumatic Radial Component Cutter - TP/LN100 & TP/LN500 photo-1

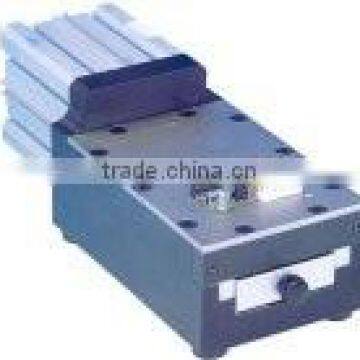

Pneumatic Radial Component Cutter - TP/LN100 & TP/LN500 photo-2
Pneumatic Radial Component Cutter - TP/LN100 & TP/LN500 photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Model Number:
TP/LN100, TP/LN500
Payment & Shipping
Payment Methods:
Port of Shipment:
Southampton
Delivery Detail:
Delivery time depends on order quantity.
Model Number TP/LN100, TP/LN500

The pneumatic machine TP/LN-100 is used for cutting the leads of loose radial components. It was designed to adapt to a very wide range of radial parts.

The upper stationary plate determines the cutting height; the standard is 3.2mm.

Additional plates to increase the height can be supplied upon request starting from 0.5mm.

The pneumatic foot pedal performs a quick cut of the leads, without any stress to the components.

Plates with a special grid pattern can be provided upon request.

The unit lateral cuts most common pitches to allow easy handling of warped leads.

Note: Minimum plate thickness 2.4mm (smaller by selective milling on the top plate).



Model TP/LN100 Specifications
  MM INCH Pneumatic Radial Component Cutter - TP/LN100 & TP/LN500
Min Max Min Max
L Fixed 3.2mm** Fixed 0.125"**
d 0.3 1.0 0.011 0.039
**Note fixed plate thickness - 3.2mm other sizes on request.






The pneumatic machine TP/LN-500 is used for cutting the leads of loose radial components by using a guillotine type lower blade.

This model can handle any kind of components regardless of the diameter, pitch or form.

The pneumatic foot pedal which performs a quick cut of the leads, without any stress to the components.

The upper plate which is supplied as standard with the machine and determines the cutting height, which is 3.2mm.

Additional plates to increase this height can be ordered on request, starting from 0.5mm.

The standard grid pattern accommodates most types of components. Special grid pattern plates can be provided on request.

Note: Minimum plate thickness 2.4mm (smaller by selective milling on the top plate).





Model TP/LN500 Specifications
  MM INCH Pneumatic Radial Component Cutter - TP/LN100 & TP/LN500
Min Max Min Max
L Fixed 3.2mm** Fixed 0.125"**
d 0.4 1.0 0.015 0.039
**Note fixed plate thickness - 3.2mm other sizes on request.
