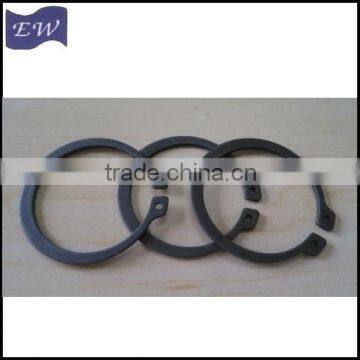

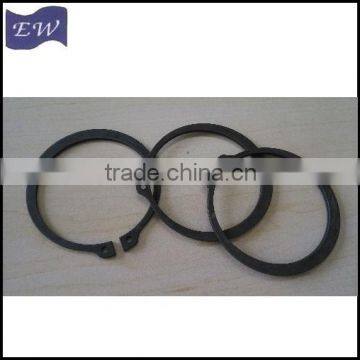

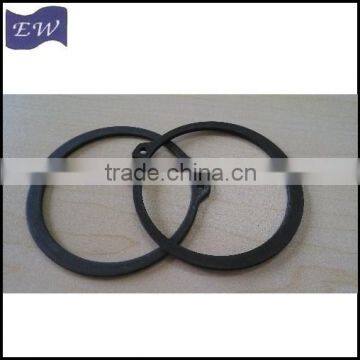

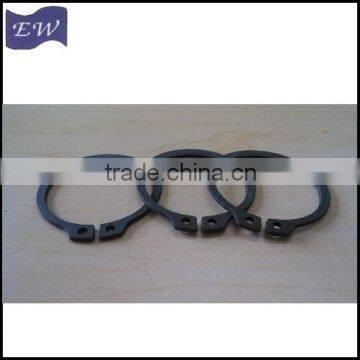

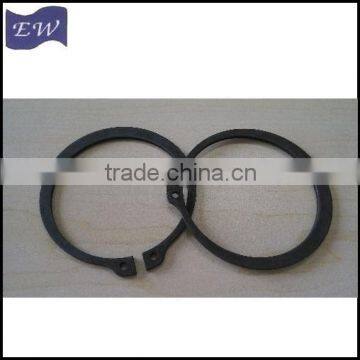

Help Center72x2.5mm Rertainer Clips for Housing Shafts ( DIN471)
Related Products
-
45mm Internal Retaining Rings for Bore (DIN472 )US$ 0.001 - 30MOQ: 10 Pieces -
S-type External Inner Shaft Retainer Ring (DIN471/D1400)US$ 0.001 - 30MOQ: 10 Pieces
-
68mm Circlips /external Circlip DIN471/ISO3075US$ 0.001 - 30MOQ: 10 Pieces
-
95mm Metric External Snap Rings (DIN471 )US$ 0.001 - 30MOQ: 10 Pieces
-
Standard External Circlips for European (DIN471/D1400)US$ 0.001 - 30MOQ: 10 Pieces
Specifications
72x2.5mm rertainer clips for housing shafts ( DIN471)1.material: 65Mn steel,SS304, SS316,etc
2.size:M3-M500
3.various kinds
72x2.5mm rertainer clips for housing shafts ( DIN471)
1.material: Carbon spring steel ( Mn65, 50CRV4, C67, SK5), Stainless steel (SS304) etc
2.size:M3-M500
3.standard: GB, DIN, ISO, ANSI/ASTM, B7, BS, JIS etc
4.model:DIN471,DIN472,DIN6799,M1308,M1408,N1308,D1300,D1400,D1460,D1500,ETC
5.size:m3-m500
6.finish:black ,plain,zinc ,plain,etc
7.OEM accepted
petitive price and high quality
9.main market: Italy,England,Russia,Turkey,America,Canada,Brazil, Argentina,Peru,Ecuador,South Africa, Australia, New Zealand, Iran, etc
10.application: piston wrist pins , drive shafts ,hand tools ,power tools ,agricultural machinery,torque converters,speed reducer,nuclear equipment ,hinge pins,toys, pumps ,solenoids,electric motors ,gear retaines ,carburetor assemblies ,etc
detaied size :
| 3X0.4 | 33X1.5 | 72X2.5 | 130X4 | 188X4 | 248X5 | 315X6 |
| 4X0.4 | 34X1.5 | 75X2.5 | 132X4 | 190X4 | 250X5 | 320X6 |
| 5X0.6 | 35X1.5 | 77X2.5 | 135X4 | 192X4 | 252X5 | 325X6 |
| 6X0.7 | 36X1.75 | 78X2.5 | 137X4 | 195X4 | 255X5 | 330X6 |
| 7X0.8 | 37X1.75 | 80X2.5 | 138X4 | 197X4 | 257X5 | 335X6 |
| 8X0.8 | 38X1.75 | 82X2.5 | 140X4 | 198X4 | 258X5 | 340X6 |
| 9X1 | 39X1.75 | 85X3 | 142X4 | 200x4 | 260X5 | 345X6 |
| 10X1 | 40X1.75 | 87X3 | 145X4 | 202X5 | 262X5 | 350X6 |
| 11X1 | 41X1.75 | 88X3 | 147X4 | 205X5 | 265X5 | 355X6 |
| 12X1 | 42X1.75 | 90X3 | 148X4 | 207X5 | 267X5 | 360X6 |
| 13X1 | 44X1.75 | 92X3 | 150X4 | 208X5 | 268X5 | 365X6 |
| 14X1 | 45X1.75 | 95X3 | 152x4 | 210X5 | 270X5 | 370X6 |
| 15X1 | 46X1.75 | 97X3 | 155x4 | 212X5 | 272X5 | 375X6 |
| 16X1 | 47X1.75 | 98X3 | 157X4 | 215X5 | 275X5 | 380X6 |
| 17X1 | 48X1.75 | 100X3 | 158X4 | 217X5 | 277X5 | 385X6 |
| 18X1.2 | 50X2 | 102X4 | 160X4 | 218X5 | 278X5 | 390X6 |
| 19X1.2 | 52X2 | 105X4 | 162X4 | 220X5 | 280X8 | 395X6 |
| 20X1.2 | 54X2 | 107X4 | 165X4 | 222X5 | 282X5 | 400X6 |
| 21X1.2 | 55X2 | 108X4 | 167X4 | 225X5 | 285X5 | 420X7 |
| 22X1.2 | 56X2 | 110X4 | 168X4 | 227X5 | 287X5 | 460X7 |
| 23X1.2 | 57X5 | 112X4 | 170X4 | 228X5 | 288X5 | |
| 24X1.2 | 58X2 | 115X4 | 172X4 | 230X5 | 290X5 | |
| 25X1.2 | 60X2 | 117X4 | 175X4 | 232X5 | 292X5 | |
| 27X1.2 | 62X2 | 118X4 | 177X4 | 235X5 | 295X5 | |
| 28X1.5 | 63X2 | 120X4 | 178X4 | 237X5 | 297X5 | |
| 29X1.5 | 65X2.5 | 122X4 | 180X4 | 238X5 | 298X5 | |
| 30X1.5 | 67X2.5 | 125X4 | 182X4 | 240X5 | 300X5 | |
| 31X1.5 | 68X2.5 | 127X4 | 185X4 | 242X5 | 305X6 | |
| 32X1.5 | 70X2.5 | 128X4 | 187X4 | 247X5 | 310x6 |
Photo:
-Packing:
1.packing:small box /bulking packing/roll packing+carton+pallets
Usually,48cartons /pallets
-Shipping
1.by express: DHL,FEDEX,UPS,TNT,ARAMEX,etc
2.by sea
3.by air
1.sample :free sample is ok
2.make your logo label
3.packing as your requirements
4.OEM can be accepted
petitive price and high quality
1.Question: what's you material, OEM is ok ?
Answer:we have carbon steel and stainless steel material , any material can make as your requirements .
OEM is accepted .if large qty there is no need mould fee .
2.Question: free sample is ok ?
Answer:sample for standard is free. sample fee is need for non-standard . but freight you need to pay for it .
of course , you can save the sample fee and freight if you place the order . special sample will send you to test. then after confirmed large prouction will start.
3.Question:How is your packing ?
Answer:usually about inner packing we have bulking packing(polybag packing) ,roll packing ,small box packing ,then put into the carton , last packed into the pallets .
4.Question: How is your quality.
Answer: we can offer you the realted material report or quality export as your requirement.
Sample can offer you to test. about the the quality we can promise you the quality after the goods selled six month .
if some wrong happens cause the goods quality ,we will offer you the best solution.
Any questions please send us the email or call me . Thanks and have a nice day!
