Specifications
1.Make any shape of cups,trays,boexes2.PLC control
3.Top quality
4.High capacity
Full Automatic Plastic Cup Machine Price

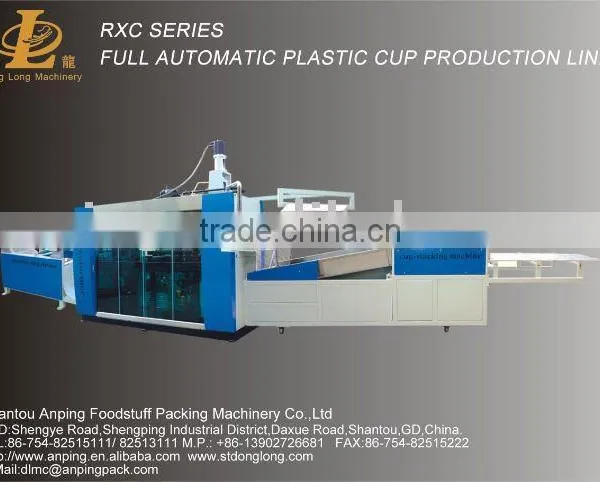

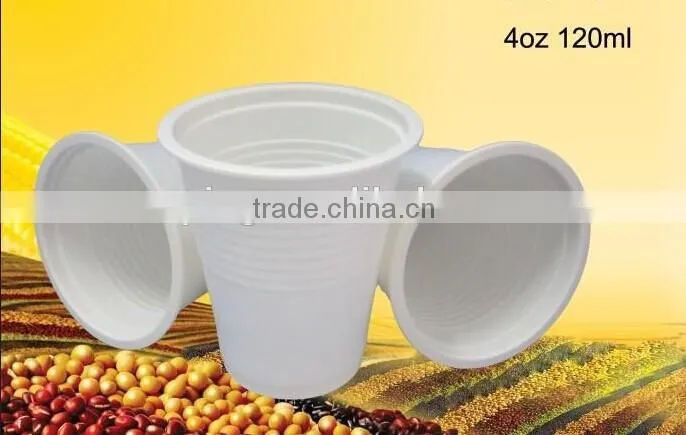

The line is formed of Cup Making Machine and Cup Stacking Machine. Using the plastic-sheet heating to a certain temperature after pressing the heat-sheet, many kinds of cup products can be made by the Cup Making Machine, for example, the soft-drink cup, milk cup, jelly cup, ice-cream and disposable cup. The come-out cups go to the Stacker for Automatic Stacking.
Key Features:
- The machine is controlled by PLC, using the Touch-screen,
- Servo Motor used in the Sheet-feeding Device & Pulling Device.
- The advantage of manpower saved and low cost in production.
- High in Automatic Production level, fast speed, forming square area is large.
Main Technical Parameters:
| Power Supply | 3-phase 380V 50Hz |
| Rated Power | 80kw |
| Forming Style | Cylinder |
| Range of Sheet | PP, PS, PVC, PET |
| Thickness | 0.4-1.6mm |
| Width | 500-600mm |
| Forming Area | 600×320mm |
| Forming Depth | 0-125mm |
| Speed | 20-25cycle/min |
| Air Consumption | 2M³/M(0.6-0.7Mpa) |
| Water Consumption | 2.5M³/H |
| Dimension | 7000×1500×2500mm |
| Weight | 5T |
Main Brand for Electrics and Pneumatics:
1.SIEMENS
2.OMRON
3.MITSUBISHI
4.FUJI
5.FESTO
6.SMC
7. TAIWAN
Packing: Wooden-box
Delivery Time: Within 75days from the date of receipt 30% down payment of T/T or receive L/C
Port of Loading:Shantou Port
1.offer technical support
2.vedio debugging is available
service oversea is available
4. shipment arrangement is available
5. design for customers's request
6. OEM is welcome
7. customer's requst is welcome , any question will be replied in time
We are a leading manufacturer specialized in this field for more than 30 years,all of our clients speak highly of our machine quality level. Our factory is equipped with advanced integrated machine tools that enable us to produce high-quality, customized machines. We always strive to produce the most cost-effective and high-quality machinery to deliver total customer satisfaction. We export approximately 60 percent of our products to Southeast Asia, the Middle East, Africa and South America.All our Series products obtained CE certification.Besides, we can handle, design and assist you to build your package lines. Also, we can assist you to find supplier of container, tray, and film or other machines.We are able to offer you with best price and high quality with our accumulated technique. If you are interested in our machine, please contact us without any hesitation.
