Home > Instruments & Meters > Physical Measuring Meter > Hardness Tester > LXD-A/C/D Electronic Digital Shore Hardness
LXD-A/C/D Electronic Digital Shore Hardness
Negotiable
MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
OEM
Model Number:
digital lxd-A
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Shanghai, China
Brand Name
OEM
Model Number
digital lxd-A
Specifications
1,LXD-A/C/D2,high quality low price
3,hot sale portable type
4,electronic digital shore hardness
| Item No. | Calibration value | Measure range | Needle stroke | Needlepoint size |

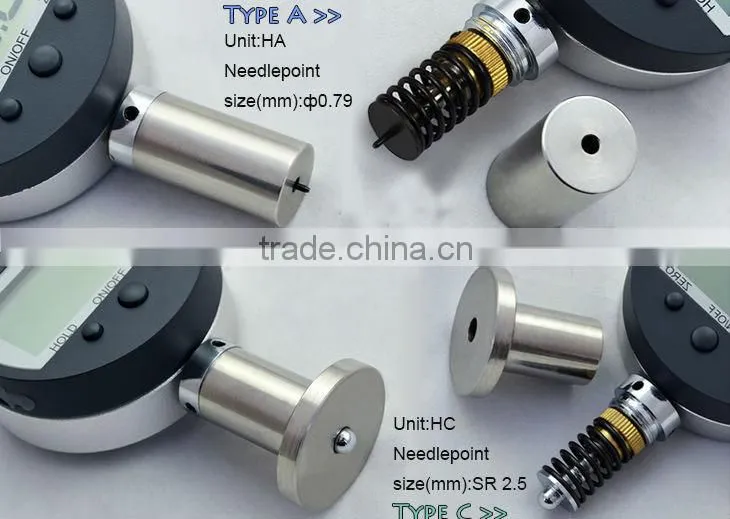

| LX-A-2 | 0~100HA | 10~90 HA | 2.5mm | Φ0.79 mm |
| LX-C-2 | 0~100HC | 10~HC | SR 2.5 mm | |

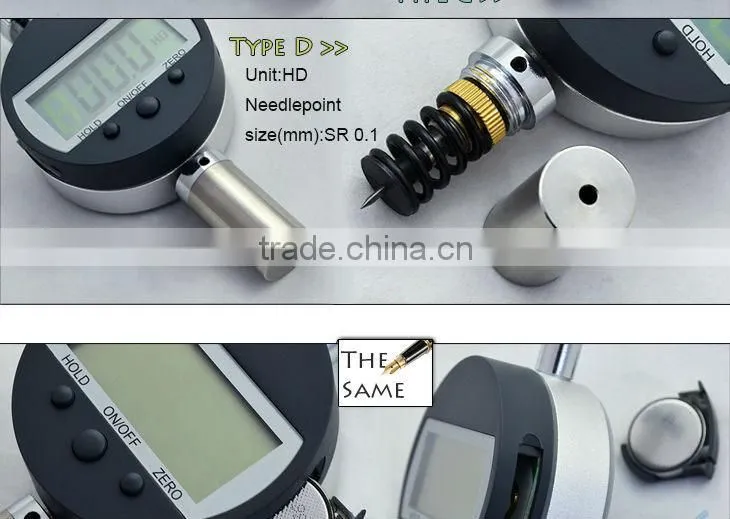

| LX-D-2 | 0~100HD | 20~90 HD | SR 0.1 mm |
Function:
Shaw rubber hardness gauge is an apparatus to measure vulcanized rubber and plastic products.

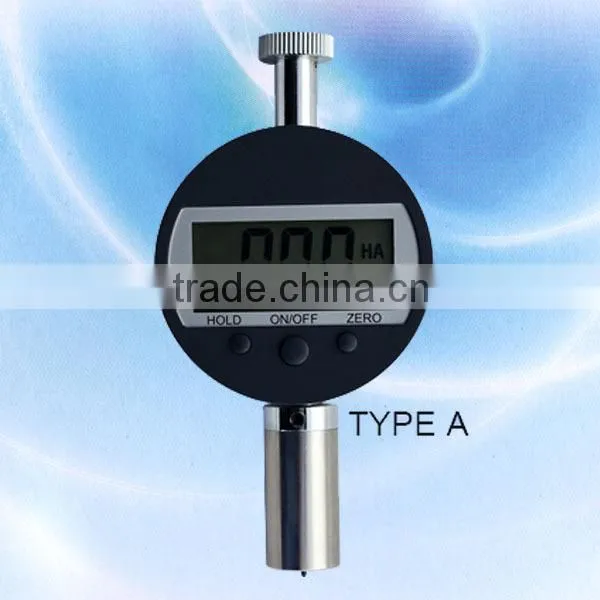

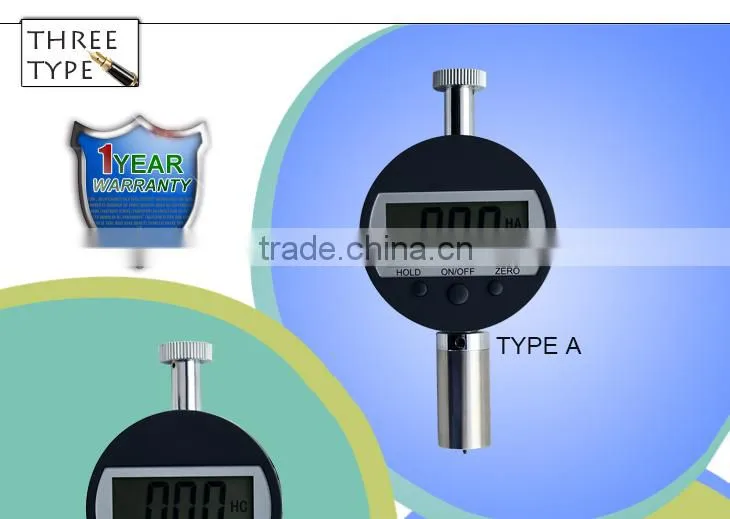

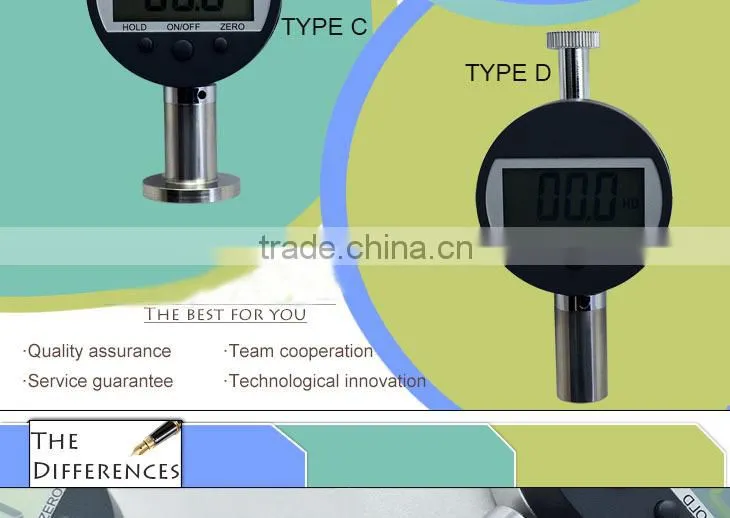

This apparatus has three models of Type A, Type C and Type D, and each model is subdivided into two types of single pointer and double pointer.
Type A and D respectively are applicable to the testing of low and medium hardness, and high-hardness materials.
Type C applies to the testing of microporous material which is used to make shoes, with compression rate 50 percent, stress 0.049 MPa or above, and this kind of material is made of rubber plastic and has blister in plastic.
Type A and D respectively are applicable to the testing of low and medium hardness, and high-hardness materials.
Type C applies to the testing of microporous material which is used to make shoes, with compression rate 50 percent, stress 0.049 MPa or above, and this kind of material is made of rubber plastic and has blister in plastic.
This hardness gauge conforms to the regulations of GB/T531-99, GB2411-80, hg/t2489-93, JJG304-2003.
Attention:
Type A: applicable to general rubber, synthetic rubber, vulcanized rubber, soft rubber, leather, wax, etc.
Type C: applicable to the hardness test of rubber microporous material.
Type D: applicable to hard rubber, hard resin, acrylic, glass, cushiony plastic cement, printing plates, fiber, etc.
Parameter:
