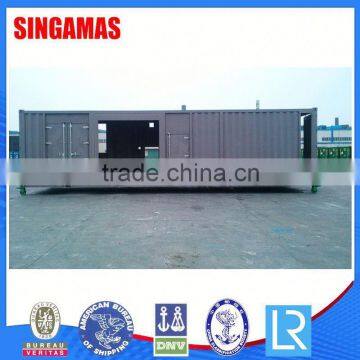

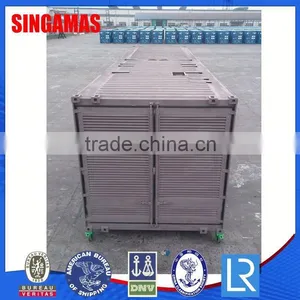

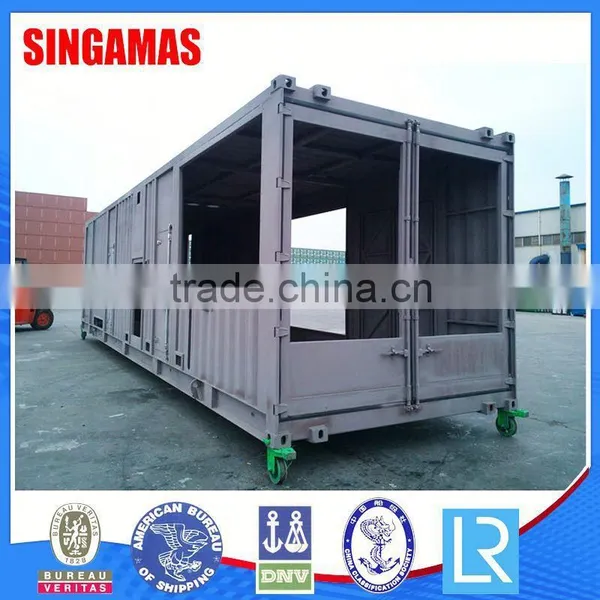

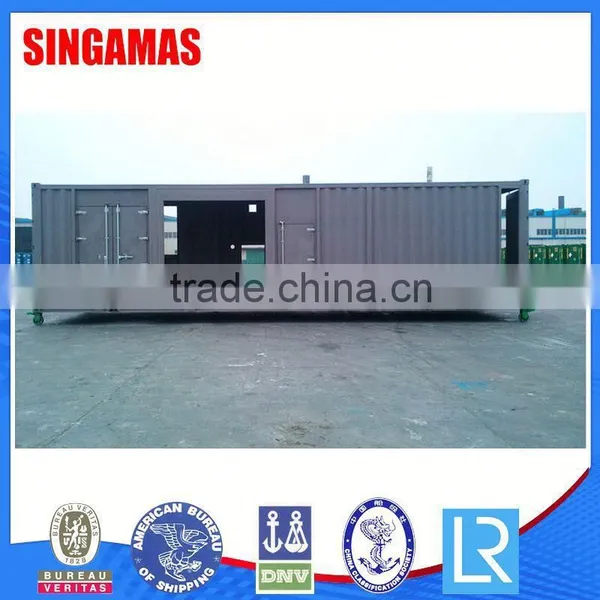

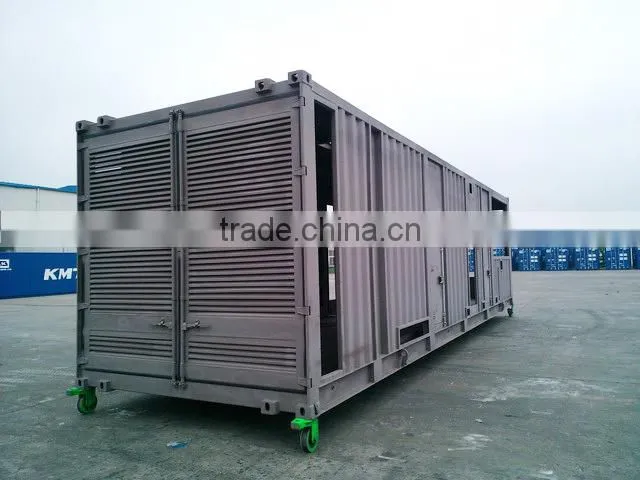

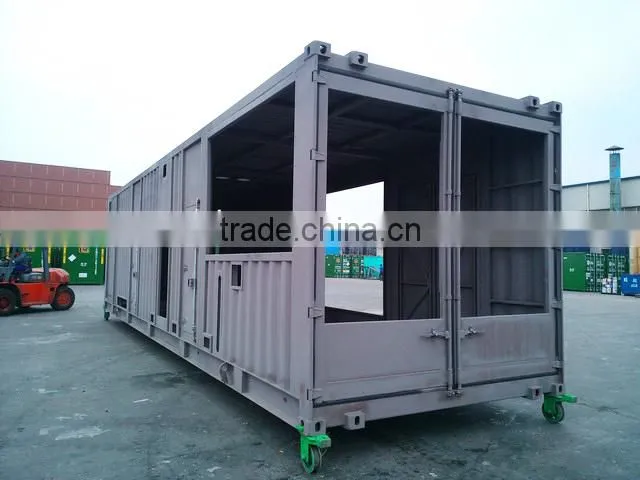

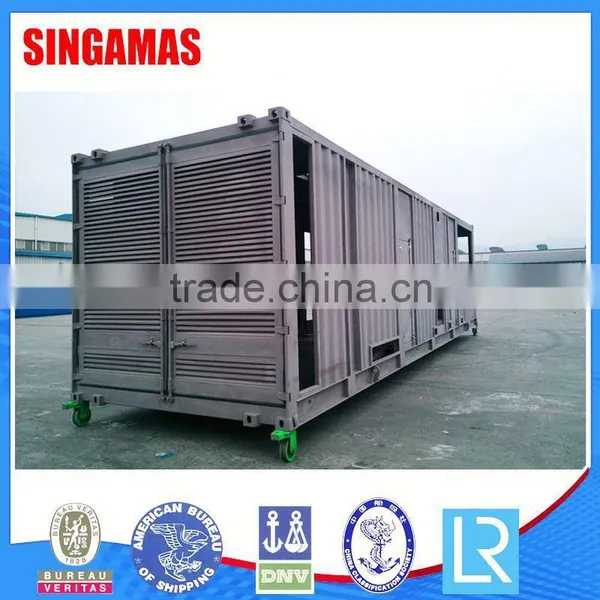

640kw Diesel Generator Container
Product Profile
The shipping containers are made of high steel steel and are able to withstand extreme tempreture ranging from -40 °c to 70°c, and all have been certified by major Classification Society(CCS,BV,ABS,GL) completely conforming to International Standard.
Other Product Specifications:
1)20ft/40ft/40ft hq/45ft hq
2) For general purposes
3) 20' Standard Container Dimension:20' x 8' x 8'6"
4) 40' Standard Container Dimension:40' x 8' x 8'6"
5) 40' hq Standard Container Dimension:40' x 8' x 9'6'
6) 45' hq Standard Container Dimension:45' x 8' x 9'6'
Product Details
Dimension and Capacity
1) Dimension
External: length: 12192 mm width: 3200 mm height: 3200 mm
Internal: length: 11978 mm width: 2990 mm height: 2892 mm
2) Weight
Max Gross Weight: 39,350 Kg
Tare Weight: 9,350 Kg
Max Payload: 30,000 Kg
3) Opening
Side Door opening : width : 920 mm height: 1900 mm
Rear door opening: width: 3088 mm height: 2786 mm
Front door opening: width: 3088 mm height: 2786 mm
4) Allowable Stacking Weight: 192,000 kg
5) Cubic Capacity: 103.57 cu.m
6) Special Feature
1. ISO corner casting located in the position of 40’, good for transport and lifting up.

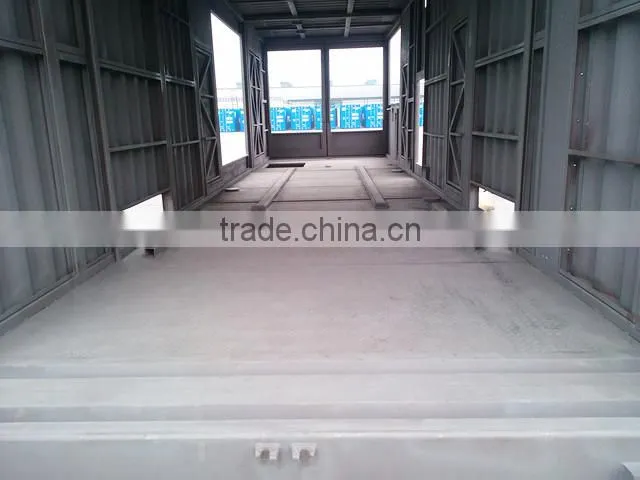

2. Checkered plate in which applied with six devices of Sewage sump tank, Drain hole and Fuel receptacle.
3. Facilities such as Installation plate, Tank mounting bracket, Fire extinguishers fixed frame and Water tank fixed rack applied on the base structure.

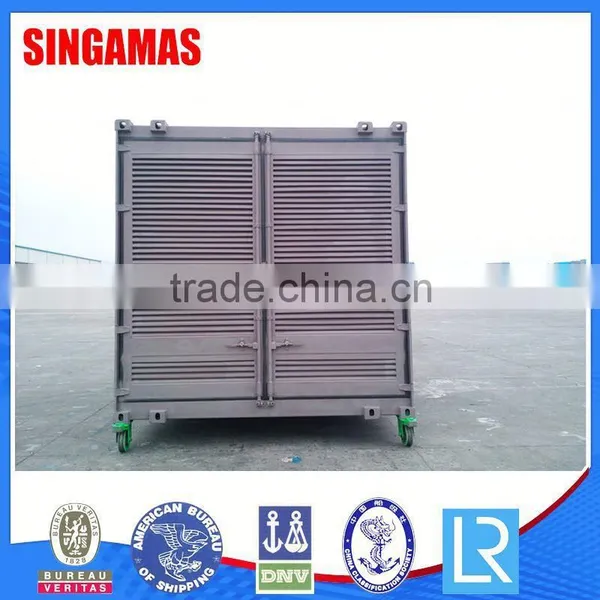

4. Detachable blind window applied on the front end while fixed blind window on the rare end.
5. Two doors in one side while one the other side.
6. Facilities such as sound attenuator-fixing box, alarming apparatus fixed box, Emergency stop installation box and Supply installation box applied on the side panel.
7. Facilities such as Smoke vent joint, Muffler mounting plate, Water-adding mounting plate applied on the roof panel.

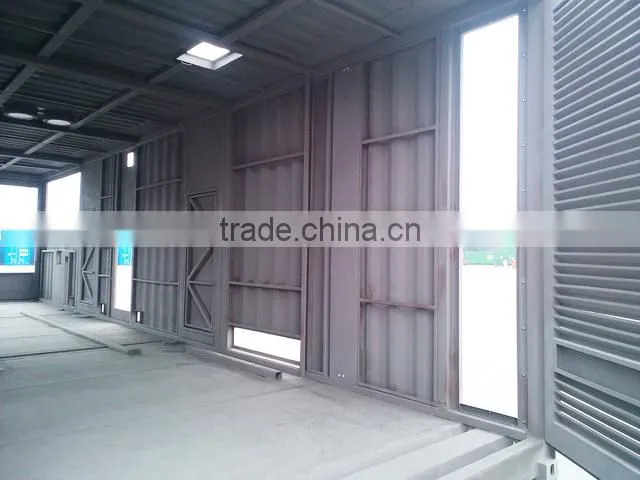

8. Punched metal plate could be applied inside the container and rock wool filled between it and container could be used to heat protection and sound absorption.
