Specifications
It can weld thin, medium, thick low carbon steel and high carbon steel welding, also can be used as automatic welding power.

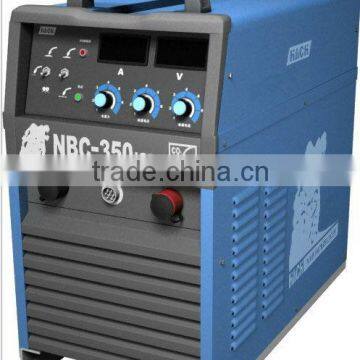

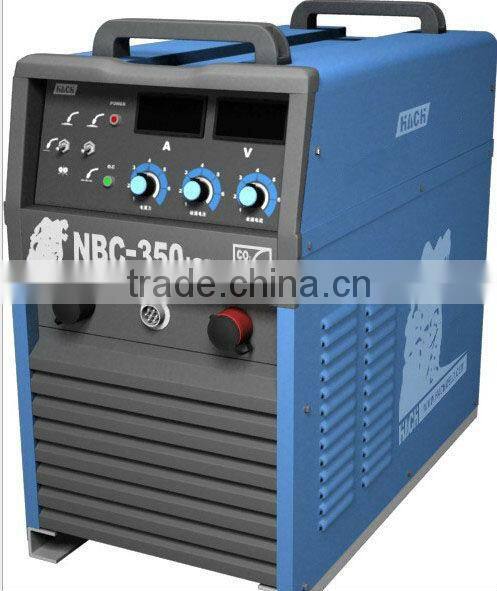

NBC-IGBT Controlled Inverter CO2 Gas-Shielded Welder
Advanced Technology
- IGBT used as switching element.
- It has a unique electronic circuit reactance and can accurately control the welding process of short-circuit transfer and metal transfer, with excellent welding characteristics.
- Adopt ripple control technology, low spatter, and good seam shape.
- Use the PPFC (Passive Power Factor Correction) technology, which has high power factor.
High Reliable Performance
- Used in the ship welding and steel-structure welding industry, with the steady wire feeding, light and convenient, high efficiency energy saving and low noise features.
- Heavy current has high welding efficiency, which greatly enhances the welding speed.
Convenient Design Considering Customers needs
- Special cooling and ventilation design can extend welder’s effective working time, keep IGBT from dust and dew formation, which will enhance the welder’s reliability.
- Automatic compensation function for voltage power grid, good arc starting process, deep bath and high duty cycle.
- With the function of arc ending on/off, adjustable arc starting/ending current, very suitable for automatic welding.
Main Technical Data
Specification |
NBC-200IGBT |
NBC-350 IGBT |
NBC-500 IGBT |
Rated Input Voltage (V) |
AC 380/3 phases |
AC 380/3 phases |
AC 380/3 phases |
Frequency (Hz) |
50/60 |
50/60 |
50/60 |
Rated Input Capacity (KVA) |
6.2 |
12 |
24.4 |
Current Adjustment (A) |
50~200 |
60~350 |
60~500 |
Voltage Adjustment (V) |
15~30 |
14~40 |
16~50 |
Duty Cycle (%) |
60 |
60 |
60 |
Suitable Welding Diameter (mm) |
Φ 0.8~Φ 1.2 |
Φ 0.8~Φ 1.2 |
Φ 1.0~Φ 1.6 |
Insulation Class |
F |
F |
F |
Dimension (mm) |
300×600×570 |
340×640×570 |
340×640×570 |
Weight (kg) |
38 |
43 |
45 |
