Vet Medical Device Multi-parameter Etco2 Monitor

Vet medical device multi-parameter etco2 monitor

Function:

Monitor used to testing parameters:ETCO2,INCO2,pulse rate,respiration rate,temperature SPO2.

The ET-CO2 monitor is a multifunction patient monitor that provides measurements including the SPO2, Temperature, PR,RR, IN-CO2,and ET-carbon dioxide (CO2). This monitor is only suitable for animals and may be applied in general ward, including, but not limited to, ICU, CCU or ambulance and so forth.

Technical Characteristics:

1.test parameters;ETCO2,RR,insp.CO2

2.capnography(CO2),

   units:mmHg;kpa;%

   method:non-dispersive infrared;auto calibrating N2O        compensation:manual;on/off,user selectable

range:0 to 114 mmHg;0 to 15% flow, sample rate: sidestream; 50ml/min Accuracy: ± 2 mmHg or 5% of reading

3. Respiration rate: 2 to 120 bpm(CO2) Resolution:1 breath/min

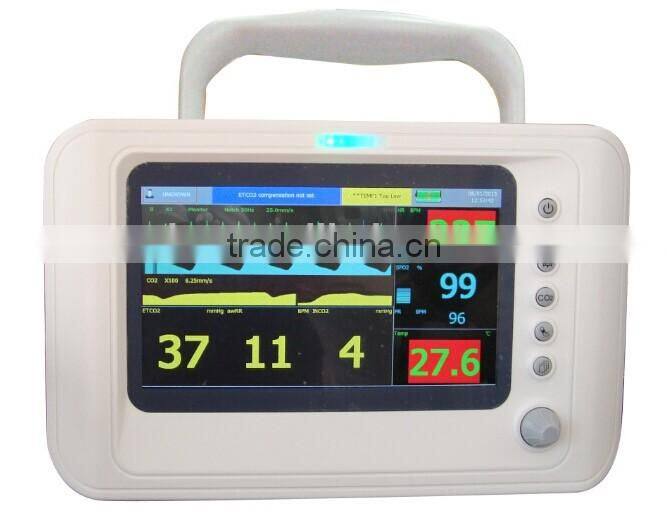

4. interface & Display: membrane activated Rotary Knob: push and rotate, 24 steps/turn Screen: 7.0 inch active color TFT

Resolution:800*480 pixels Waveform types: CO2; Pleth; Sweep speed: 6.25, 12.5, 25mm/s
