What is the Pure Sine Wave Inverter ?
---The pure sine wave series Inverters are suitable for most loads and provide an economical way to get instant AC power anywhere and anytime as long as a battery is handy.
---The inverter converts a DC power source (e.g. from a car, truck, boat or standard battery or solar panels) to 120V/230V AC power. The inverter range is suitable for small solar installations.
Features:
1. Output waveform: pure sine wave
2. High efficiency: >90%
3. DC12V or 24V or 48V input
4. AC100V or AC110V or AC120V/220V /230V /240V output
5. Output frequency: 60HZ or 50HZ
6. Continuous output power: 1500W
7. Peak power: 3000W
8. High-velocity cooling fan
9. Overload protect, over voltage protect, low voltage cut-out, low voltage alarm.
Specification:
| Model | P1500-12-110 | P1500-24-110 | P1500-48-110 | P1500-12-220 | P1500-24-220 | P1500-48-220 |
| Power | 1500W | 1500W | 1500W | 1500W | 1500W | 1500W |
| Peak power | 3000W(5ms) | |||||
| Input voltage | 12V | 24V | 48V | 12V | 24V | 48V |
| Output voltage | 110VAC±10% | 220VAC±5% | ||||
| No-load current | <1.6A(DC13V) | <1.05A(DC26V) | <0.75A(DC52V) | <1.6A(DC13V) | <1.05A(DC26V) | <0.75A(DC52V) |
| Output frequency | 50HZ±1%/60HZ±1% | |||||
| Output waveform | Pure sine wave | |||||
| Output harmonic content | THD<3% | |||||
| Output efficiency | >86%(DC13V) | >88%(DC26V) | >90%(DC52V) | >86%(DC13V) | >88%(DC26V) | >90%(DC52V) |
| Input voltage range | 11V~15V | 22V~30V | 44V~60V | 11V~15V | 22V~30V | 44V~60V |
| Low voltage alarm | 10.5±0.3V | 21±0.6V | 41.8±1.2V | 10.5±0.3V | 21±0.6V | 41.8±1.2V |
| Low voltage shutdown | 9.5±0.2V | 19±0.3V | 38±0.4V | 9.5±0.2V | 19±0.3V | 38±0.4V |
| Over voltage shutdown | 16±0.5V | 31±1V | 65±2V | 16±0.5V | 31±1V | 65±2V |
| Low voltage recovery | 11.8±0.3V | 23.6±0.4V | 47.2±0.8V | 11.8±0.3V | 23.6±0.4V | 47.2±0.8V |
| Over voltage recoverty | 15.7±0.3V | 31.8±0.4V | 63±1V | 15.7±0.3V | 31.8±0.4V | 63±1V |
| Overload shutdown | 120%~125% | |||||
| Protecting function description | Low voltage: Red LED turn on,buzzer alarm,auto recovery | |||||
| Over voltage:Red LED turn on,auto recovery | ||||||
| Overload:Red LED turn on,auto shutdown, restart by hand | ||||||
| Over temperature:Red LED turn on,buzzer alarm,auto recovery | ||||||
| Short circuit:auto recovery | ||||||
| Reverse connection of the battery terminal:blown fuse | ||||||
| Operating temperature | –10°C +40°C | |||||
| Storage temperature | –30°C+70°C | |||||
| Relative humidity | 20%~90%RH No condensation | |||||
| Operating height | 3000m | |||||
| shape size | 364*199*73mm | |||||
| Net weight | 4.3±0.5KG | |||||
| Packing size | 420*240*160mm | |||||
| Gross weight | 5.7±0.5KG | 5.5±0.5KG | 5.38±0.5KG | 5.7±0.5KG | 5.5±0.5KG | 5.38±0.5KG |
Packaging:
1. Standard Export Package or OEM
2. 1PC/CTN, CTN SIZE: 420*240*160mm.
CTN gross weight: 5.5kg, CTN net weight: 4.3kg
Shipping:
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door,
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving,
3. Delivery Time: 1-3 days for samples; 5-25 days for batch goods.
We can do OEM/ODM for all customers, and inverter's warranty are 2 years.

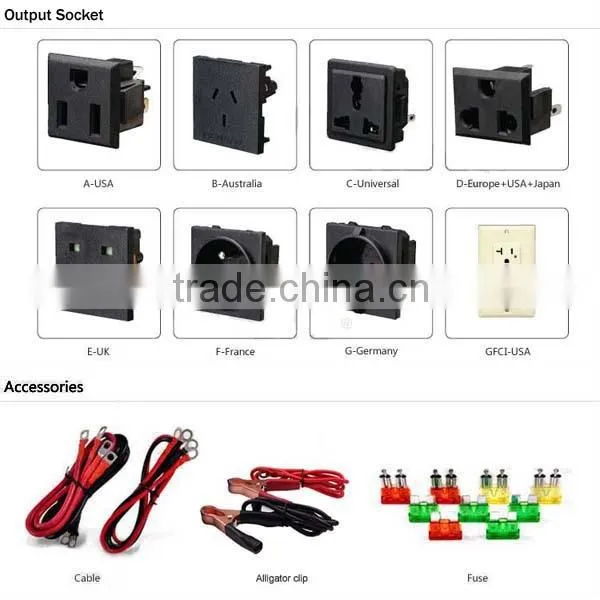

Customers can choose different output socket and accessories. Like the following:
Yueqing LC Import & Export Co., Ltd. is one of the largest industrial electric manufacturers in China and is a boundless enterprise, which specially develops, manufactures and sells the world leading level high and low voltage electrics and element, transmit distribution equipment, power equipment, instrument and meter, building electric, Automation, wire and cable, electricity and electric equipment etc.
We possess a giant of distribution and service webs in 120 countries and regions in the world and occupied the first place in China low voltage electrices from 2000 to 2007 continuously for 7 years.
We also have set up over 600 marketing organizations at home and the market occupancy has been raised uninterruptedly.
Our product quality and service have got high reputations from users at home and abroad.The company possesses a full set of imported production equipment perfect measuring method,whole computer information management system.
All of our employees will do our best and develop more and new electric products, uninterruptedly develop product quality and enlarge the markets at home and abroad, strive for the world famous brand and enter the wold 500 stronger taking China Haier, American General Electric as good examples.
Our Factory
Management Innovation
Technical experts and professional and technical personnel involved in the manufacture of our products, we have excellent potential value, this to ensure the stability and reliability of our products!
Perfect production process, not only that we have advanced production equipment and perfect testing means, we pay more attention compared to people in this process plays a key role.
Q 1. How about your experience?
A: We have our own professional factory and R&D department & more than 15 years producing experience.
Q 2. What's your advantage ?
A: We have mash melders, injection molding machines and punchers. So we can make by ourselves from the inside parts to outside by ourselves. It greatly increases the efficiency and saves the cost.
Q 3. How's the delivery time ?
A: Usually we have stock for sample order, and it will take about 7-25 days for batch order.
Q 4. Tell me the standard of package?
A: For inner box and master carton are made as per international standards, and we can make special design for you if need. Also if necessary, will be packed in pallet to avoid any damage.
Q 5. Would you accept to use our logo ?
A: We offer OEM/ODM customization services if quantity is suitable.
Qualification
Excellent manufacturing craft / examination means Yueqing LC Import & Export Co., Ltd. will carry out the conception of product process, ISO9001 and ISO14001 International Quality Management System standard completely and strictly to guarantee that the product quality accords with the standard of satisfied the customers.
