wireless camera module 5.8ghz wireless video transmitter receiver

FOB Price

USD $32 - $35 / Set

200 Sets(Min.Order)

Supply Ability 10000 Set / Sets per Month
Port Shenzhen
Payment Terms:Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Guangdong, China	Brand Name:	Joyhonest	Model Number:	5808
Type:	Digital Camera	Style:	Mini Camera	Sensor:	CMOS
Technology:	Pinhole	Special Features:	Vandal-proof

Product Description

wireless camera module 5.8ghz wireless video transmitter receiver

Specifications of wireless camera module 5.8ghz wireless video transmitter receiver:

Video resolution: HD720P 1280x720 pixels AVI
Photo resolution: 1920*1080 / 1280*720 pixels JPEG(Option)
AV-OUT function: Support
Working voltage:2.5V~5.5V
Working current: ~260mA when input DC 5.0V
Working frequency range:5.725GHz~5.865GHz
Transmitter power:13dBm (20mW)
Support 8 channels, free directly switch them in rc drones remote controller
Connection: 3 pins connector(VCC;GND;DATA) OR 4 pins connector(VCC;GND;DV;DC)
Small size(18.2mm*42mm*0.8mm) with transmitter and video recording together

Application
RC Airplane, RC helicopter, RC aerodone, RC boat, RC car, RC toys, Wireless monitoring etc.

JH_5600A receiver specification:

Working voltage: 3.6V~5.5V
Working current:185mA
Receiving sensitivity : -85dBm
Working frequency: 5.725GHz~5.865GHz

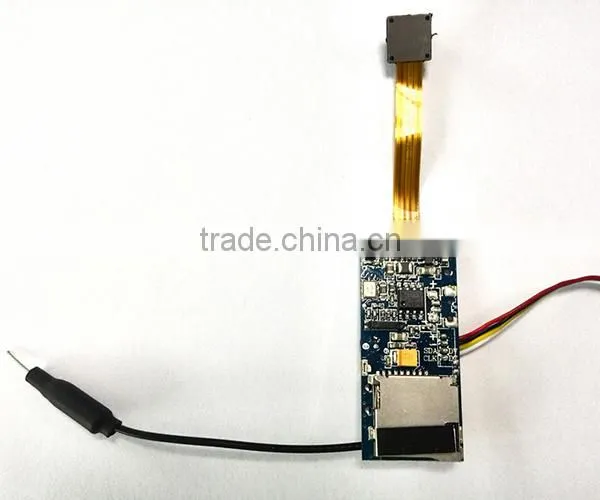

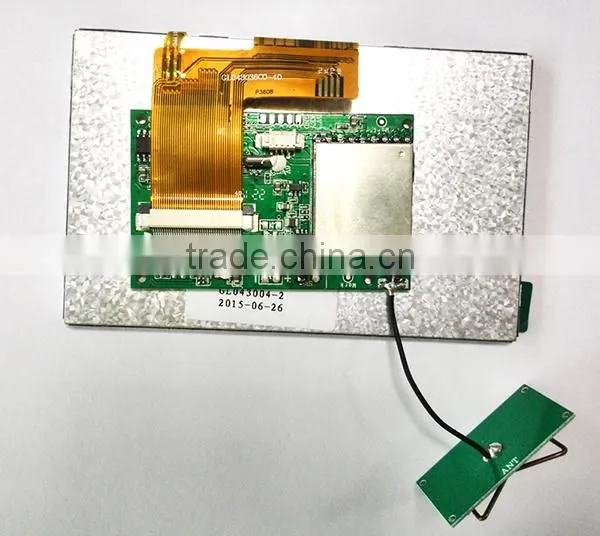

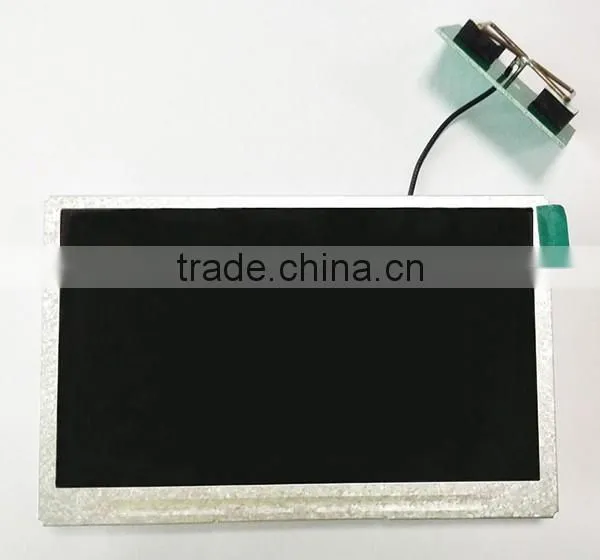

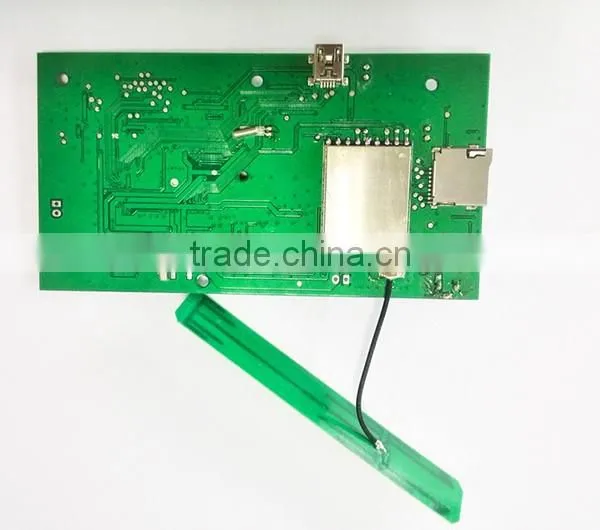

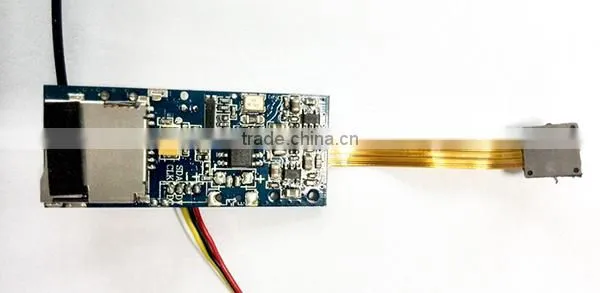

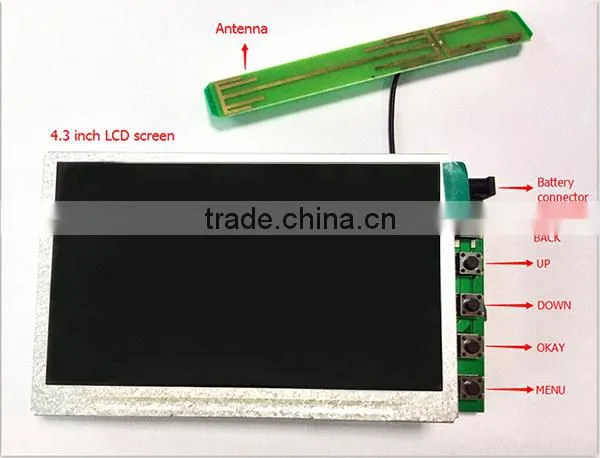

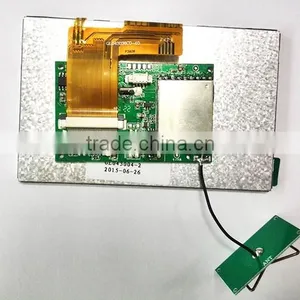

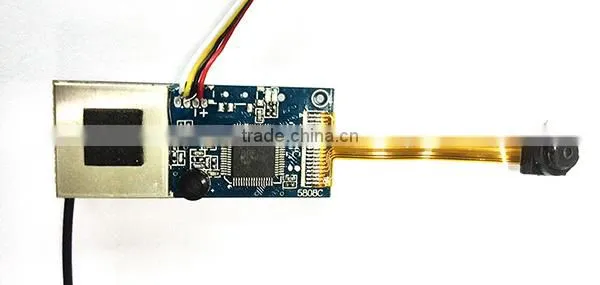

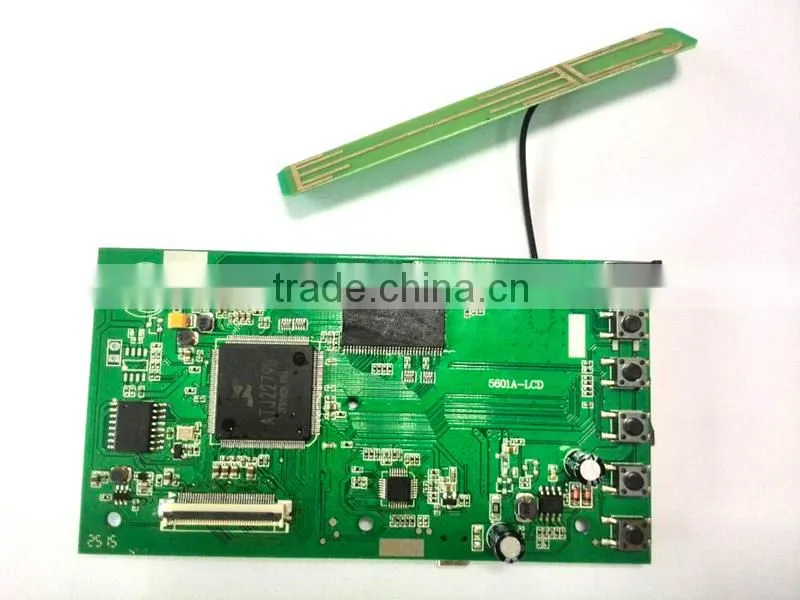

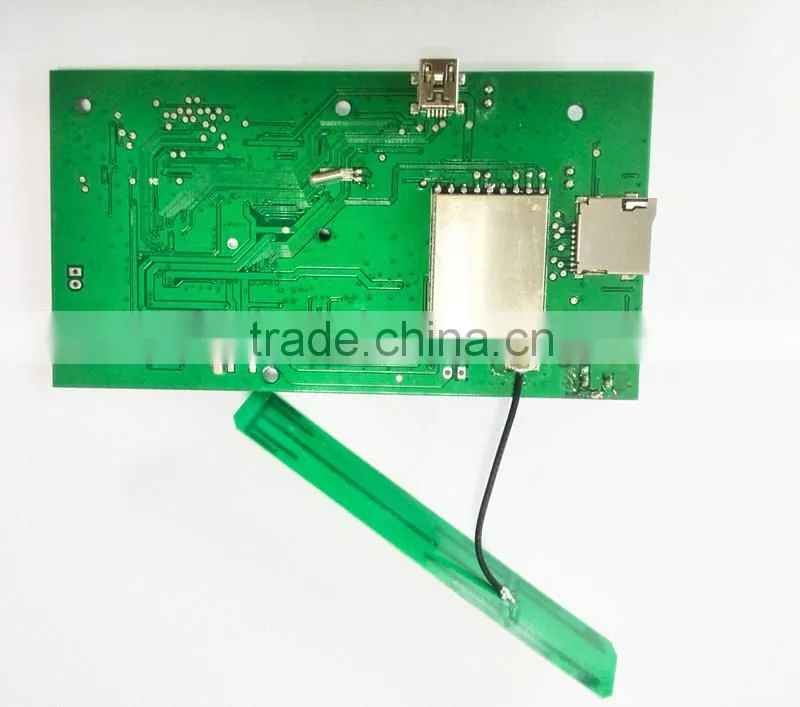

Picutres of wireless camera module 5.8ghz wireless video transmitter receiver:

FAQ

What the 5.8G wireless camera can support Maximum Micro SD/TF Card capacity?

It is 32GB.

How long transmission distance it can support?

It is about ~150 meters.

The LCD receiver can support video files in the Micro SD card?

There are two kinds of receiver,5600A receiver only can support live video, but 5601A

can support both live video and video files playing (VGA, HD720P) in the memory card.

You are a direct manufacturer?

Yes, we are.

If I want to do some change to the camera board, you can support it?

Yes, we offer ODM&OEM service, and customized order MOQ is 1k pcs.

MOQ

1. For the first order, there is no limit for the quantity.

2. From the second order, the MOQ is 100pcs.

Payment Terms

T/T, Western Union,Escrow, PayPal

1. T/T Remittance : 40% deposit payment before mass production, balance payment paid before shipment.

2. PayPal :There will be 5% PayPal fee for each individual remittance.

Lead Time

1. Sample order can be delivered out from our factory in 5 working days.

2. General order can be delivered from our factory in 15 - 20 working days.

3. Big order can be delivered from our factory in 20-25 working days at most.
