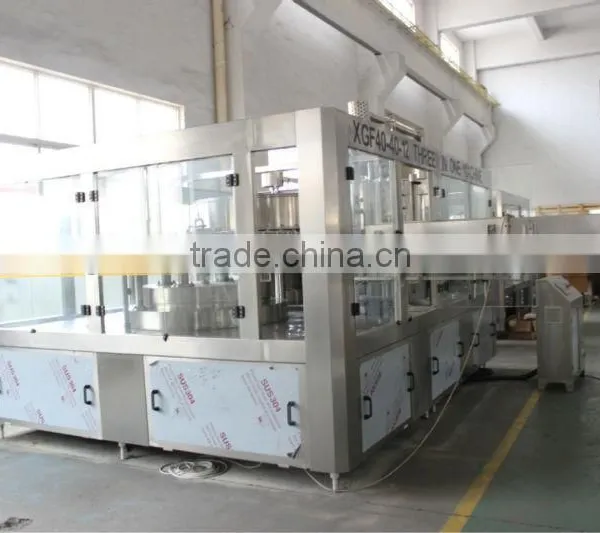

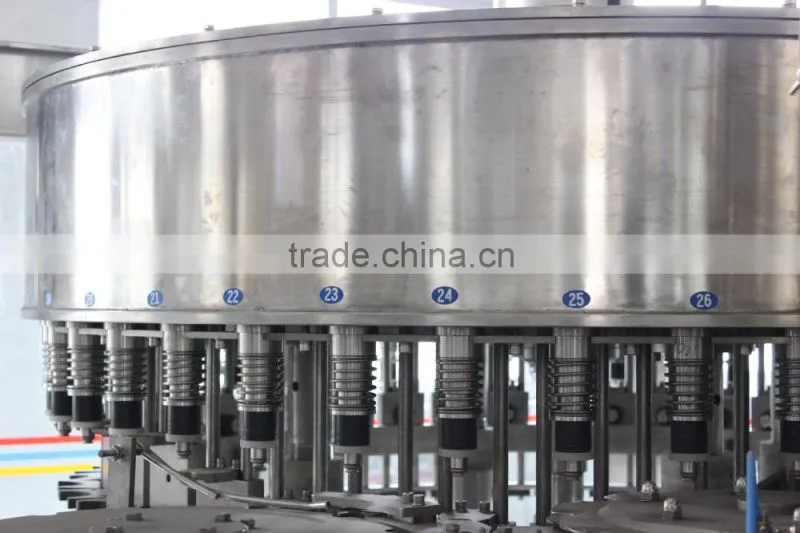

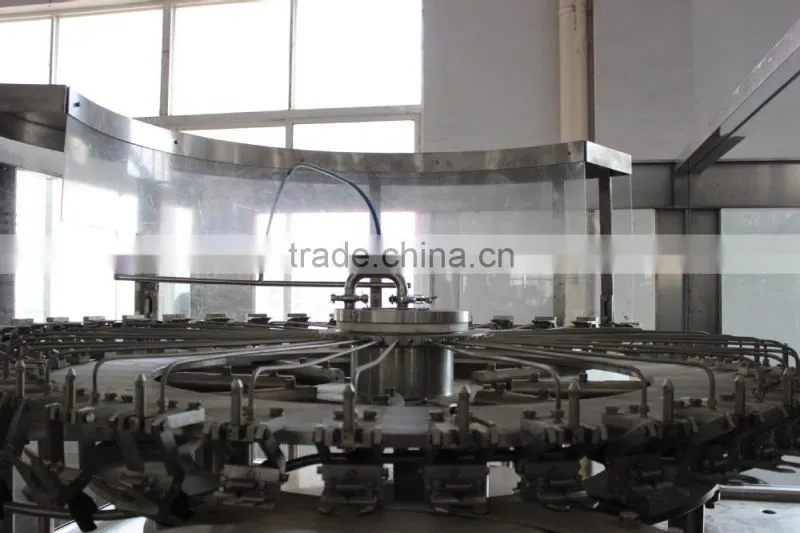

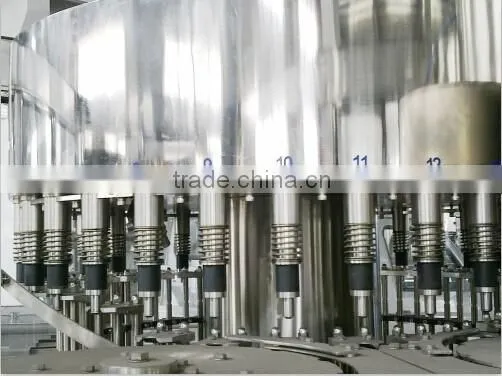

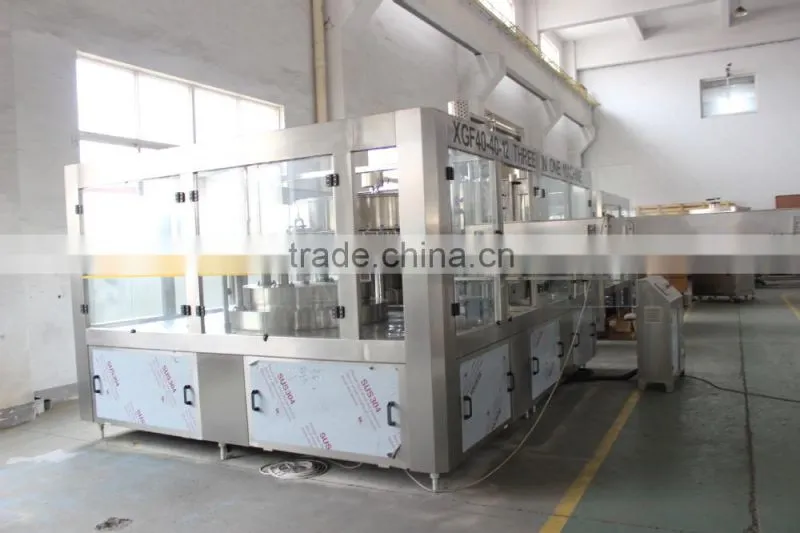

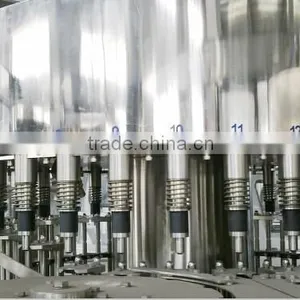

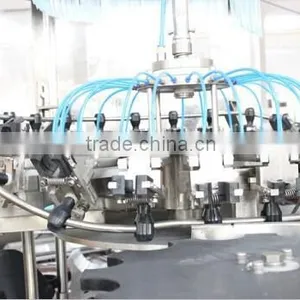

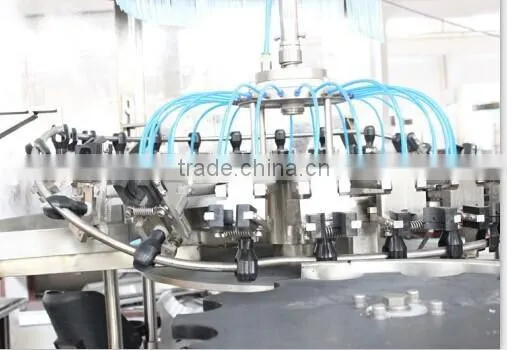

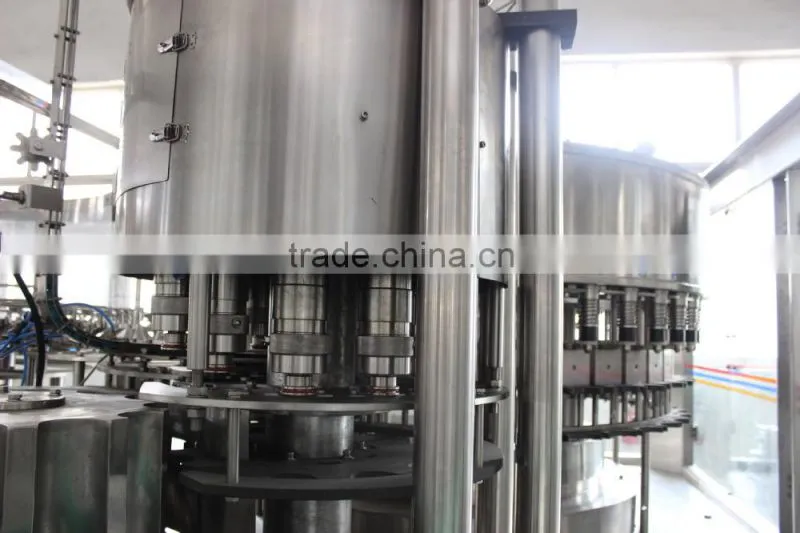

Help Center(3-in-1) PET Bottle Drink Sealing Machine
Related Products
-
Reverse Bottle Cap SterilizerUS$ 10,000 - 10,000MOQ: 1 Set -
XG-42 Ozone SterilizerUS$ 200 - 2,000MOQ: 1 Set
-
6000-9000 B/h Bottle Warming Cooling MachineUS$ 3,500 - 3,500MOQ: 1 Set
-
QGF Drinking Water Bottling Plant(High Quality)Full-auto 5 Gallon(18.9L) Bottled Water PlantUS$ 10,000 - 50,000MOQ: 1 Set
-
Edible Oil Filling MachineUS$ 9,600 - 31,000MOQ: 1 Set
Mineral water sealing machine
Technical Data
Model |
Rinsing heads |
Filling heads |
Capping heads |
Production Capability(b/h) |
Power of main motor (kw) |
CGF8-8-4 |
8 |
8 |
4 |
3000b/h |
4.1 |
CGF12-12-6 |
12 |
12 |
6 |
5000b/h |
4.23 |
CGF18-18-6 |
18 |
18 |
6 |
8000b/h |
5.03 |
CGF24-24-8 |
24 |
24 |
8 |
12000b/h |
6.57 |
CGF32-32-10 |
32 |
32 |
10 |
15000b/h |
7.5 |
CGF40-40-10 |
40 |
40 |
10 |
18000b/h |
8.63 |
CGF50-50-12 |
50 |
50 |
12 |
20000b/h |
11 |
Main performance
1.Screw capper adopts French advanced technology which can screw cap promptly when clamping bottle.
2.The PLC and transducer are chosen from international famous brand, such as OMRON,MITSUBISHI and so on.
3.filling adopts cylinder feeding structure ,filling valve adopts high filling speed and mass flow rate valve which control liquids level accurately and without loss.
4.Bottle is entered by air conveyor, the speed of bottle entering is fast and bottle shape isn’t changed because of adopting hanging clamping bottleneck way.
5.Adopting clamping bottleneck fashion to wash bottle mouth and avoid touching screw mouth , when bottle type changes ,you need to change the board related with bottle diameter.
Washer
Filler
Capper
3 in 1
