Home > Products > Wine bottling line > 2014 new product vodka bottle filling equipment
2014 new product vodka bottle filling equipment
- 17 Set / Sets per Month
- shanghai
- T/T
- Cheapest Automatic Bottle Blowing Machine Prices/factory price automatic bottle shrink wrapping machine
- PET bottle making machine/nice plastic bottle making machine price/high quality plastic bottle blowing machine
- Top quality china automatic machines to make plastic bottles/bottle blowing machinery/Pet Bottles Blowing Machine 750ml
- Chinese PET water bottle blowing machine/equipment / automatic bottle Blowing machinery
- Low price Beverage drinking PET bottle blowing machinery/fully automatic pet bottle blowing machine
- high quality bottle blowing machine/automatic shrink wrapping machine/water bottle blowing machine
Product Details
Condition: | New | Application: | Beverage | Packaging Type: | Barrel, Bottles, Cans |
Packaging Material: | Plastic, Wood | Automatic Grade: | Automatic | Driven Type: | Electric |
Voltage: | 220V/380V | Power: | as required | Place of Origin: | Jiangsu, China |
Brand Name: | Wanjin | Model Number: | RXGF | Dimension(L*W*H): | by capacity |
Weight: | by capacity | Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
2014 new product vodka bottle filling equipment
We are the automatic vodka bottle filling equipment manufacturer from China.
Features:
1.This machine is used to fill beer,wine,and other kinds of juices.
2.All the machine part which contact with liquid is high quality stainless steel 304. The relative fittings are from international famous brand.
3.The automatic juice packaging and bottling machine was equipped with suspension type air conveyor and frequency control of motor speed.
4.This machine is comprised of rinsing, filling and capping system. Rinsing: grip the bottle neck, rotate filling plate, inverse bottle; internal rinsing and external spraying make bottles be cleaned completely. Filling: hot filling with holding bottle neck; the special backflow type of the filling valve can avoid leakage after filling and also control liquid level accurately. Capping: magnetic torque bottle holding type can minimize the cap damage rate and make the capping performance the best.
5.This machine owns the reasonable, stable and safe design. Under the condition that the bottle neck size is the same, only the output star wheel needs to be changed if bottles are different. It improves the efficiency a lot.
Main Technological data:
MOdel | RXGF | RXGF | RXGF | RXGF | RXGF | RXGF |
Production capacity (500ml b/h) | 3000-4000 | 4000-6000 | 6000-10000 | 10000-15000 | 15000-20000 | 20000-24000 |
Filling precision | ±2mm(Liquid Level) | |||||
Suitable cap shape | Bottle Diameter:50-100 Hight:150-310 | |||||
Polyester bottle standard(mm) | Plastic Screw Cap | |||||
Water pressure of washing (Mpa) | 0.2-0.25(Mpa) | |||||
Gas consumption(m³/min) | 0.1 | 0.1 | 0.4 | 0.5 | 0.5 | 0.6 |
Power(KW) | 4.4 | 4.4 | 5.2 | 6.2 | 7.8 | 10 |
Weight(kg) | 2200 | 2800 | 4500 | 6000 | 7000 | 9500 |
Dimensions(L*W*H)(mm) | 2230*1630*2250 | 2360*1830*2250 | 2900*2200*2250 | 3880*2200*2250 | 3700*3000*2350 | 4500*3500*2400 |

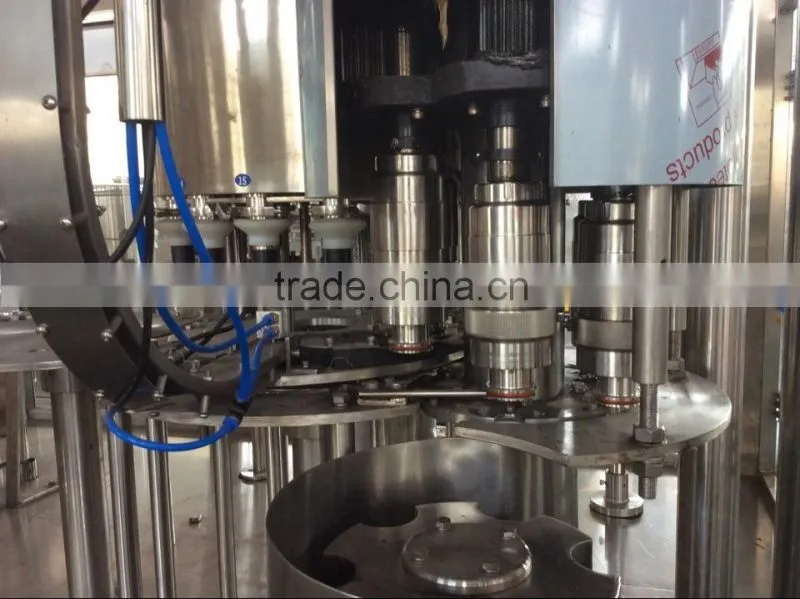

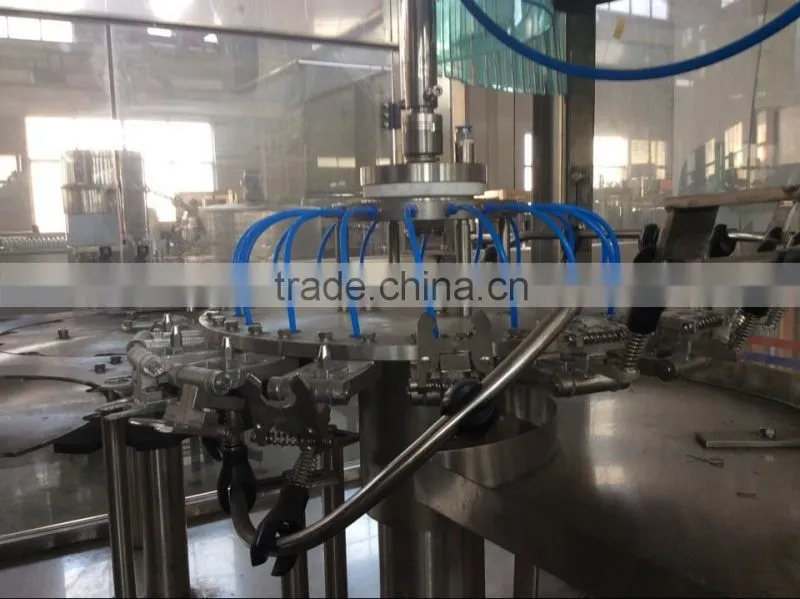

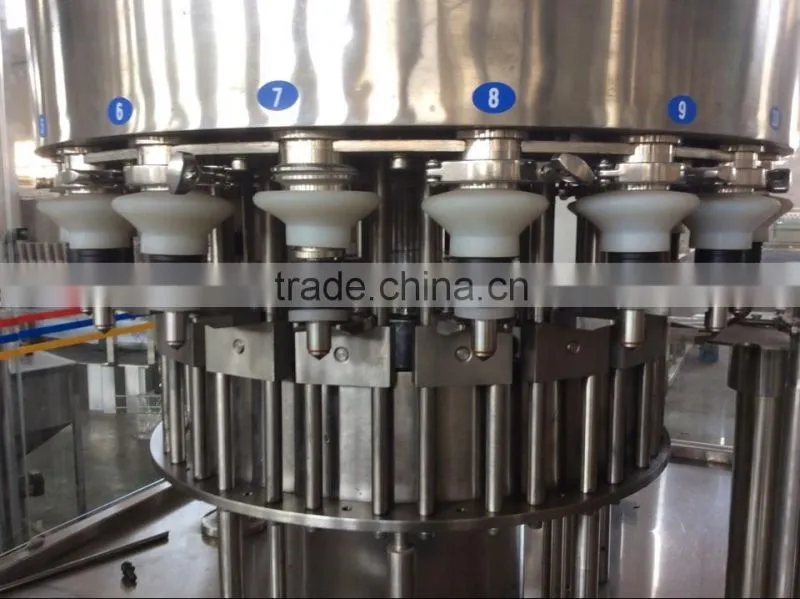

Product view:
