Specifications
1)16 E1 PRI SS7 Signaling Gateway;2)Convert any signaling among SS7, ISDN PRI, R2, V5.2, CAS;
3)Rack design with 1U heigt;
Signaling converter, signaling gateway, E1 PRI SS7 gateway, V5.2 to PRI gateway
What is a Signaling Converter/gateway?
A Signaling Converter enables network connectivity by performing signaling conversion between various switches and equipment that use different signaling protocols
Description:
NC-AD300D is designed and manufactured by NiceComm according to National Telecom Standard, solves any signalling inter-work issues between various switches and equipment through E1(T1), with its Imbedded AM9 CPU and Linux operation system, NC-AD300D is a cost effective, powerful, reliable and stable signalling converter.
Specialty:
* Signaling support: ITUT C7, SS7, ISDN PRI, ETSI ISDN, Q.SIG, R2, V5.2

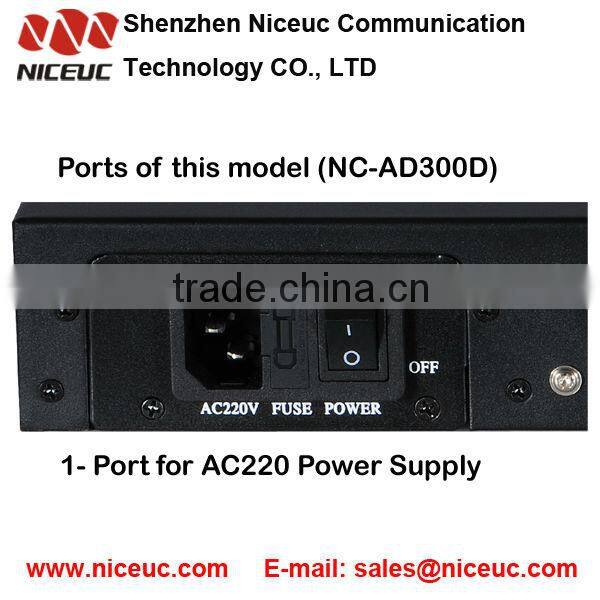

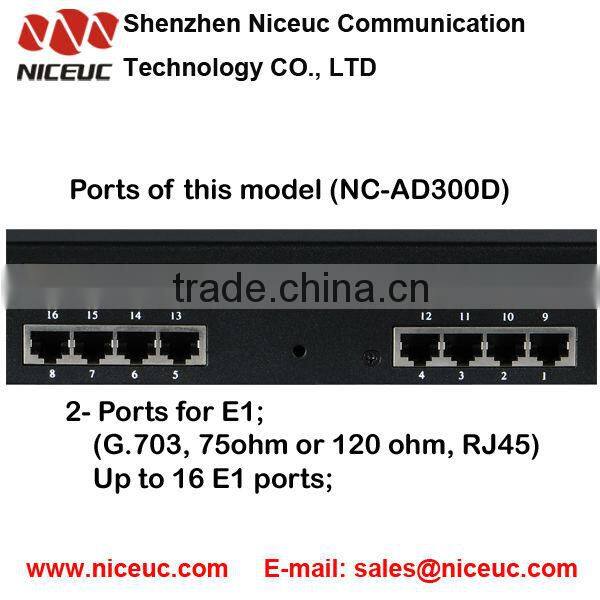

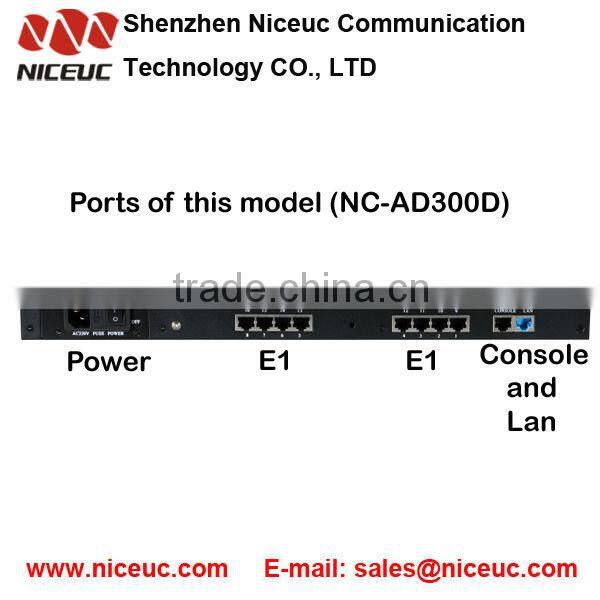

* Interface Connector: 16 E1 (8 spans), 10/100M network 1 port, RS232 console 1 port
* 16 SS7 links, 16 PRI
* Switching Volume: 2048 x 2048
* Clocking accuracystratum 3 Clock.
* Clocking Source from E1 or internal.
* Hard ware resource: 256 Voice channels,256 meeting channels,256 DTMF channels, FSK inspection and delivery.
Function:
* Convert any signaling between ITUT C7, ISDN PRI, ETSI ISDN, Q.SIG, V5.2, R2
* Multi router, inter-office management, Intelligent router distribute and telephone traffic sharing
* Grouping switching management
* User identifier, can provide black and white name list or connect to the database
* Powerful calling function to provide customize calling mode.
* Voice management function with voice record and voice play
* Meeting function
* Calling number and called number modification
* Real time telephone traffic monitor and handling
* Can expand the capacity through multi stack
* Provide CTI Link API interface for user program control
Physical Specification:
Item | Specification | ||
Input voltage | -48v DC or 200~240V AC | ||
Power | 30 W | ||

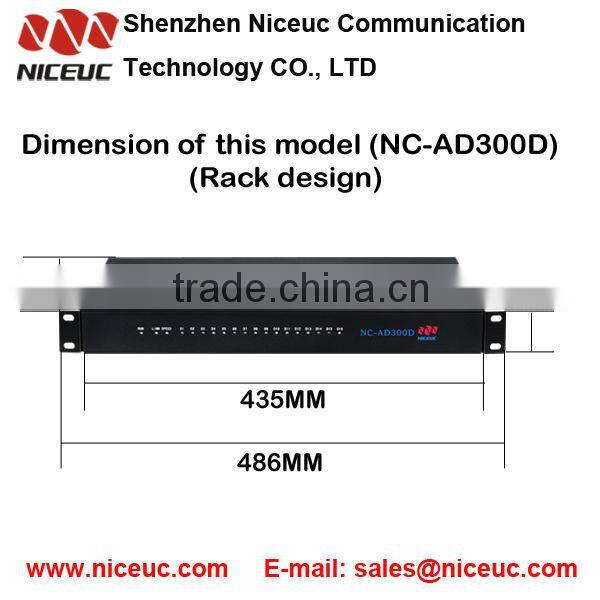

Dimension | width×depth×height | 480mm×290mm×40mm (1U) | |
Weight | 3 kgs | ||
Environment | Temperature | 0-50 | |
Rel Humidity | Less than 80 | ||

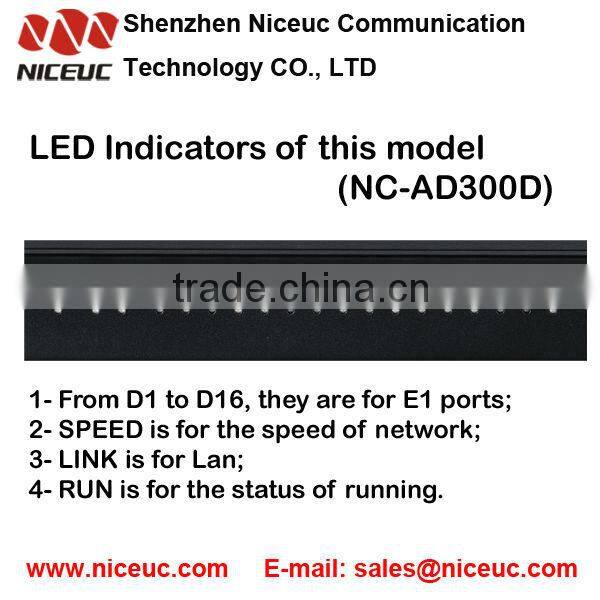

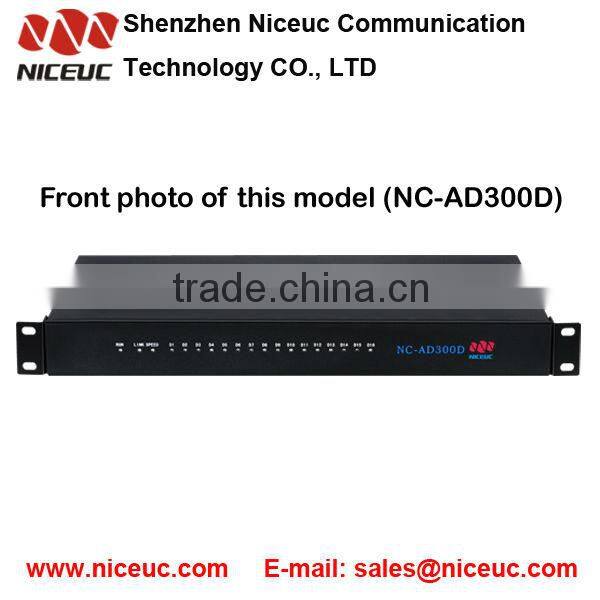

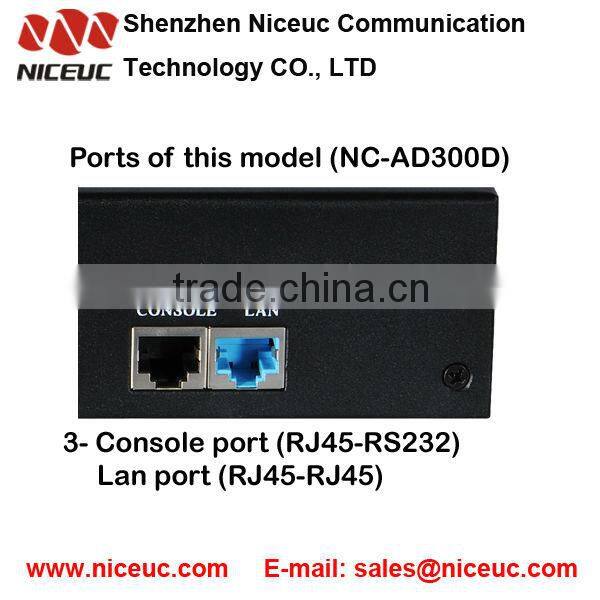

The detailed image of this product:

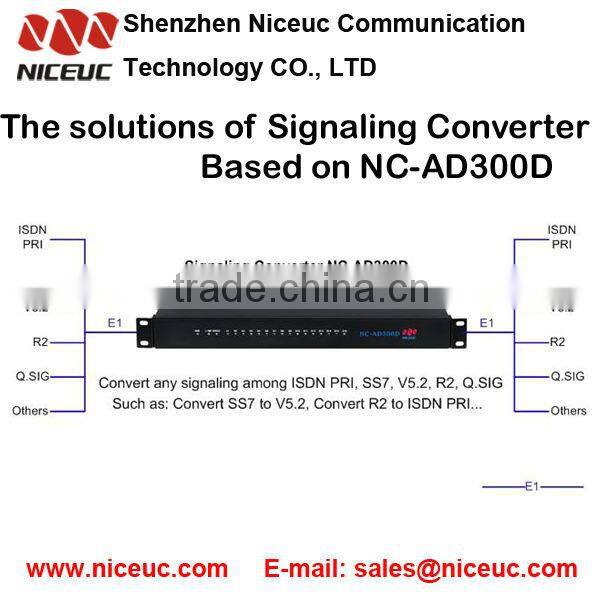

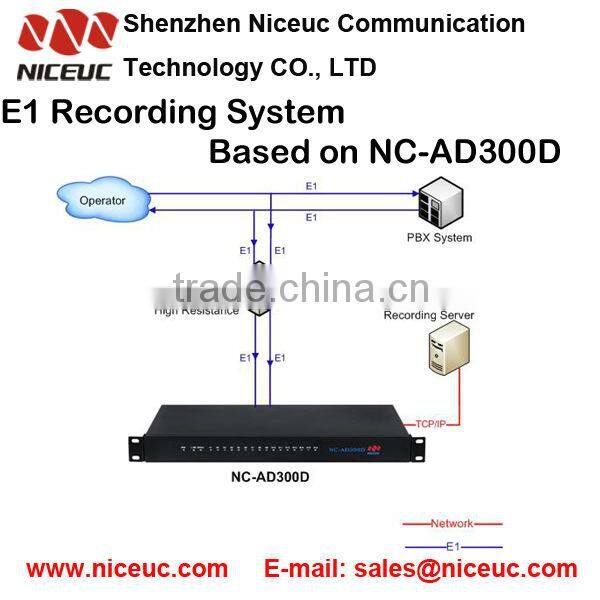

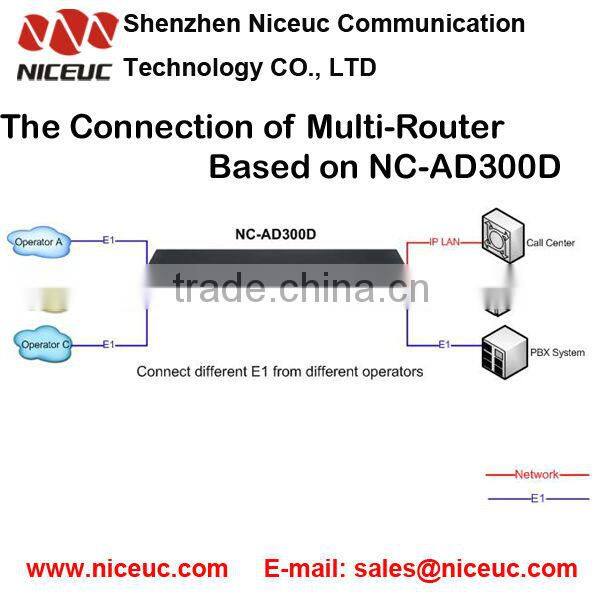

Application as follow shows:
