Specifications
1)Signaling support:SS7, PRI, Q.SIG, R2, V5.2;2)Interface Connector:16 E1, 1 10/100M network, 1 RS232 console;
Description:
NC-AD300D is designed and manufactured by NiceComm according to National Telecom Standard, solves any signaling inter-work issues between various switches and equipment through E1(T1), with its Imbedded AM9 CPU and Linux operation system, NC-AD300D is a cost effective, powerful, reliable and stable signaling converter.
Specialty:
* Signaling support: ITUT C7, SS7,ISDN PRI, ETSI ISDN, Q.SIG,R2,V5.2
* Interface Connector: 16 E1 (8 spans),10/100M network 1 port, RS232 console 1 port
* 16 SS7 links, 16 PRI
* Switching Volume2048 x 2048
* Clocking accuracystratum 3 Clock.
* Clocking Source from E1 or internal.
* Hard ware resource: 256 Voice channels,256 meeting channels,256 DTMF channels, FSK inspection and delivery.
Function:
* Convert any signaling between ITUT C7, ISDN PRI ETSI ISDN, Q.SIG,V5.2, R2
* Multi router, inter-office management, Intelligent router distribute and telephone traffic sharing
* Grouping switching management
* User identifier, can provide black and white name list or connect to the database
* Powerful calling function to provide customize calling mode.
* Voice management function with voice record and voice play
* Meeting function
* Calling number and called number modification
* Real time telephone traffic monitor and handling
* Can expand the capacity through multi stack
* Provide CTILink API interface for user program control
Physical Specification:
Item | Specification | ||
Input voltage | -48v DC or 200~240V AC | ||
Power | 30 W | ||
Dimension | width×depth×height | 480mm×290mm×40mm (1U) | |
Weight | 3 kgs | ||
Environment | Temperature | 0-50 | |
Rel Humidity | Less than 80 | ||

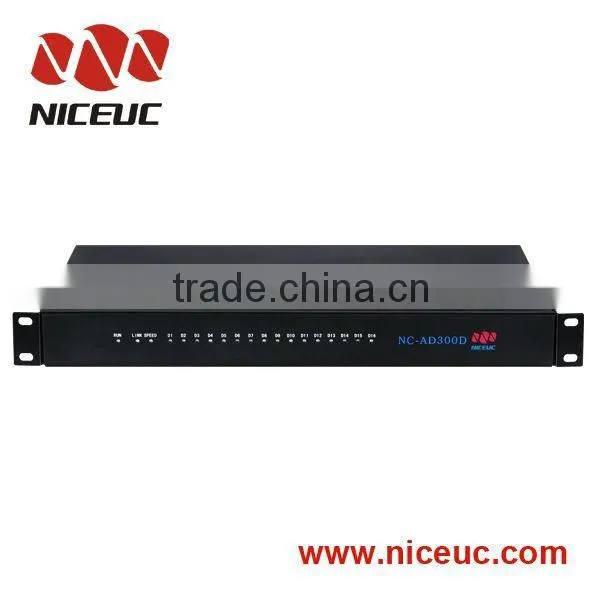

The image of this product:
Application as follow shows:
Figure 1 Signaling Convert
Figure 2 Multi-Router Connection
Figure 3 Call Back System
Figure 4 Signaling Collect
Figure 5 Recording System
