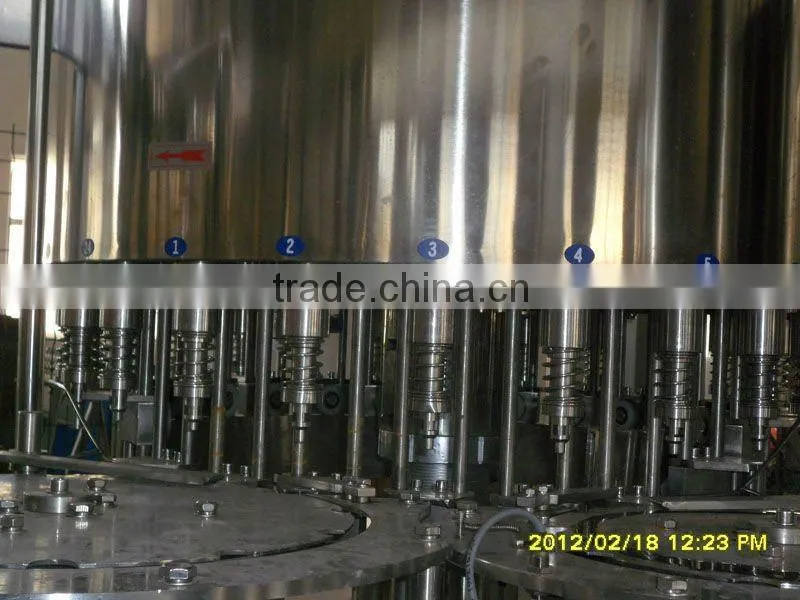

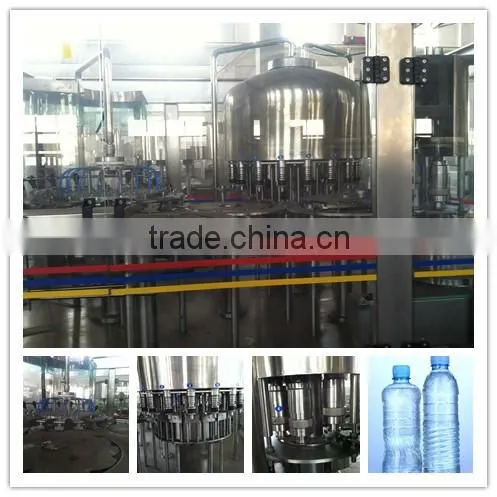

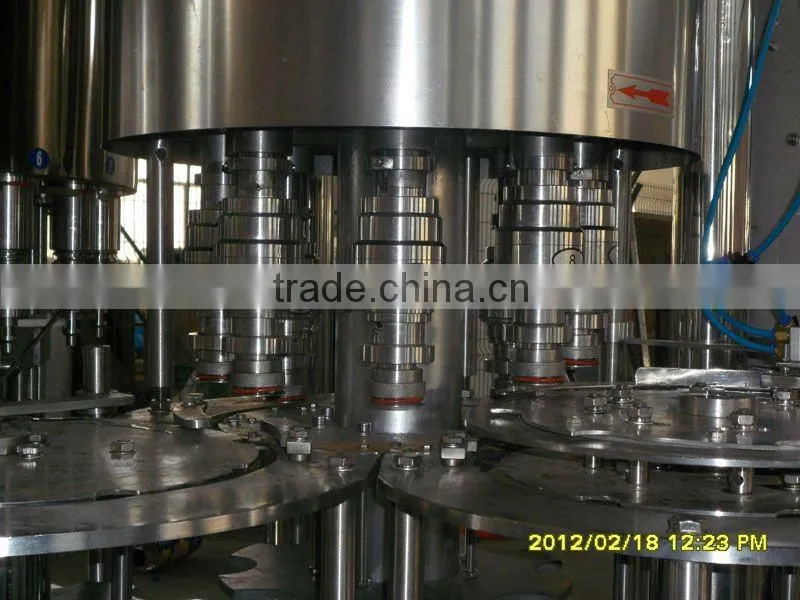

Automatic pure water bottling filling plant
This machine has washer, filler, and capper three functions in one body; it is automatic in total process, suitable for PET bottled mineral water, pure water and many other no gas containing drinks. It makes by high quality SUS304, key parts are precision machined by NC tool. The total machine uses advanced photoelectric detection technology to detect each part’s operation status, no bottle no filling, and no bottle no capping, automatic and easy operation.
Main features of the equipments
1. Using the wind sent access, with clamp hanging the bottle neck; which can keep the bottle shape and high-speed.
2. Bottles transmission adopts clip bottleneck technology, clean and fast.
3. Filling uses liquid cylinder feeding structure, filling valve uses new normal pressure filling, ensure the filling correct and stable,
4. Spiraling decline when output bottle, transform bottle no need to adjust the height of conveyor chains. Cap automatically.
5. Host adopts advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
Mode |
XGF14-12-5 |
XGF18-18-6 |
XGF24-24-8 |
XGF32-32-10 |
XGF40-40-10 |
XGF50-50-12 |
XGF60-60-15 |
wahing/filling Heads |
14-12-5 |
18-18-6 |
24-24-8 |
32-32-10 |
40-40-10 |
50-50-12 |
60-60-15 |
capping heads | |||||||
Capacity(BPH) |
2000-4000 |
5000-6000 |
8000-12000 |
12000-15000 |
16000-20000 |
20000-24000 |
25000-30000 |
bottle type |
φ=50-108 H=170-340 330ml-2000ml |
||||||
Rinsing with water pressure(mpa) |
0.2-0.25 |
||||||
power |
|
2.2kw |
3kw |
4kw |
7.5kw |
9.5kw |
12kw |
Dimension(mm) |
2100*1400 |
2460*1720 |
3100x2100 |
3500x2500 |
4600x1800 |
5200x4500 |
6500x4500 |
(LxWxH) | |||||||
Weight(kg) |
2500 |
3500 |
4200 |
5500 |
6800 |
7600 |
|
