NICEUC MG160 Roip Gateway
Compitable with Asterisk, Cisco call manager, Free switch, 3CX, Mircrosoft Lync, VOS, etc.
Configure, Monitor, Management, Backup, Update: by RS232 console port, Telnet, WEB.
Our service: 7*24 supports for ever.
Advantage:
1. Expandable with modular design;
2. FXS VoIP gateway Converts IP to FXO/FXS, and vice versa. It is the best equipment for IP Call Center;
3. Support 16 ports FXO/FXS;

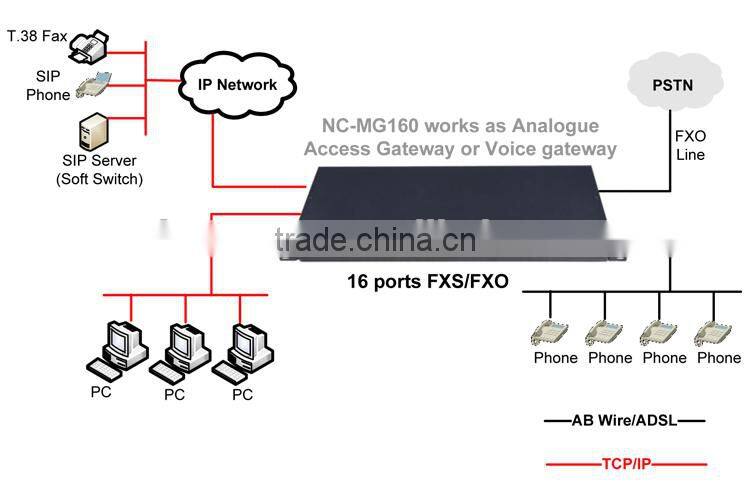

According to the demand of voice business from the enterprise/operator, NC-MG160 is a 16 ports FXO/FXS VoIP Gateway which independently R&D by NiceUC Communication. This product locates at the interface between PSTN and IP to achieve the conversion between FXO/FXS and VoIP SIP,meanwhile complete the media stream transformation between the bearer channel of PSTN and IP.
NC-MG160 uses advanced hardware and software technology and carrier-class design to ensure the high reliability of equipment. The system of NC-MG160 uses the mature high-performance CPU and DSP; and uses embedded real-time operating system and efficient algorithm, so it has excellent properties. With modular design of inserting board, NC-MG160 is expandable by your requirement.
Function and Features:
Powerful processing capabilities
· 16 ports FXO/FXS VoIP Gateway NC-MG160 has powerful capabilities in processing media. By a rigorous full-load test and optimization of software/hardware, it proves that under the conditions of a full-load operating, this model NC-MG160 can be able to comfortably perform voice processing(G.711,G.726,G.729a/b,G.723,G.728,iLBC), echo cancellation, fax trunk and other functions.
Excellent voice communication quality
Based on the powerful processing capabilities, NC-MG160 has excellent quality in voice communication.
·Voice Activity Detection (VAD), to effectively save bandwidth resources;
·Comfort Noise Generation (CNG), to provide the same experience as PSTN in calls;
·Adaptive dynamic buffer technology, to meet the application under bad network;
·G.168 128ms echo cancellation technology. This indicator is far higher than the same kind of PBX, eliminating the echo interference caused by long distance call;
·DTMF detection / generation technology, to effectively support the business of the fax, callback, second dial.
Plentiful business functions
·Modification between calling number and called number;
·As a terminal, support the register trunk function to other GK(Gatekeeper) or SIP Server.
·As a gateway, support the control from superior GK or SIP Server to complete the trunking calls;
·As a IPPBX, support that other terminals register on it.
·Support any switch among FXO, FXS, SIP;
·Support automatic routing function;
·Support high capacity of black and white lists;
·Simultaneously support the register of 4 SIP Server;
·Support output of CDR;
·Fax support T.30, T38 and pass through;
·Support reelection function;
·Support detection of calling number and display of call ID;
·Support generation of dial tone, ringback tone, etc.;
·Port supports gain and comfort adjustment of noise;
·Multi-router and multi-bureau management, group, cluster and exchange management, intelligent routing distribution and equal traffic sharing;
·Support function of dividing groups, for the incoming calls, the subscriber line can be set to line up or take turns to choose;
·Flexibly control the incoming and outgoing of lines, the lock of long-distance calls can be controlled by the phone;
·Complete call functions,it can provide several kinds of call functions and special call way by customer's request;
·The voice processing capacity support voice play with built-in computer operator;
·High processing capacity in conference;
·Monitor and handle real-time telephone traffic;
·Support CTI for controlling and programming;
Simple and convenient management/maintance
·In software, NC-MG160 support two ways for configuration and network management: (based on) GUI and Telnet. It will be also very easy for the non-professionals to manage and maintain;
·In hardware,NC-MG160 is compact, only 1U height, can be installed in the standard 19 inches rack, also can be separately installed a small machinery room. Power supply is 220V AC. It can be adapted to various conditions in the machinery room;
Protocol that supported by this model NC-MG160_16 ports FXO FXS VoIP Gateway:
Item Name |
Details |
Port |
FXO/FXS/SIP |
VoIP Protocol |
SIP: RFC3326(Reason header in SIP messages) RFC3372(SIGTRAN and SIP-T) RFC2327(sdp) RFC3398(ISUP-SIP Mapping) RFC3261(sip) RFC5806(Diversion Indication in SIP) RFC2833( DTMF ) RFC3362(t.38) RFC 3261(SIP 2.0) RFC3204(MIME media types for ISUP and QSIG Objects) RFC3578(Mapping of ISUP overlap to SIP) |
Codec |
G.711 U-Law and A-Law, G.711 Appendix 1, G.723.1 and G.723.1 Annex A, G.729 Annex A and Annex B, G.726,GSM,ARM,ILBC |
Fax Protocol |
T30, T38 and pass through |
Network Protocol |
IP,NAT,ICMP,ARP,HTTP,BOOTP,FTP,TFTP,DHCP,PPPOE,SNMP,Diff-Serv |
Echo Cancellation |
G.168 128ms |
Physical Capacity and Specification of Family of Analog FXS VoIP gateway:
| Item | NC-MG160 | NC-MG320 | NC-MG640 | NC-MG930 |
| Analog FXS Interface | 16 ports | 32 ports | 64 ports | 192 ports |
| FXO Trunk | 16 ports | 32 ports | 64 ports | 192 ports |
| E1(PCM) Trunk/ISDN Port | 0 | 0 to 4 E1 | 0 to 4 E1 | 0 to 4 E1 |
| VoIP IP Channels | 16 | 32 | 128 | 128 |
| IP Terminals/SIP users | 16 to 32 | 16 to 1024 | 16 to 1024 | 16 to 1024 |
| Ethernet Interface | 2(10/100/1000M Base-T) | |||
| Console Port | 1 RS232 port | |||
| Compatibility |
Asterisk, Free switch, 3CX,CISCO, Siemens, AVAYA, Huawei, ZTE, etc. |
|||
| Input Voltage | ||||
| Power | 25W | 40W | 80W | 150W |
| Telephone Line Transmission Distance (KM) | 3 | 5 | 5 | 5 |
| Device Dimension (MM) |
472*260*44 (1U) |
480*286*44 (1U) |
480*300*88 (2U) |
480*300*160 (3.5U) |
| Weight (KG) | 3.5 | 4.5 | 6.8 | 9.5 |
| Work Environment | 0℃~50℃, Less 80% |
|||
