Specifications
1)Embedded 4 E1, can be expanded to 100 E1 maxima;2)Maxima support 192 FXS/FXO, 128 calls simultaneously ;
3)PABX function;
Description:
NC-AD300X Programmable PABX is designed and manufactured by Nice Communication, with its plug-in module structure, combined with E1, FXO and FXS access port, can flexible configured for different requirement, also NC-AD300X provide CTI control interface, supporting SS7, ISDN PRI, V5.2 signaling, can be programmed for all center and other value-added business.
Feature:
·Signaling support: SS7, DSSI, Q.SIG, R2, V5.2;
·Protocol support: SIP, H.323, RTP/RTCP;
·Codecs: G.711, G.711, G.723, G.729, G.726, G.726, G.728, GSM, AMR, T.38;
·Switching volume: 4096*4096;
·Clock accuracy: stratum 3 Clock;
·Clock source: E1, internal;
·Echo cancellation:G.168, 128ms Network echo cancellation;
Main feature
· Support SS7,ISDN PRI,V5.2 Signaling
· Flexible route management, inter-office management, Intelligent router distribute and telephone traffic sharing
· Grouping switching management
· ser identifier, can provide black and white name list or connect to the database
· Powerful calling function to provide customize calling mode.· Voice management function with voice record and voice play
· Calling number and called number modification
· Provide CTI Link API interface for user program control
· Conference call resources
PABX function
· Convenient and Flexible Coding: extension can set different prefix and different number
· Adding/changing prefix
· Multiform new operation:Leave Transfer, Don't disturb, Call Protection, Transfer, Act for Pick-Up, ct for dialing, busy call back, wake-Up Service, Hot Line Service and so on
· Call restriction with different level setting
· Interactive Voice Response
Main resources
· 64 MFC receive and send
· 64 Voice codec
· 64 Conference call
· Embedded 4 E1, E1 can be expanded with plug in moudule.
· Maxima support 192 FXS ( can be replace by FXO by different module
Parts information:
Part number |
Description |
Notes |
0001 |
6U chassis |
Must |
0002 |
220V AC to -48V DC adaptor |
Must |
0003 |
Main control board |
Must |
0004 |
Power supply board |
Must |
0005 |
Network board |
Must |
0006 |
Mother board |
Must |
0007 |
User board (16 FXS or FXO) |
Optional |
0008 |
E1 board ( 8E1) |
Optional |
Physical Specification:
Interface |
Standard |
The Type of Connector |
|
PCM |
E1,T1,G.703 |
BNC |
|
Ethernet port |
10/100Base-T,IEEE 802.3 |
RJ45 |
|
Console |
RS232 |
RJ45 |
|
Board leading line |
|
DB36 |
|
| |||
Item |
Specification |
||
Input voltage |
-48V DC or 100~240V AC |
||
Power |
300W |
||
Dimension |
W*D*H |
480MM*290MM*240MM |
|
Weight |
13 KGS |
||
Environment |
Temperature |
0°C~60°C |
|
Rel Humidity |
Less than 80% |
||
The image of this product:

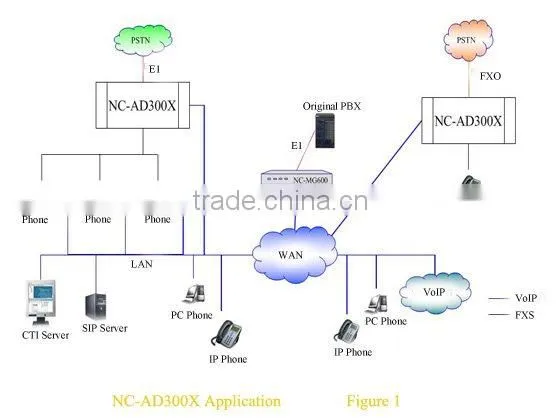

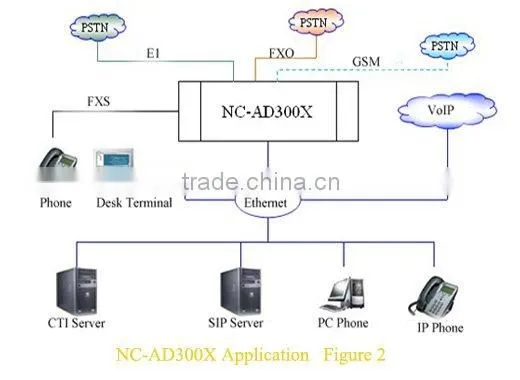

Application as follow shows:
