Help CenterPBX Exchange NC-AD300E With Sip Protocol
Related Products
-
Telecommunication PBX With 4~32 Ports FXO/FXS (NC-AD300E)NegotiableMOQ: 1 Set -
ISDN PBX With 32 FXS/FXO (NC-AD300E)NegotiableMOQ: 1 Set
-
PBX Digital Recorder NC-AD300E With E1NegotiableMOQ: 1 Set
-
PBX Equipment NC-AD300E With 4~32 PortsNegotiableMOQ: 1 Set
-
Digital PBX Intercom With Sip Protocol (NC-AD300E)NegotiableMOQ: 1 Set
Specifications
1)With SIP protocol;2)Provide E1, FXO, FXS interface;but also provide VoIP interface to IP network.
3)24 or 12 VoIP channel;
Description:
NC-AD300E PBX is designed by Nice Communication with new concept and combination our rich experience in traditional telephony technology and VoIP for NGN, not only provide E1, FXO, FXS interface, but also provide VoIP interface to IP network.
NC-AD300E PBX has its powerful signaling protocol handling and exchanging capability, supporting most CTI functions like voice, meeting and Fax pass through etc..
Product specification:
* Provide 32 port FXS or FXO,can be hardware configured with plug-in module base on customer requirement.
* 1 or 2 E1/T1 Port
* E1 Signaling Support: SS7, ISDN-PRI, Q.SIG, V5.2 and T1 Signaling Support:ISDN-PRI,SS7
* SIP Protocol
* 2 DSP, can handle 128 DTMF/Voice play and record/
Functionality:
*Media transfer between PSTN and IP network.
*Multi router,inter-office management, Intelligent router distribute and telephone traffic sharing
*CDR output support TCP or UDP
*Grouping switching management, have PBX function like:
*Pre-recording voice attendance
*Busy call transfer
*Pre-set call transfer
*Do not disturb function
*Limit extension call out with account and password
*Caller ID display
*Add or cut prefix of dial number
*Voice recording (Optional)
*Meeting function (Optional)
*Provide CTI Link API interface for user program control
Physical Specification:
Interface | Standard | The Type of Connector | |||
PCM | E1,T1,G.703 | RJ45 | |||
Ethernet port | 10/100Base-T,IEEE 802.3 | RJ45 | |||
Console | RS232 | RJ45 | |||
Analog lines | each port with 4 lines | RJ45 | |||
| |||||
Item | Specification | ||||
Input voltage | -48V DC or 100~240V AC | ||||
Power | 60W | ||||
Dimension | W*D*H | 480MM*270MM*40MM(1U) | |||
Weight | 5 KGS | ||||
Environment | Temperature | 0°C~60°C | |||
Rel Humidity | Less than 80% | ||||

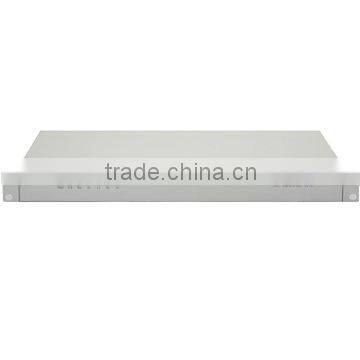

The better image of this product:
Application as follow shows:
Figure 1 V5.2 New Subcriber
Figure 2 New Subscriber of PSTN
Figure 3 New Subscriber of NGN
Figure 4 Call Center PBX
