Manufacturer sip voice gateway 32 port gsm ip pbx gateway,Best gsm gateway 32 ports gsm equipment
Skype:nice_joy WhatsApp:0086-18312568602
Compitable with Asterisk, Cisco call manager, Free switch, 3CX, Mircrosoft Lync, VOS, etc.
Configure, Monitor, Management, Backup, Update: by RS232 console port, Telnet, WEB.
Our service: 7*24 supports for ever.
Overview:
Niceuc Wholesale 32 channels GoIP VoIP GSM Gateway from GSM to SIP is for operators, enterprises, SOHO, virtual operators to offer affordable VoIP solutions. It is a full-featured IP-based GSM wireless network of VoIP gateways, which can provide stable network configuration, powerful features, good voice quality. This GSM Gateway uses the industry's popular chip technology to support E1, GSMCDMA, SIP, IMS interface, supports maximum 4 E1T1, 64 GSMCDMA, 128 SIP trunking. Our 32 channels VoIP GSM Gateway is not only full compatible with Asterisk and other leading soft switch, but also is a cost-effective gateway for call termination (VoIP to GSM) and origination (GSM to VoIP).
Product Features of VoIP GSM Gateway:
Multiple access way
·NGN/IMS/PSTN;
·GSM trunk; NC-MG320W supports maximum 16 ports GSM per unit; other serial of VoIP GSM gateway support maximum 64 ports GSM/CDMA/WCDMA.
·E1 port, support ISDN PRI, SS7, R2, V5.2, Q.SIG; (It not only work as VoIP GSM gateway, but also can work as pbx which support E1 and FXS/FXO)
·IP trunk which is based on SIP and IMS;
System Functions
·Rotation of 8 SIM cards;
·Gain for the entire port;
·Selection of DTMF modes;
·Lock SIM card;
·Modification of PIN and IMEI;
·Anonymous calls;
·Sending / receiving SMS;
·Avariable for custom IVR recording;
·Black and white lists;
·Support one number-pass and open API;
·USSD;
·Support automatically selecting networks;
·Support Hotline and BCCH.
Management and maintenance methods
·Local and remote WEB management;
·Local and remote Telnet command line management;
·Console port - super terminal management;
Voice processing technology
·Voice Activity Detection (VAD);
·Comfort Noise Generation (CNG);
·Echo cancellation (Echo Cancellation);
·Dual-tone multi-frequency signals (DTMF) generation / detection;
·Caller ID (Caller ID) generation detection;
·Flexible input / output gain control;
·VoIP protocol support:
-SIP
RFC3326(Reason header in SIP messages)
RFC3372(SIGTRAN and SIP-T)
RFC2327(sdp)
RFC3398(ISUP-SIP Mapping)
RFC3261(sip)
RFC5806(Diversion Indication in SIP)
RFC2833( DTMF )
RFC3362(t.38)
RFC 3261(SIP 2.0)
RFC3204(MIME media types for ISUP and QSIG Objects)
RFC3578(Mapping of ISUP overlap to SIP)
-Codec:G.711 U-Law and A-Law, G.711 Appendix 1, G.723.1 and G.723.1 Annex A, G.729 Annex A and Annex B, G.726,GSM,ARM, ILBC;
-SNMP
Physical Capacity and Specification of Family of VoIP GSM gateway:
| Item | NC-MG320W | NC-MG640W | NC-MG930W | ||
| Band | 850/900/1800/1900MHZ | ||||
| GSM channels | 16 channels | 32 channels | 64 channels | ||
| SIM Cards | 16 SIM | 32 SIM | 96 SIM | ||
| Analog FXS Interface | 32 ports | 64 ports | 192 ports | ||
| FXO Trunk | 32 ports | 64 ports | 192 ports | ||
| E1(PCM) Trunk/ISDN Port | 0 to 4 E1 | 0 to 4 E1 | 0 to 4 E1 | ||
| VoIP IP Channels | 32 | 128 | 128 | ||
| IP Terminals/SIP users | 16 to 1024 | 16 to 1024 | 16 to 1024 | ||
| Ethernet Interface | 2(10/100/1000M Base-T) | ||||
| Console Port | 1 RS232 port | ||||
| Compatibility |
Asterisk, Free switch, 3CX,CISCO, Siemens, AVAYA, Huawei, ZTE, etc. |
||||
| Input Voltage | |||||
| Power | 40W | 80W | 150W | ||
| Telephone Line Transmission Distance (KM) | 5 | 5 | 5 | ||
| Device Dimension (MM) |
480*286*44 (1U) |
|
480*300*88 (2U) |
|
480*300*160 (3.5U) |
| Weight (KG) | 4.5 | 6.8 | 9.5 | ||
| Work Environment | 0℃~50℃, Less 80% |
||||

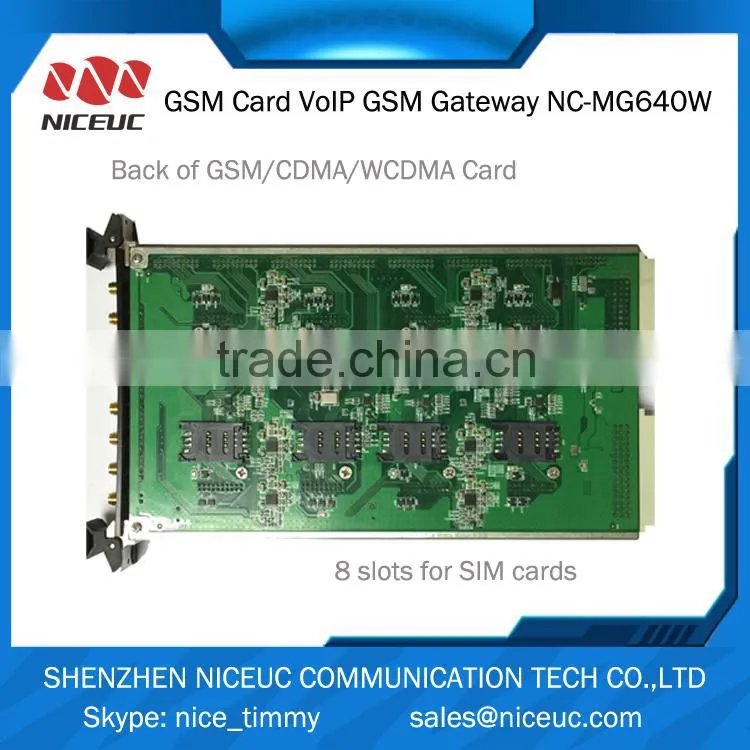

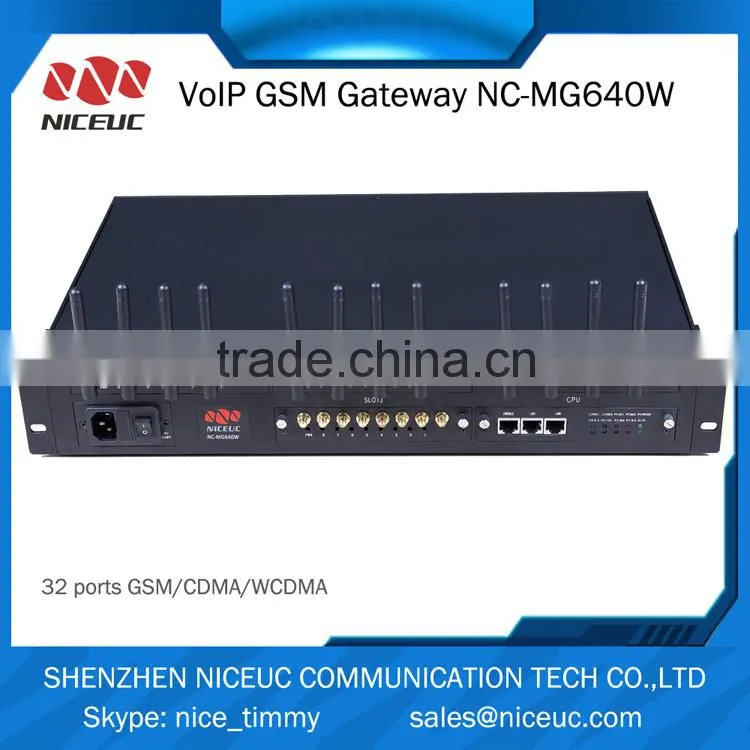

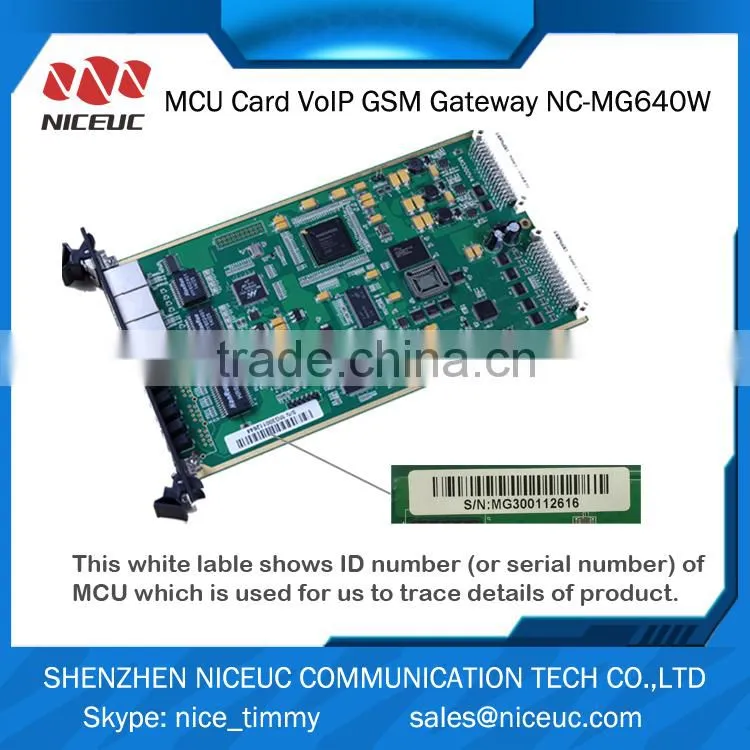

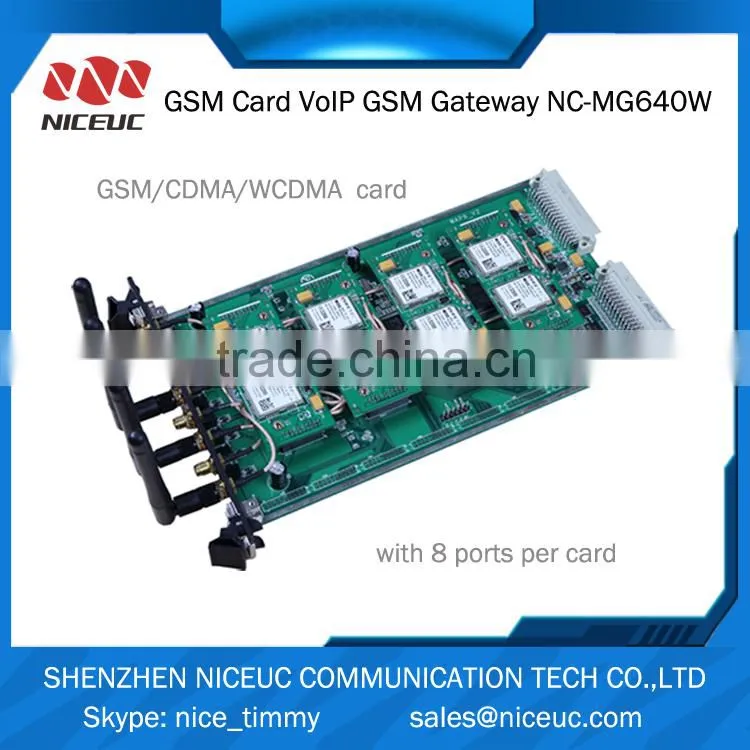

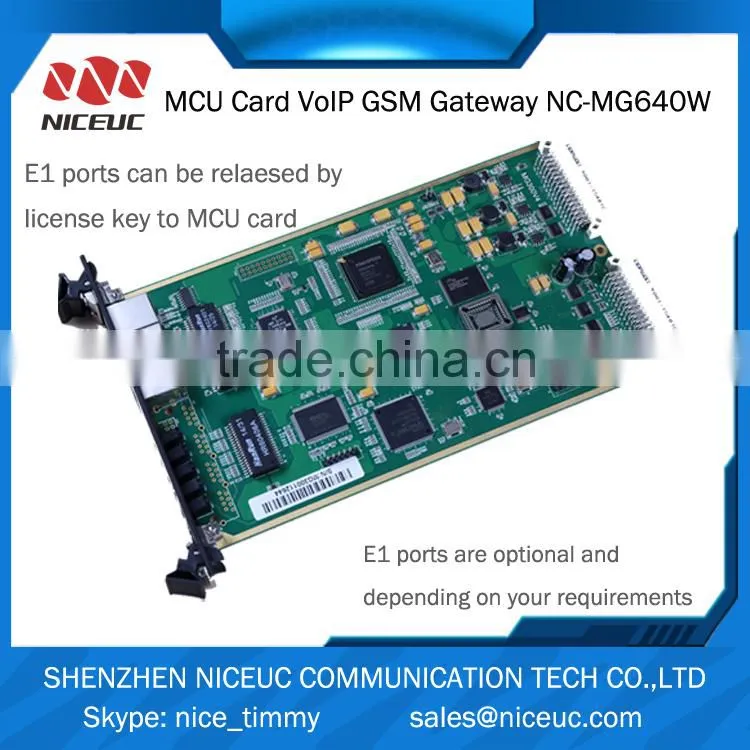

More pictures to show details of GSM VoIP gateway, model number NC-MG640W:
Application Secenerio 1 of GSM VoIP Gateway NC-MG640W:
Application Secenerio 2 of GSM VoIP Gateway NC-MG640W:
Skype:nice_joy WhatsApp:0086-18312568602
Q: Are you trading company or manufacturer ?
A: We are factory in Telecom product from 2000 year.
Q: How long is your delivery time?
A: Generally it is 2 days only, or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: How long is warranty?
A: Usually warranty is one year. If you need, we can provide with 3-years warranty.
Q: How is the technical support?
A: 7*24 hours support for ever.
Q: How can I get a sample?
A: By place an order or pay a rent, then we will ship in 2 days by Express.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
Shenzhen Niceuc Communication Technology CO., LTD, in shenzhen of China.
Niceuc Communication CO., LTD, in HongKong.
A professional manufacturer in VoIP Products from 2000 year.
Now, our main products and services are as follows:
·Signaling Converter: convert any signaling between SS7, ISDN PRI, Q.SIG,V5.2, R2;
·VoIP Media Trunk Gateway: transform between SS7, ISDN PRI, V5.2, R2 and SIP, transfer PSTN to IP;
·IP-PBX: support CTI, SIP, FXO, FXS, E1, E&M, PTT, GSM/CDMA/WCDMA, Recording and Conference;
·PBX/PABX System: support E1, FXO, FXS, CTI, Recording and Conference;
·VoIP GSM Gateway or GoIP GSM gateway:GSM/CDMA/WCDMA to SIP;
·Services: develop special customized service/software/features/products to customers with low cost.
Modular Design, Easy Expansion
All kinds of our products use modular design, it is very easy to expand capacity by inserting modules. At first, you can place an order with small capacity, after testing, if you want to expand, it is no need to change a device, just need to buy some modules, it is very convenient.
All kinds of signalings on E1 ports
We have been producing E1 products from 2001 year. So we have excellent experience on E1 ports, they support all kinds signaling like ISDN PRI, SS7, R2/CAS, Q.SIG, V5.2, DPNSS, etc. Make connection between different signalings or between PSTN and Ethernet.
All-in one interface on one device
With independent self-development ability, all kinds of interfaces can be supported by one device in our company: E1, FXO/FXS, GSM/CDMA/WCDMA, E&M, Magnet, Radio/VHF/PTT, X86/MIPs. You can install your own software into our gateway by X86 or MIPs card.
Be a Manufacturer for 17 Years
We are a professional Manufacturer and national high-tech enterprise in Telecom products from 2000 year.
We can open our registeration number to every customer. Register No.:440301104600108, if you like, you can use this number to trace and check our company and history in Chinese goverment official system.
Self-developed Ability
Independent self-developed ability let us make development according to customer's special request.
So Many Big Customers
So many big customers from all over the world have been buying our products because of stable quality.
As one supplier of Huawei, we will provide you with Huawei's quality by low price. Please feel free to contact us from now, thank you. (WhatsApp:+86-18312568602, Skype: nice_joy)
