PET bottle flakes recycling & washing line
- 16 Set / Sets per Month
- shanghai
- T/T D/P D/A
- Hot Sale Expanded Polystyrene Compactor | Eps Foam Cold Press Recycling Compressing Machine
- New EPS Densifier / Styrofoam Densifier / Waste EPS XPS Foam Cold Press Recycling Machine
- EPE EPP XPS EPS Foam Crusher | extruded polystyrene board XPS board crusher
- EPE EPS EPP XPS Polystyrene Foam Recycling Machine | Plastic Foam Hot Melting Machine
- Solar Panel Aluminum Frame Removing Dismantling Recycling Machine
- Drug Glass Bottle Crusher Medicinal Glass Bottle Crusher for Recycling
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | Wanjin | Model Number: | WJ |
Plastic Type: | PET |
Product Description
Specifications
PET bottle flakes recycling & washing linecapacity:100-2000kg/h
certificate:CE,ISO9001
advantage:Energy-saving,automatic
PET bottle flakes recycling & washing linecapacity:100-2000kg/h
certificate:CE,ISO9001
advantage:Energy-saving,automatic..
Product Description
pet recycling washing line
pet bottle recycling machinery
pet flakes crushing equipment

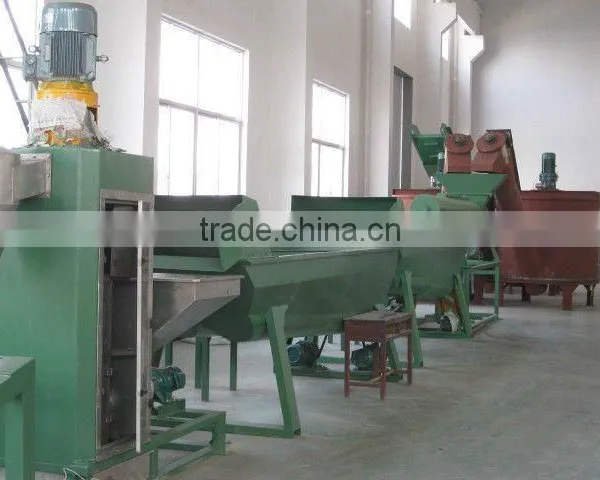

1,This PET bottle crushing, washing and drying production line can wash and recycle waste PET bottle flakes easily,which includes PE/PP labels, PVC labels, paper labels, HDPE cups, glue, mud, beverage leftover, oil, and scrap iron.
2, Equipment at the end of the washing line so that the completely dry flakes can be collected and packed directly after being washed.
3, the whole production line can be designed on the basis of how dirty the flakes are, and make sure of the quality of the final products.
4, Coordinating the production line with follow programmed work (granulating system), and it will make waste and dirty PET bottles to be the PET granule material and in order to producing new PET bottles. The material from this equipment can be put into the granulating machine directly.
5, we can supply production line with capacity from 100kg/h to 3000kg/h.
The whole equipment includes parts:
NO | ITEM | DESCRIPTION | SELECTIVITY |
1 | Prewasher | Remove the solid impurity which are water insoluble, such as hand stone, sand, etc. It can also wash bottles' surface. | Optional |
2 | Bale Breaker | It is used in large capacity recycling line, and bottles are compressed in bale. | Optional |
3 | Belt Conveyer | Including the metal detector. | Necessary |
4 | Label Remover | Label removing efficiency more than 98% | Optional |
5 | Manual Select Plateform | Made according to workers' height, supply a suitable plate for selecting the left lables or some other impurity. | Optional |
6 | Belt Conveyer | Conveying the bottles into crusher. | Necessary |
7 | Crusher | With water, the materials of the blade adopt SKD-II or 9CrSi. It has a function of prewashing too. | Necessary |
8 | Screw Feeder | Conveying the flakes into friction washer. | Optional |
9 | Friction Washer | Scrubbing material in high-speed with water. | Optional |
10 | SCrew Floating Washer | Remove few remand paper, sand, label from material based on different density. | Optional |
11 | Screw Feeder | Conveying the flakes into hot washer. | Necessary |
12 | Hot Washer | High temperature stirring washing with caustic soda. Water can be heated by steam or electric. | Necessary |
13 | Screw Feeder | Same as Item 8. | Necessary |
14 | Friction Washer | Same as Item 9. | Necessary |
15 | Screw Floating Washer | Same as Item 10. | Necessary |
For the more details, please do not hesitate to ask us.
