Product Details
| Condition: | New | CNC or Not: | CNC | Power Source: | Hydraulic |
| Place of Origin: | Jiangsu, China | Brand Name: | YL | Model Number: | MP10-30 |
| Voltage: | 220V/380V | Power(W): | 25kw | Dimension(L*W*H): | 5400*2700*2200 |
| Certification: | ISO | Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

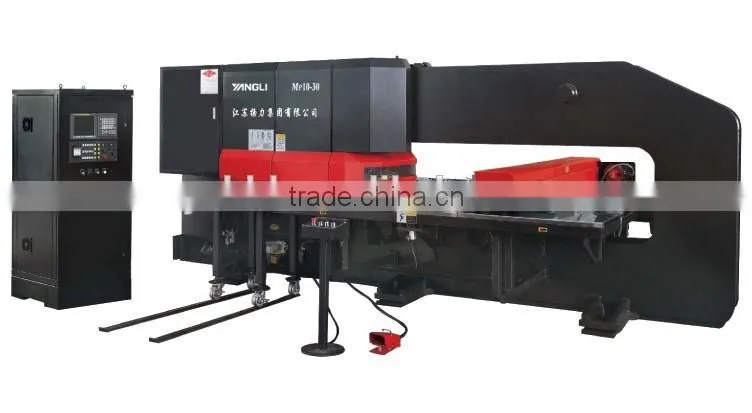

CNC turret punch press, turret punch press, cnc punch machine MP series
MP series CNC turret punch is of enclosure structure (ZL2004 2 0108852.4), which receives tempering treatment. German H+L hydraulic system enjoys reliable performance and low power consumption (11kW).CNC system FANUC Oipis used on this series punch. The turret (ZL 02 2 18211.X) features long sleeve structure and the index station has sectional wheel and worm mechanism. This series punch consists of international pneumatic and electrical components, Imported long travel ballscrews, the linear guideway, worktable with brush, and steel balls auto central Iubrication device and auto floating clamps.
