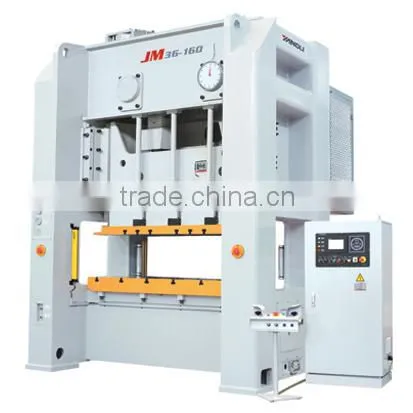

JM36/JMD36 series gantry type double point press with high performance
Welded Steel plate framework with high intensity of machine body.
Double crankshaft pitmen totally eliminating side forces by reverse rotation.
Dry type friction clutch and brake,combined wet multi discs friction clutch and brake is optional.
Equipped with hydraulic overload protecting device.
Eight-side lengthened guide with high precision.
Electric shut height adjustment with digital display.
Equipped with lifting balance cylinder.
Duplex valves imported.
Electric compelling grease lubrication system.
Balancing cylinder adopts manual lubrication system.
One set of blowing device.
Controlled by PLC with international brand.
Buttons, indicators, AC contactors, air circuit breakers and other controlling devices are imported from international brand.
Electronic cam device with intelligent top dead center stop function and several safety function.
Optional air cushion device, NC feeding machine, light curtain and inverter with international brand to fulfill stroke adjustment.
MD36 series equipped with multi pitmen framework, suitable for flat stretching.
JM36-110 |
JM36-160 |
JM6-200 |
JM36-250 |
JM36-315 |
JM36-400 |
JM36-500 |
||||
JMD36-110 |
JMD36-160 |
JMD36-200 |
JMD36-250 |
JMD36-315 |
||||||
Nominal Force |
kN |
1100 |
1600 |
2000 |
2500 |
3150 |
4000 |
5000 |
||
Nominal Stroke |
mm |
5 |
6 |
7 |
8 |
8 |
10 |
10 |
||
Slide Stroke |
mm |
180 |
200 |
250 |
280 |
280 |
280 |
280 |
||
SPM |
Fixed |
min-1 |
50 |
45 |
35 |
30 |
25 |
20 |
18 |
|
Variable |
35-65 |
30~55 |
25-45 |
20-35 |
20-30 |
18-25 |
15-20 |
|||
Max. Die Height |
mm |
400 |
450 |
500 |
550 |
600 |
650 |
700 |
||
Die Height Adjustment |
mm |
90 |
100 |
110 |
120 |
120 |
120 |
120 |
||
Bolster (FB×LR) |
mm |
680×1650 |
760×1850 |
840×2200 |
920×2300 |
1000×2400 |
1100×2500 |
1200×2900 |
||
Bolster Thickness |
mm |
130 |
150 |
170 |
180 |
190 |
200 |
210 |
||
Slide Area (FB×LR) |
mm |
580×1360 |
660×1580 |
740×1850 |
820×2000 |
900×2100 |
1000×2200 |
1100×2600 |
||
Shank Hole (Dia.×Dpth) |
mm |
3 –φ60×70 |
3 –φ60×75 |
3 –φ60×90 |
3 –φ60×90 |
3 –φ70×95 |
3 –φ70×95 |
3 –φ80×100 |
||
Between Columns |
mm |
1750 |
1970 |
2300 |
2500 |
2600 |
2700 |
3100 |
||
|
Side Opening (FB×H) (Up Bolster) |
mm |
650×350 |
700×380 |
800×420 |
860×470 |
900×500 |
1020×550 |
1040×600 |
||
Between Up Bolster & Floor |
mm |
950 |
970 |
1000 |
1100 |
1120 |
1120 |
1150 |
||
Main Motor Power |
kW |
15 |
18.5 |
22 |
30 |
37 |
45 |
55 |
||
|
Cushion (Option) |
Qty. |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
||
Ejecting Force |
kN |
55 |
80 |
100 |
125 |
125 |
125 |
125 |
||
Ejecting Stroke |
mm |
70 |
80 |
90 |
100 |
100 |
100 |
100 |
||
Ejecting Area |
mm |
370×520 |
420×620 |
470×720 |
520×820 |
520×820 |
520×820 |
520×820 |
||
Outline Size (FB×LR×H) |
mm |
2250×2370 ×3500 |
2480×2590 ×3610 |
2680×3120 ×3930 |
2880×3370 ×4280 |
3220×3520 ×4580 |
3310×3640 ×4580 |
3880×4080 ×4750 |
||
Net Weight |
kg |
18000 |
22000 |
31000 |
37000 |
47000 |
51000 |
66000 |
||
