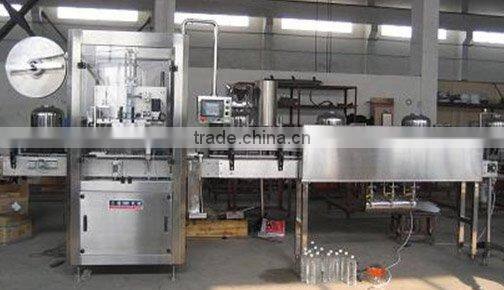

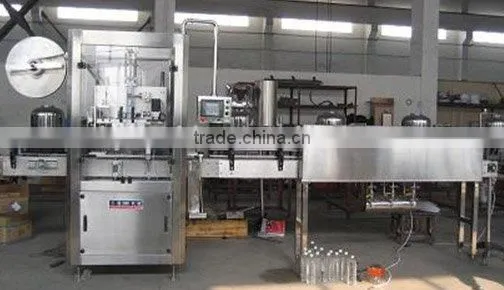

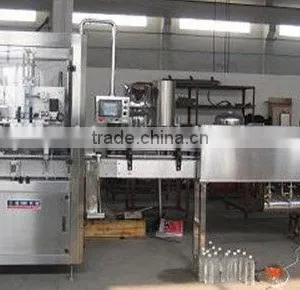

Automatic Sleeve Shrink Labeling Machine
Main Technology
Model |
SM-250B |
Input Power |
3.0KW |
Input Voltage |
3 phase,380/220VAC |
Production Efficiengcy |
250 Bottle/min |
Size of Host Machine |
L2100mm x W850mm x H2000mm |
Applicable Diameter of Bottle Body |
Φ28mm-Φ125mm |
Applicable Length of Lable |
30mm-250mm |
Applicable Thickness of Label |
0.03mm-0.13mm |
Applicable Internal Diameter of Paper Tube |
Free Adjustment |
Features
1.All-cover type stainless steel host machine: the whole machine is waterproof as well as rustproof.
2.Adjustable cutter head: unique cyclotron cut-off, double sided cutting edge with a long service life.
4.Single positioning centre guide pillar: more stable for label delivery.
5.Synchronous bottle divider: a more stable transmission for the bottle.
6.Bottom set label brush: more precision for casting label.
7Label-controlling electric-eye shelf: unique combination of tail and electric-eye to improve the precision for cutting off the membrane materials.
8.Push-button control cabinet: a more humanized operation.
9.Independent feeding material shelf: the position of the material shelf is optional at will.
Electrical Appliance Configuration Specification
It adopts PLC programmable controller, imported servo motor, servo driver, frequency converter and transducer; also, it adopts the positioning module to ensure the casting label precise, rapid and stable.
Applicable Variety Types of Label
Various kinds of bottle types, for example: round bottle, square bottle, flat bottle, curve bottle and cup-shaped, etc.
form
| SM-150B/250B | Technical Parameters | |
| Model | SM-150B | SM-250B |
| Input Power | 1.5KW | 3.0KW |
| Input Voltage | 3 phase,380/220VAC | 3 phase,380/220VAC |
| Production Efficiengcy | 150 (Bottle/min) | 250 (Bottle/min) |
| Size of Host Machine | L2100mm x W850mm x H2000mm | L2100mm x W850mm x H2000mm |
| Applicable Diameter of Bottle Body | 28mm-125mm | 28mm-125mm |
| Applicable Length of Lable | 30mm-250mm | 30mm-250mm |
| Applicable Thickness of Label | 0.03mm-0.13mm | 0.03mm-0.13mm |
| Applicable Internal Diameter of Paper Tube | (Free Adjustment) | (Free Adjustment) |
